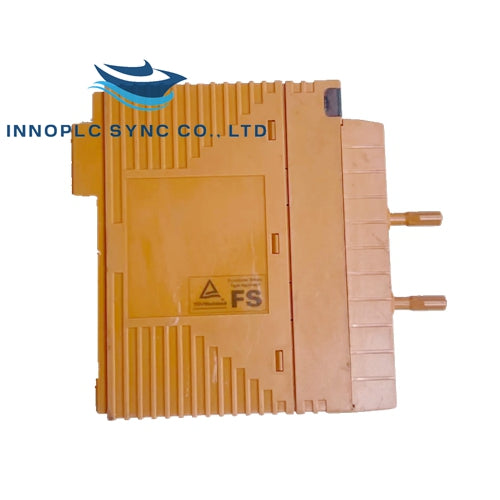

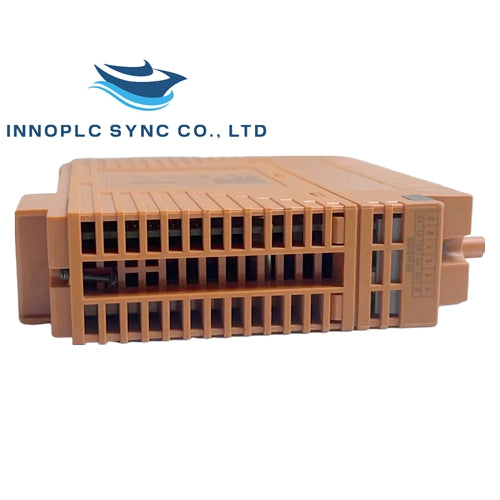

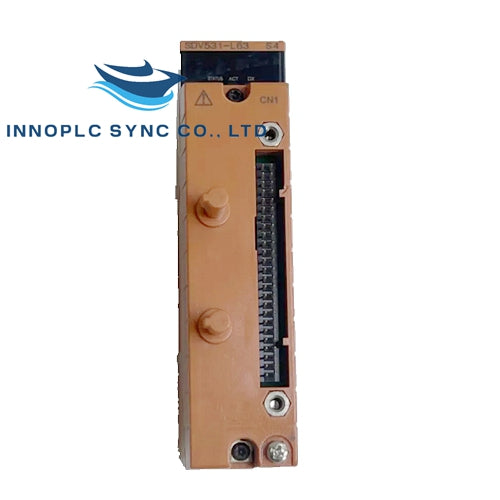

Yokogawa | SDV531-L63 | Digital Output Module

SKU: SDV531-L63

Manufacturer: Yokogawa
Product No.: SDV531-L63
Condition：In stock
Product Type: Digital Output Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

Overview

The Yokogawa SDV531-L63 is a digital output module designed for reliable control and communication in industrial automation applications. This 8-channel module supports 24 V DC operation and features module isolation for enhanced system integrity.

Technical Specifications

Model Information

Model: SDV531
Number of Outputs: 8-channel, module isolation
Suffix Codes:
- -L: Long distance type
- 6: With signal cable interface adapter and no explosion protection
- 3: With ISA Standard G3 and temperature range (-20 to 70 °C)

Electrical Specifications

Output Voltage: 24 V DC
Output Voltage Drop: 1 V maximum
External Power Supply Rating: 24 V DC, 5 A minimum
External Power Supply: 24 V DC +20 %/–10 %
Current Capacity: 5 A
Maximum Leak Current (Output Off Status): 1.6 mA
Output Format: Current source
Maximum Load Current: 0.6 A/output line (4.8 A total for all output lines)
Minimum Load Current: 35 mA
Load Resistance Range: 40 to 685 Ω
Output Response Time: 30 ms maximum
Withstand Voltage: 2 kV AC between output signal lines and system for 1 minute

Current Consumption

Current Consumption:
- 280 mA maximum (5 V DC)
- 140 mA maximum (24 V DC)

Physical Attributes

Weight:
- Approx. 0.28 kg (For pressure clamp terminal block or MIL cable)
- Approx. 0.34 kg (With dedicated signal cable interface adapter)

External Connection

Connection Types:
- Pressure clamp terminal
- MIL cable
- Dedicated signal cable (AKB331, AKB651)
