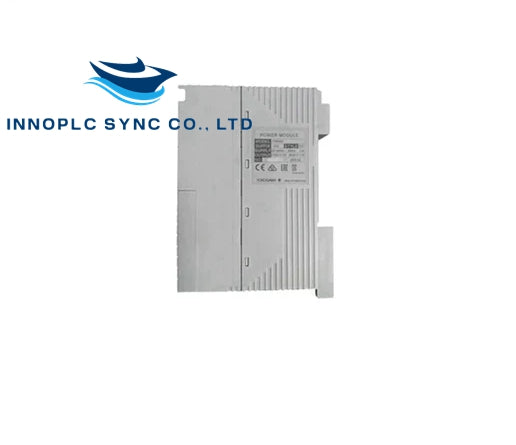

Yokogawa|PW484-51|Power Supply Module

SKU: PW484-51

Manufacturer: Yokogawa
Product No.: PW484-51
Condition：In stock
Product Type: Power Supply Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Product Description

Technical specifications for the Yokogawa PW484-51 Power Supply Module:

Input Power Supply Voltage:
- PW481: 100-120 V AC ± 10%, 50/60 Hz ± 3 Hz
- PW482: 220-240 V AC ± 10%, 50/60 Hz ± 3 Hz
- PW484: 24 V DC ± 10%
Maximum Power Consumption:
- PW481: 200 VA
- PW482: 230 VA
- PW484: 5.5 A
Weight: Approximately 1 kg for all models
Input/Output Interface: Exclusive connector for all models
Installation Compatibility:
- The PW484-51 can be installed in the following units:
  - Field Control Unit (FCU): Compatible with various FCU models (e.g., AFV30D, AFV30S, A2FV50D, A2FV50S, A2FV70D, A2FV70S)
  - FIO Node Unit: Compatible with ANB10D, ANB10S, ANB11D, ANB11S
  - Optical ESB Bus Repeater Unit: Compatible with ANT10U
  - Base Plate: Compatible with A2BE1D and A2BE2D
Dual-Redundant Configuration: By installing 2 identical modules with the same model code, you can achieve dual-redundant power supply.

External Dimensions:

Width: 146.5 mm
Height: 190 mm
Depth: 199.5 mm
Weight: 1 kg

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
