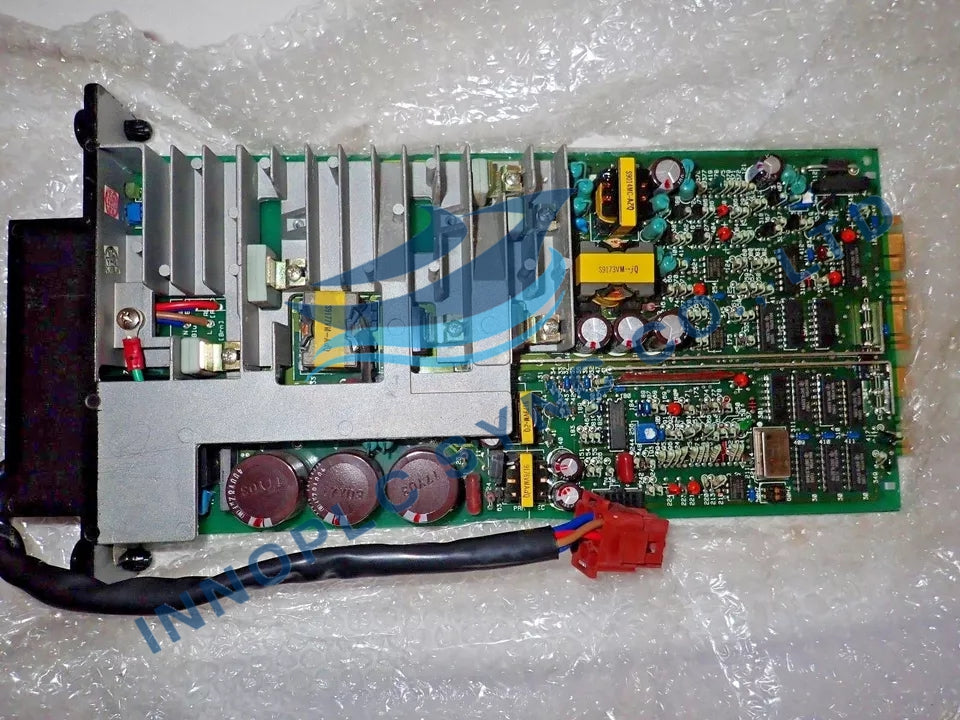

Yokogawa|PS35*A|Power Supply Module

SKU: PS35*A

Manufacturer: Yokogawa
Product No.: PS35*A
Condition：In stock
Product Type: Recorder Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Description
The YOKOGAWA PS35*A is a high-performance power supply module for industrial control systems, designed for stable and reliable power distribution in harsh environments.

Features

Wide input voltage range
High-efficiency power conversion
Overcurrent/overvoltage protection
Compact modular design

Technical Specifications

Input Voltage: 85-264 V AC (47-63 Hz)
Output Voltage: 24 V DC (±1%)
Output Current: 3.5 A (continuous)
Efficiency: 88% (typical at full load)
Ripple Noise: <150 mVp-p
Operating Temperature: -25°C to +70°C
Storage Temperature: -40°C to +85°C
Protection:
- Overcurrent (110-150% of rated current)
- Overvoltage (28-32 V DC)
- Short-circuit protection
Isolation Voltage: 3000 V AC (input-output)
MTBF: 500,000 hours (at 25°C)
Dimensions: 41 × 124 × 117 mm (W × H × D)
Weight: 0.5 kg
