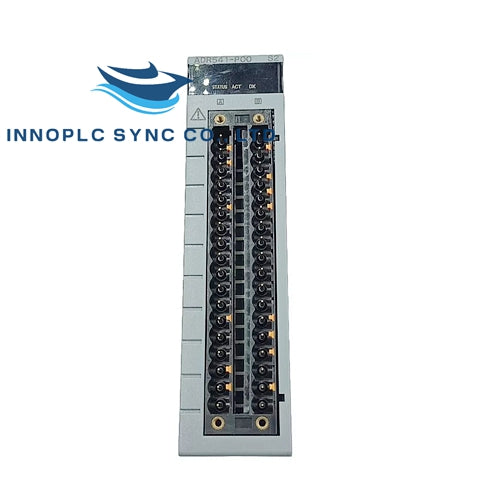

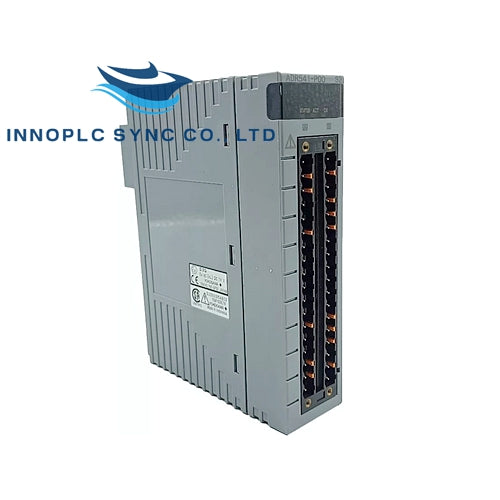

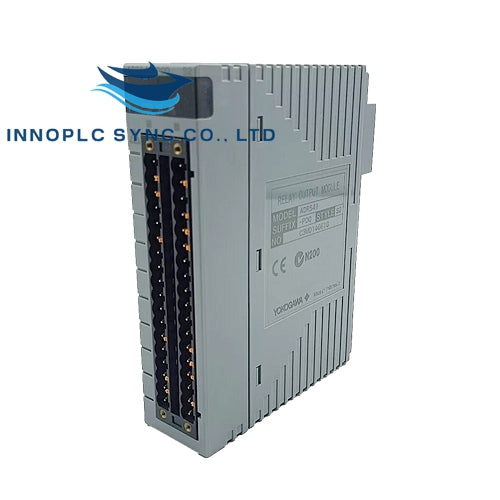

Yokogawa | ADR541-P00 | Relay Output Module
Overview
The Yokogawa ADR541-P00 is a relay output module designed for various industrial automation applications, providing reliable control and signaling capabilities.
Key Specifications
-
Manufacturer: Yokogawa
-
Model: ADR541-P00
-
Type: Relay Output Module
-
Number of Output Channels: 16
-
Rated Applied Voltage:
- 24 to 110 V DC
- 100 to 240 V AC, 50/60 Hz
-
Maximum Load Current:
-
Resistive Load:
- 24 V DC: 2.0 A/channel
- 110 V DC: 0.4 A/channel
- 100 V AC: 2.0 A/channel
- 220 V AC: 2.0 A/channel
-
Inductive Load:
- 24 V DC: 0.6 A/channel
- 110 V DC: 0.1 A/channel
- 100 V AC: 1.0 A/channel
- 220 V AC: 1.0 A/channel
-
Resistive Load:
-
Withstanding Voltage:
- Between output signal and system: 2 kV AC for 1 minute
- Between commons: 1.35 kV AC for 1 minute (common minus (–) side every 8-channel)
-
Functions:
- Status output ON/OFF
- Pulse width output (one-shot pulse width output)
- Time-proportioning output (time-proportioning ON/OFF)
-
Output Response Time:
- 12 ms or less (for status output)
- 20 ms or less (for mixed status and pulse outputs)
-
Pulse Width:
- 40 ms to 7200 s
- Pulse width resolution: 8 ms, with ON/OFF delay added for a maximum of 10 ms
-
Maximum Current Consumption: 780 mA (5 V DC)
-
External Connection: Pressure clamp terminal, Dedicated cable (AKB334)
-
Relay Switching Life: 100,000 operations
-
Standards Compliance:
- Safety standard [CSA]
- EMC standards [C-Tick Marking], [KC Marking]
- Standard for Hazardous location equipment [CSA Non-Incendive]
-
Weight: 0.3 kg
