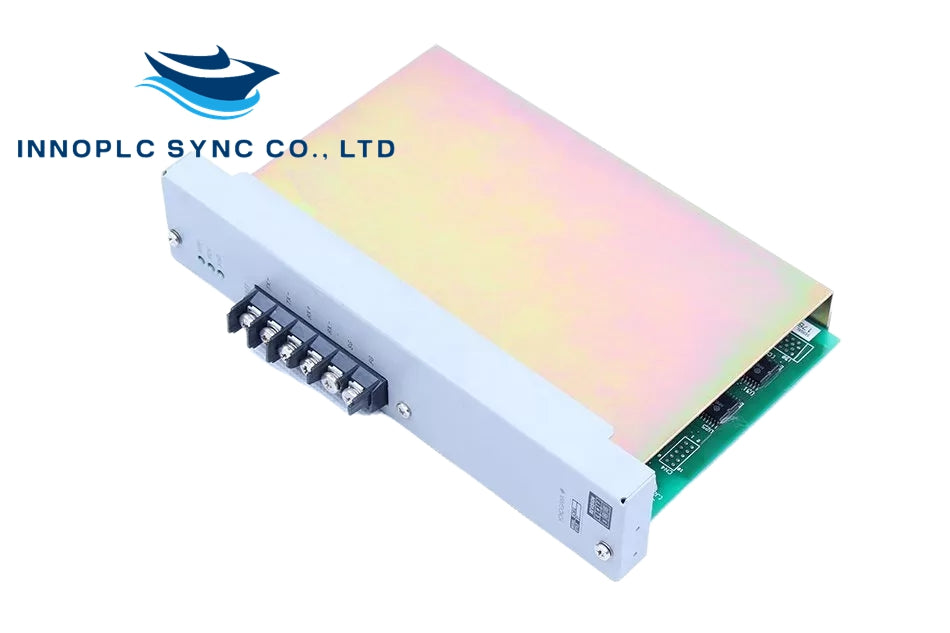

YOKOGAWA| ACM12 |Communication Module

SKU: ACM12

Manufacturer: YOKOGAWA
Product No.: ACM12
Condition：In stock
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

The ACM12 supports RS-422 and RS-485 communication protocols, making it ideal for industrial applications that require robust and efficient communication.

Specifications

Interface: RS-422 or RS-485 (1 port)
Connection Type: Point-to-point, Multipoint
Communication Mode: Half-duplex
Synchronization: Start-stop synchronization
Communication Speed: 1200 / 2400 / 4800 / 9600 / 19200 bps
Transmission Code: ASCII / binary
Character Length: 7 / 8 bit
Stop Bit Length: 1 / 2 bit
Parity Check: None / odd / even (Note: "No parity" cannot be specified at 19200 bps)
Signal Reception After Data Transmission: 1 ms
Distance: Max. 1200 m (Total length)
Installation: Installed in the Communication Module Nest (Cannot be combined with ACF11. ACM11 can be combined with ACM12.)
Wiring: 3 pairs shielded cable or AKB161 (Cable to connect ACM12 with FA500; Max. 100 m)
Connection Method: Connected to the terminal (6 poles) with M4 screws
- ACM11: RS-232C communication module
- ACM21: RS-232C general-purpose communication card
- ACM22: RS-422/RS-485 general-purpose communication card
- ACM71: Ethernet/RS-485 general-purpose module (for PFCS and PFCD)
- ACF11: Fieldbus communication module (for PFCS and PFCD)
- ACP71: PROFIBUS communication moduleCurrent Consumption: 1 A (5.0 V DC)
  Related Models
