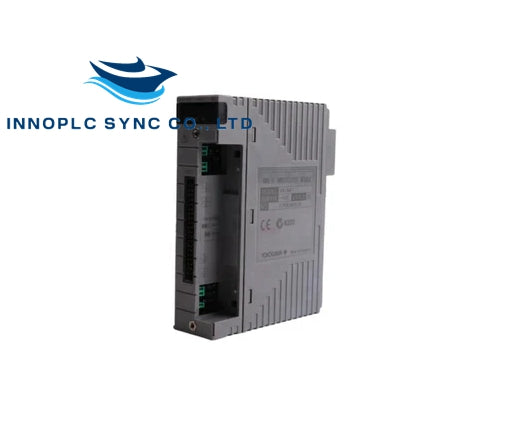

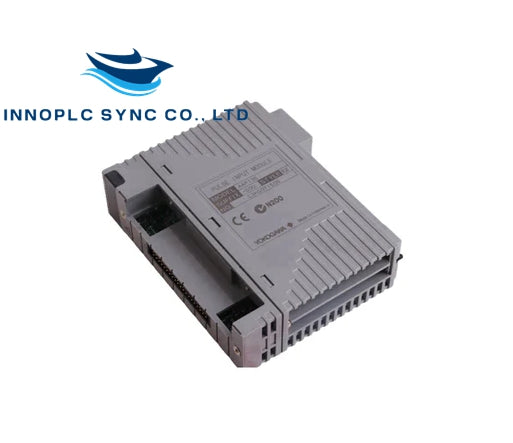

Yokogawa | AAP135-S00 | Pulse Input Module | Isolated Channels

SKU: AAP135-S00

Manufacturer: Yokogawa
Product No.: AAP135-S00
Condition：In stock
Product Type: Pulse Input Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Input Signal:
- 2-wire type: Contact ON/OFF, voltage pulse, current pulse (possible to supply transmitter power supply)
- 3-wire type: Power-supply-type voltage pulse
Input Frequency: 0 to 10 kHz
Withstanding Voltage:
- Between input and system: 500 V AC, for 1 minute
- Between channels: 500 V AC, for 1 minute
Minimum Input Pulse Width: 40 µs
Input Signal Level:
- Contact input: Open (100 kΩ or larger), Close (200 Ω or less)
- Contact capacity:
  - 12 V DC: 15 V DC 15 mA or higher
  - 24 V DC: 30 V DC 30 mA or higher
- Voltage/current pulse input (Current input is converted to voltage.):
  - VH (high level): 3 to 24 V DC
  - VL (low level): -1 to 8 V DC
  - VH-VL (swing value): 3 V or higher
  - Signal source resistance: 1 kΩ or less
Shunt Resistance: Can be selected from none/200/500/1000 Ω. (Open when power is OFF and for the standby side in a dual-redundant configuration)
Pull-up Resistance: 68 kΩ (12 V DC or 24 V DC)
Filter: Filter for eliminating chattering can be set
Data Update Period: 2 ms
Transmitter Power Supply: Can select 24 V DC/12 V DC
Limiter Value:
- 12 V DC ±10 %: 40 mA
- 24 V DC ±10 %: 30 mA
Maximum Current Consumption:
- 300 mA (5 V DC)
- 400 mA (24 V DC)
Weight: 0.3 kg
External Connection: Pressure clamp terminal, KS cable, MIL connector cable
