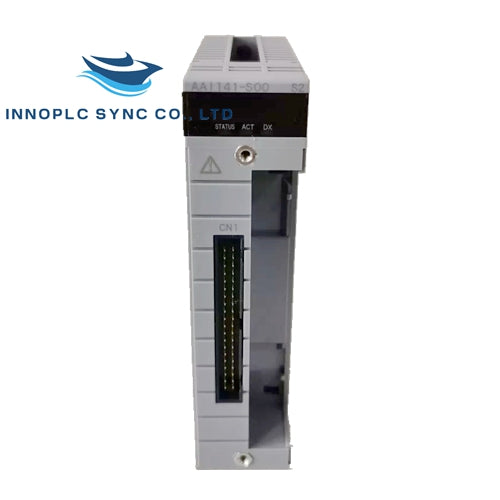

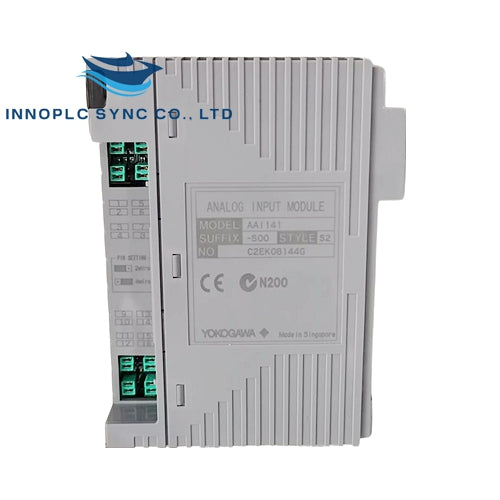

Yokogawa AAI141-S00 | Analog Input Module

SKU: AAI141-S00

Manufacturer: Yokogawa
Product No.: AAI141-S00
Condition：In stock
Product Type: Analog Input Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Overview

The AAI141-S00 is a Yokogawa Analog Input Module with 16 non-isolated input channels designed to measure 4 to 20 mA DC signals. This module supports both 2-wire and 4-wire transmitters and features accurate signal processing with fast data update times, making it ideal for industrial applications requiring reliable analog input.

Input Channels

Number of Input Channels: 16, non-isolated

Input Signal

Signal Type: 4 to 20 mA DC

Allowable Input Current/Voltage

Current: 27 mA
Voltage: ±7.5 V

Input Resistance

Power ON Resistance:
- 400 Ω (at 20 mA)
- 1000 Ω (at 4 mA)
Power OFF Resistance: 500 kΩ or larger

Accuracy

Accuracy: ±16 µA

Data Update

Update Period: 10 ms

Step Response Time

Response Time: 100 ms

Transmitter Power Supply

Supply Voltage: 14.8 V or higher (at 20 mA)

Setting of 2-wire or 4-wire Transmitter

Configuration: For each channel via setting pin

Drift Due to Ambient Temperature Change

Drift: ±16 µA/10 °C

Power and Weight

Maximum Current Consumption:
- 310 mA (5 V DC)
- 450 mA (24 V DC)
Weight: 0.2 kg

External Connection

Connection Types:
- Pressure clamp terminal
- KS cable
- MIL connector cable

HART Communication

HART Communication: Available

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
