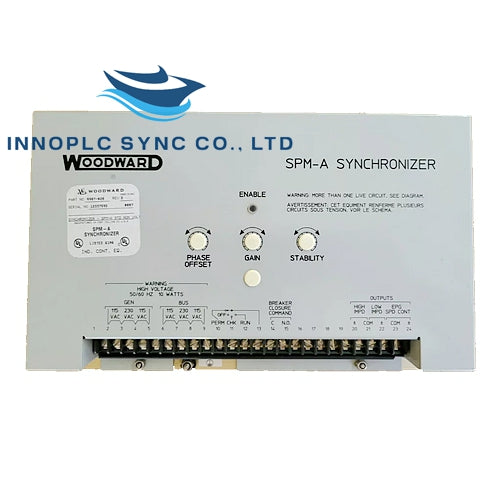

Woodward | 9907-028 | SPM Synchronizer

SKU: 9907-028

Manufacturer: Woodward
Product No.: 9907-028
Condition：In stock
Product Type: SPM Synchronizer
Product Origin: USA
Payment:T/T, Western Union
Weight: 2200g
Shipping port: Xiamen
Warranty: 12 months

Overview

The 9907-028 is an SPM-A Synchronizer designed to help match the speed and phase of a generator with another generator or the utility bus before paralleling. It supports a frequency of 50/60Hz and a phase angle of ±10 degrees, but does not have voltage matching capabilities.

Technical Specifications

Manufacturer: Woodward
Series: SPM-A Synchronizer
Part Number: 9907-028
Frequency: 50/60Hz
Phase Angle: ±10°
Voltage Input: 115/230 VAC RMS
Voltage Matching: No
Voltage Tolerance: ±10%
Power Consumption: Maximum 5W
Weight: Approximately 2.2 kg (5 lbs)
Operating Temperature Range: -45°C to 70°C (-49°F to 158°F)
Optimal Operating Temperature Range: 10°C to 30°C (50°F to 86°F)
Breaker Contact Ratings:
- Resistive loads: 10A at 28VDC, 3A at 120VAC (50/60Hz)
- Inductive loads: 6A at 28VDC, 2A at 120VAC (50/60Hz)
Breaker Close Command Duration: Approximately 1 second
