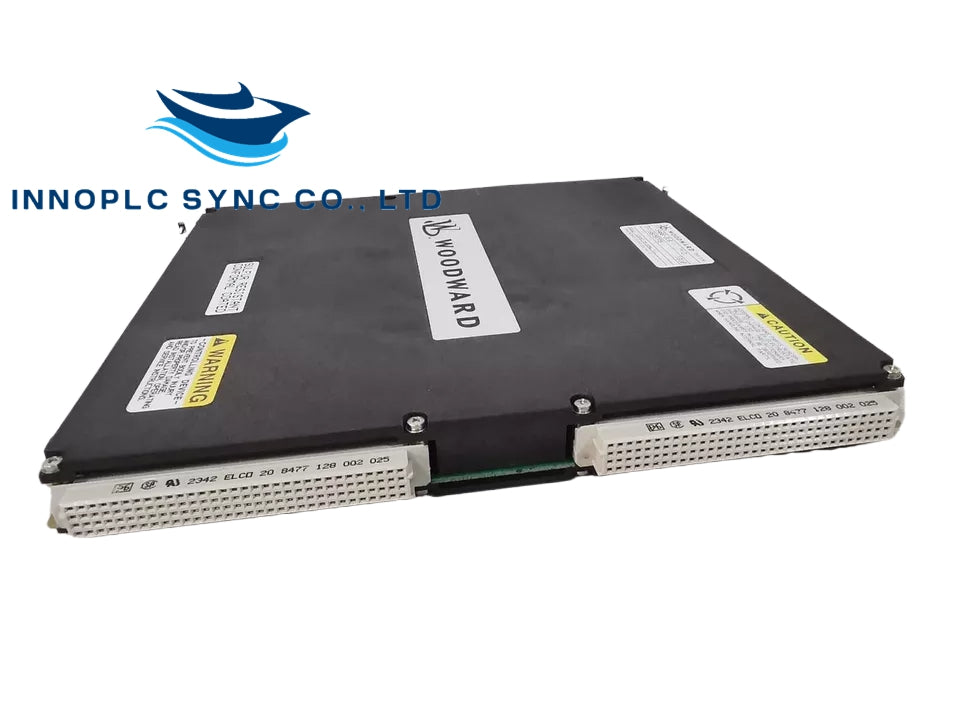

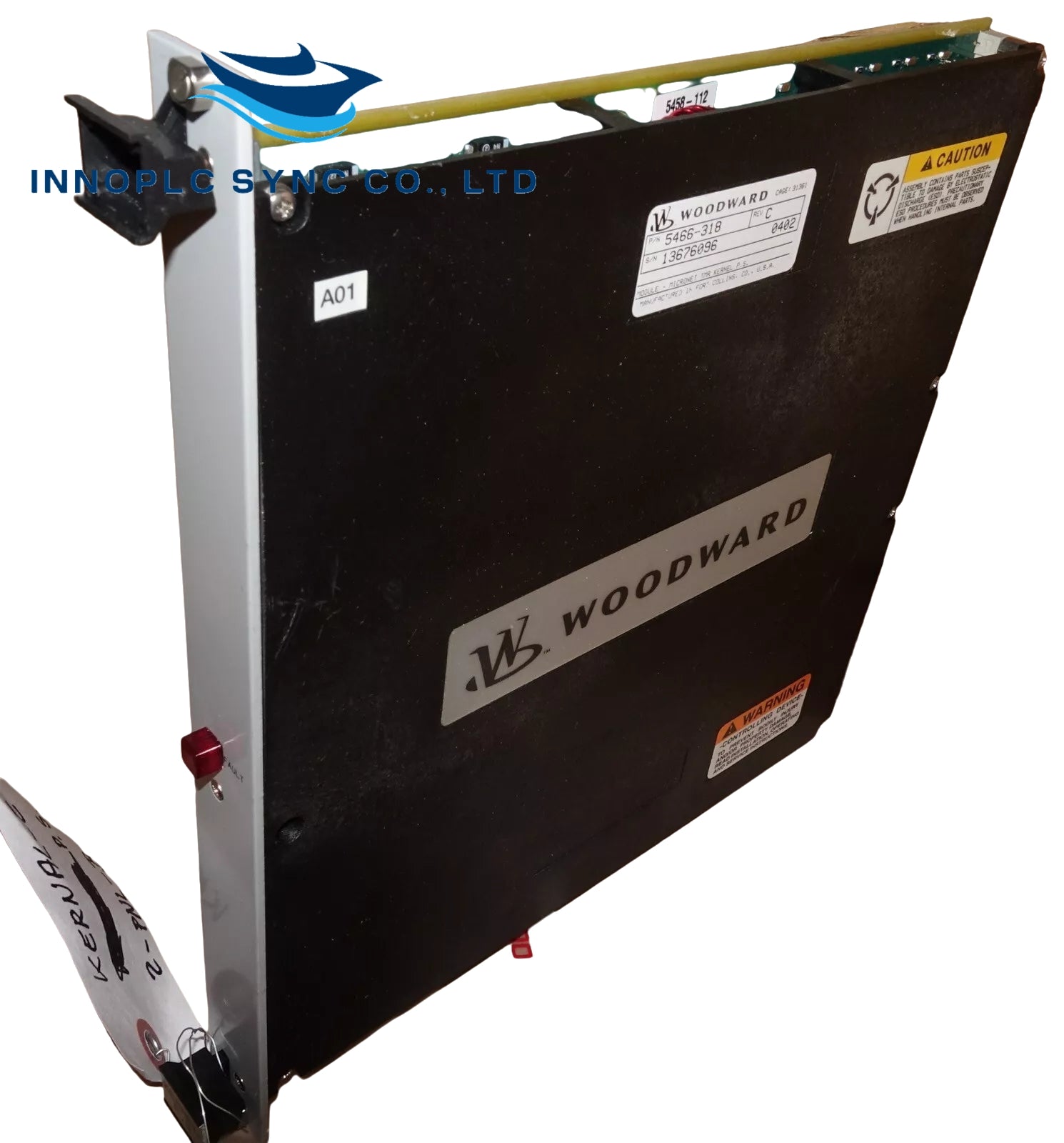

Woodward |5466-318| MicroNet Digital Controller

SKU: 5466-318

Manufacturer: Woodward
Product No.: 5466-318
Condition：In stock
Product Type: MicroNet Digital Controller
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description:

Receives 24 Vdc from the MicroNet main power supplies and regulates it to provide a reliable 5 Vdc output with 10 A current capacity. Essential for powering critical components and generating a 5 Vdc precharge voltage for safe startup sequences.

Features:

Triple Modular Redundant (TMR): Enhances fault tolerance and system reliability.
LED Indicator: Shows power supply health.
Sequential Placement: Must be installed in the first module slot from the left, followed by the Kernel CPU module.

Specifications:

Input Voltage: 24 VDC
Output Voltage: 5 VDC ±5%
Output Current (max): 10 A
Power Consumption: 24 VDC
Chassis: MicroNet TMR
Standards: CE (EMC) and CSA
Operating Temperature: -20°C to +60°C
Dimensions: Approximately 4.5" x 3.5" x 1.5"

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
