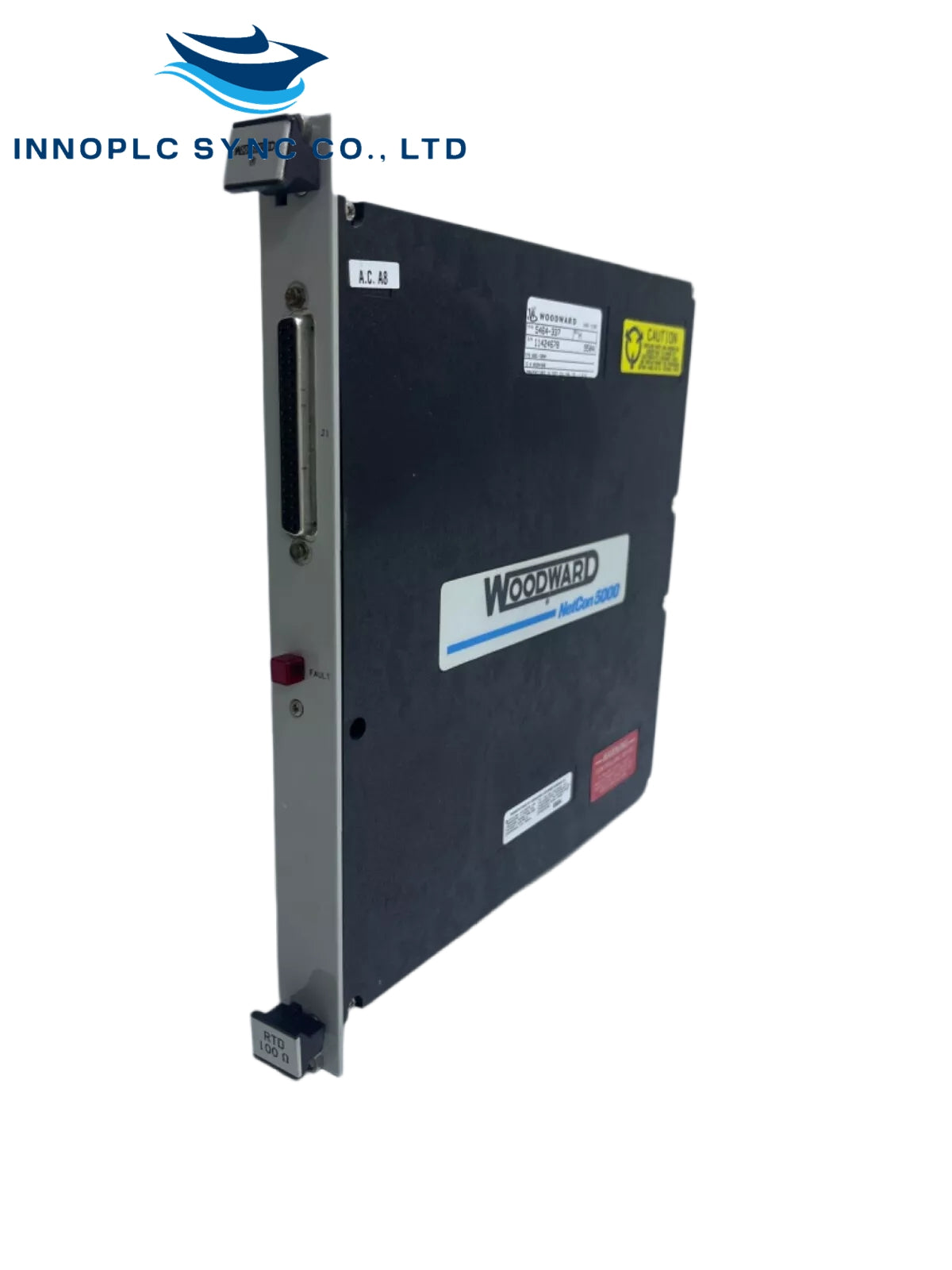

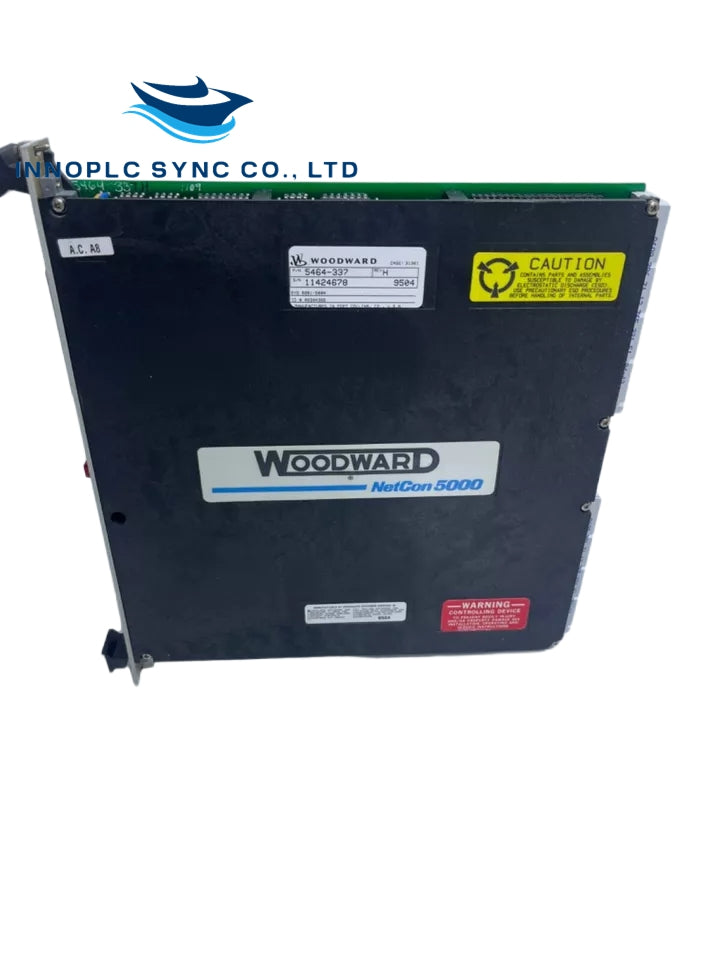

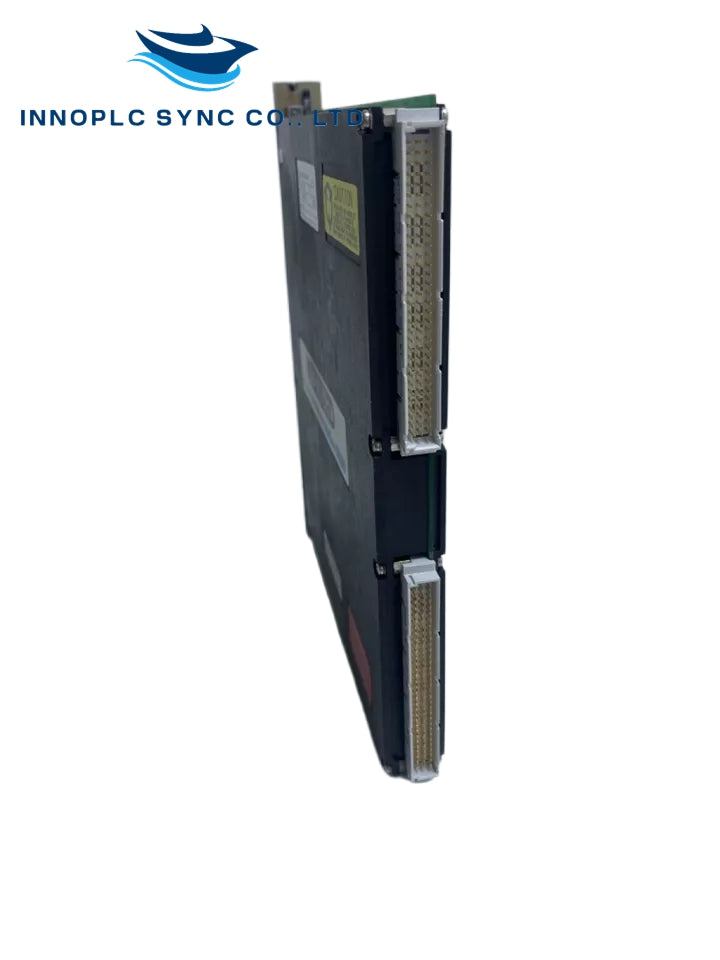

Woodward |5464-654 | Discrete output module

SKU: 5464-654

Manufacturer: Woodward
Product No.: 5464-654
Condition：In stock
Product Type: Discrete output module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

The 5464-654 Discrete Output Module, developed by Woodward, provides discrete outputs to the prime mover from the MicroNet control system. Each module can independently control outputs based on commands from the CPU module. These modules do not require calibration and can be replaced with identical units without modifications. The module supports two different FTM I/O configurations.

Technical Specifications

Model Number: 5464-654
Type: Control module
Power Supply: 18–32 VDC (24 VDC nominal)
Communication Protocol: Compatible with Woodward's LinkNet communication network
Signal Types: Accepts current (4–20 mA) and voltage (0–5 V, 0–10 V) signals
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Mounting Options: Designed for panel or chassis installation
Dimensions: 200 mm x 120 mm x 60 mm
Weight: Approximately 1.5 kg
Environmental Protection: IP66 rated for superior resistance to dust and water
Indicators: Equipped with LED indicators for power, communication status, and fault diagnostics
Communication Interfaces: RS-232 and RS-485 for device connectivity and integration into larger control networks
Applications: Suitable for engine control, generator management, and load sharing in various industrial settings
Certifications: CE and UL certified, meeting international safety and performance standards

Features

Chassis Integration: Modules are inserted into card guides and connected to the motherboard.
Mounting: Held in place by two screws (top and bottom of the front panel) and two handles that, when toggled, move the modules out for disengagement from the motherboard.
Power Source: Relays require a separate 24 Vdc power source, not provided by this module.
Connection: Each module is linked to a Relay module via one low-density discrete cable, which can be daisy-chained to additional module
