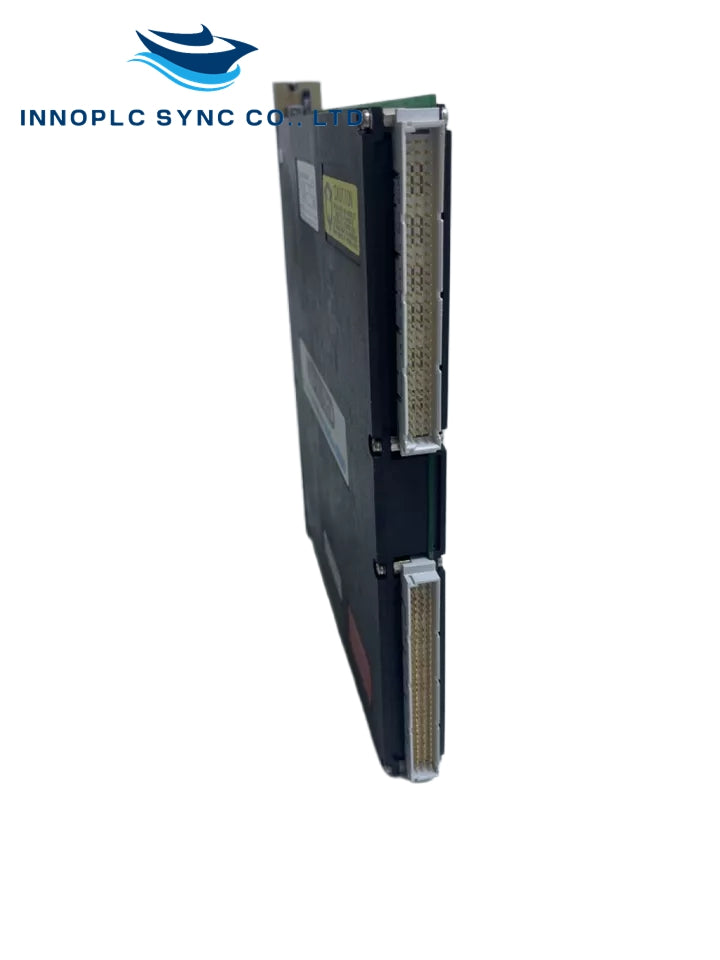

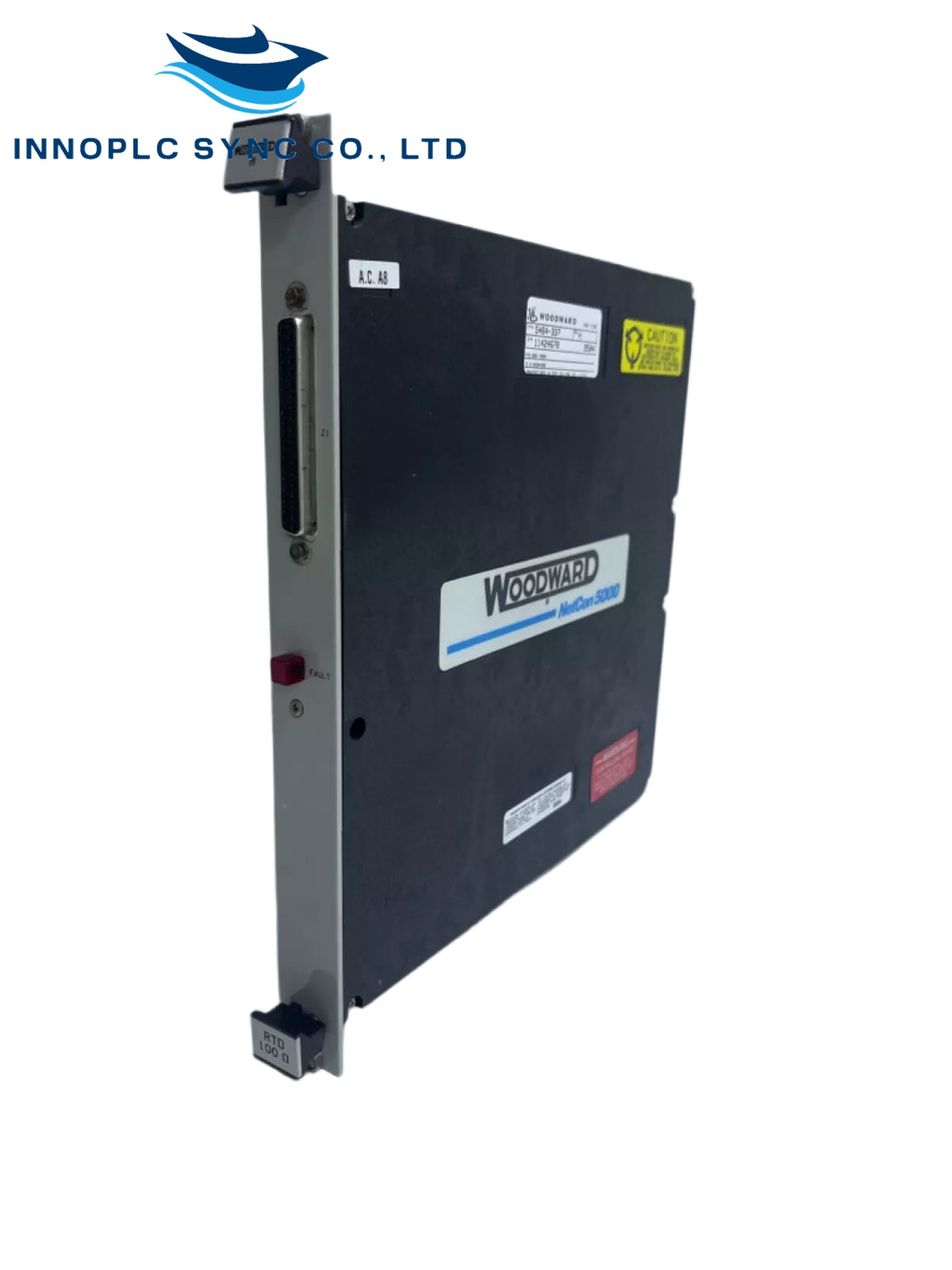

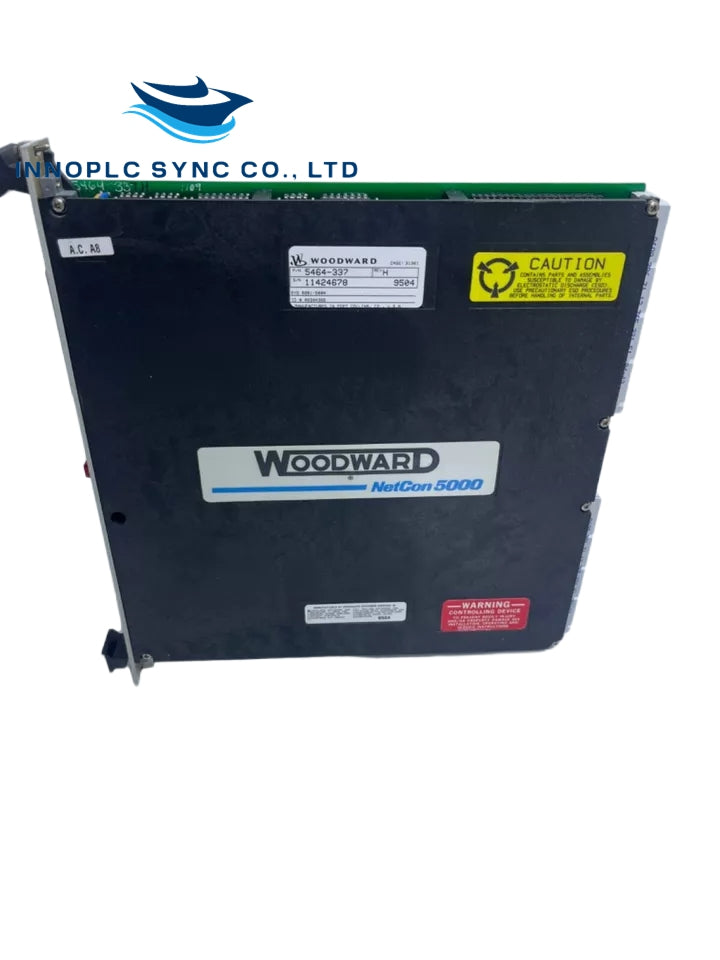

Woodward | 5464-013 | Input Driver Module

SKU: 5464-013

Manufacturer: Woodward
Product No.: 5464-013
Condition：In stock
Product Type: Input Driver Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Specifications

Type: Semi-Insulated Input Driver Module
Manufacturer: Woodward
Compatibility: Works with Woodward's NETCON 5000 system
Input Voltage: 24 VDC nominal
Input Signal Types: Digital (on/off) and optional analog
Output Type: Logic-level output

Features

Semi-Insulated Design: Provides isolation between the input signal and the system, enhancing noise immunity and safety.
Input Driver: Amplifies or converts weak input signals from sensors or other devices for effective use in control systems.
RTD Input: Supports Resistance Temperature Detector (RTD) inputs for precise temperature measurement.

Load Share Function

GCB Condition Monitoring: The module receives GCB status via discrete inputs [DI 08] (terminal 74) and [DI 11] (terminal 77). With a closed GCB and a deactivated unloading generator signal, the unit automatically ramps the generator to a load related to other generators.

Monitoring Functions

Self-Test OK: Relay [R 01] (terminals 41/42)
Alarm: Missing Member on CAN Bus: Relay [R 02] (terminals 43/46)
Alarm: Load Share Monitoring: Relay [R 03] (terminals 44/46)
Alarm: GCB Feedback Monitoring: Relay [R 04] (terminals 45/46)
Tie-Breaker Feedback OK: Relay [R 08] (terminals 53/54）
