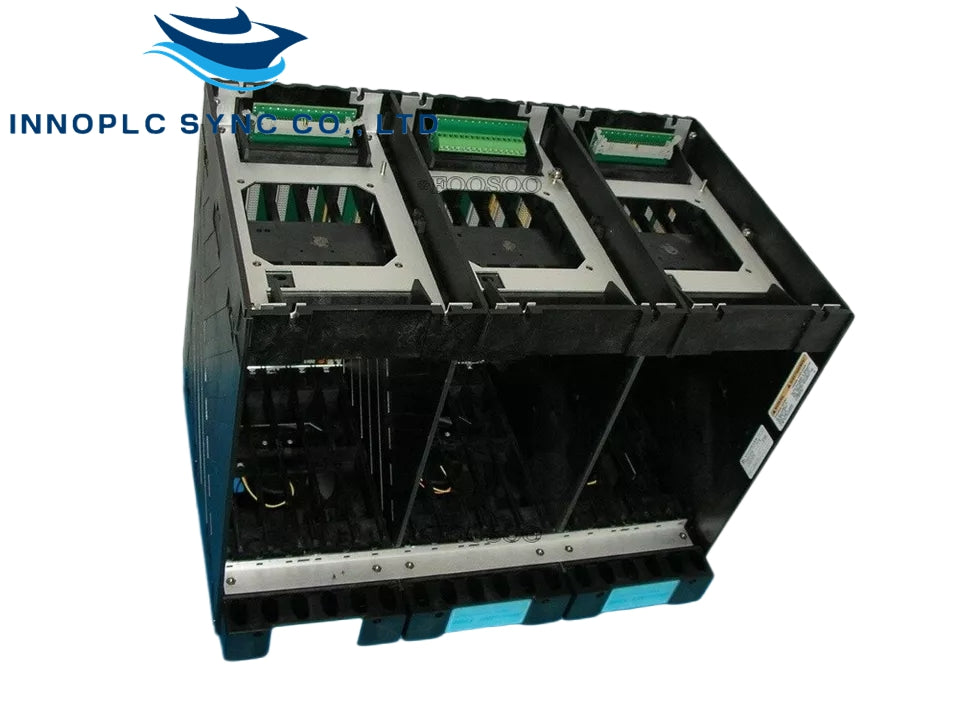

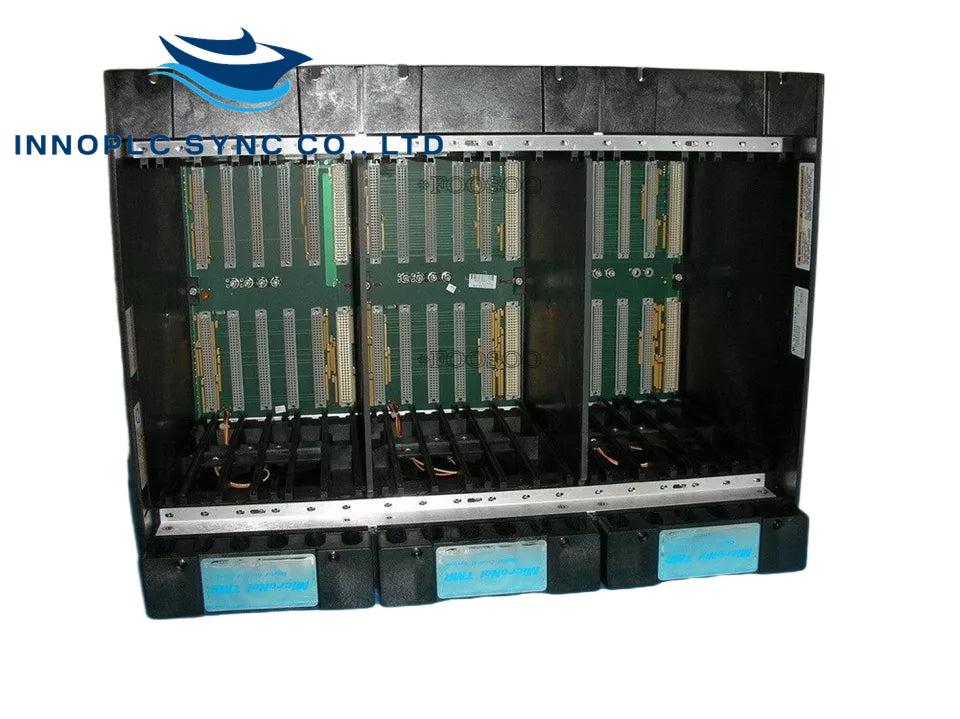

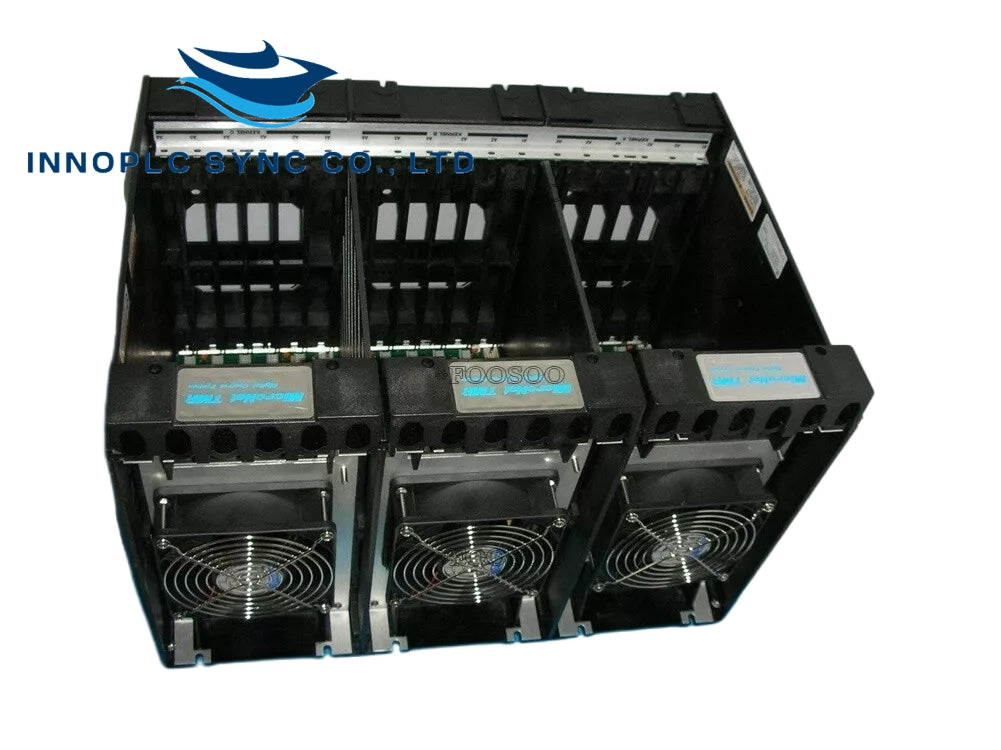

Woodward |5453-279 | MicroNet TMR Chassis

SKU: 5453-279

Manufacturer: Woodward
Product No.: 5453-279
Condition：In stock
Product Type: MicroNet TMR Chassis
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Functional Description

The 5453-279 MicroNet TMR (Triple Modular Redundant) Chassis, developed by Woodward, serves as a central hub for critical system components, including kernel power supplies, central processing units (CPUs), and up to twelve I/O Modules. The chassis supports both TMR5200 and TMR040 processors, offering different expansion and I/O sharing mechanisms. TMR5200 processors enable shared I/O through RTN networks, while TMR040 processors establish dedicated I/O connections using transceivers and cables. This flexibility enhances the robustness and adaptability of TMR systems, catering to various operational requirements.

Technical Specifications

Model Number: 5453-279
Power Supply Voltage: 24 VDC
Current Consumption: 0.4 A (maximum)
Operating Temperature Range: -40°C to +70°C
Input Voltage Range: 18 to 30 VDC
Digital Inputs: 6 configurable digital inputs
Analog Inputs: 2 channels (0-10 V or 4-20 mA)
Digital Outputs: 4 outputs (configurable)
Relay Outputs: 2 relays (rated for 5A at 28 VDC)
Communication Interfaces: RS-232, RS-485
Supported Communication Protocols: Modbus RTU
Protection Features: Overvoltage and reverse polarity protection
Dimensions: 200 mm x 120 mm x 50 mm
Weight: 1.2 kg (2.6 lbs)
Mounting Options: DIN rail or panel mounting

Features

Processor Compatibility: Supports TMR5200 and TMR040 processors
Kernel Power Supplies: Dedicated slots for essential power supply modules
CPU Slots: Accommodates CPUs for critical computations and task management
I/O Modules: Up to twelve slots for handling input and output operations
Expansion Capabilities:
- TMR5200 Processors: Up to three I/O chassis using RTN networks for shared I/O
- TMR040 Processors: Transceiver modules and cables for dedicated I/O connections
System Integration: Facilitates communication with external devices, sensors, and interfaces
Protection: Overvoltage and reverse polarity protection for enhanced reliability
Mounting: DIN rail or panel mounting options for flexible installation

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
