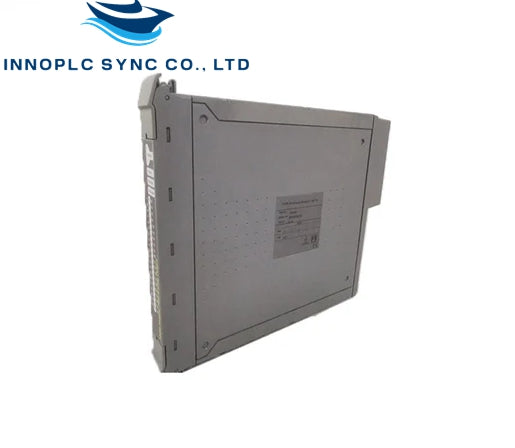

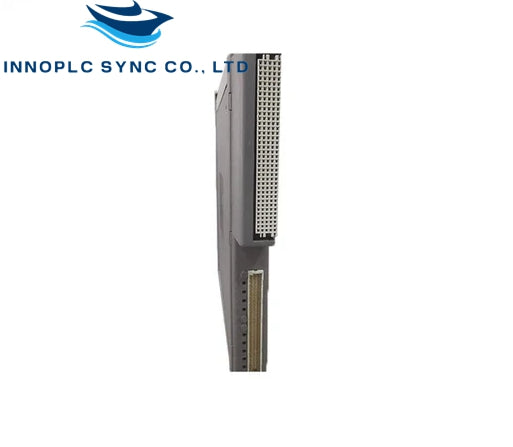

Trusted T8480 | ICS Triplex|TMR Analog Output Module
Manufacture: ICS Triplex
Model: T8480
Ordering Information: T8480
Catalog: Trusted TMR System
Description: ICS Triplex T8480 Trusted TMR Analogue Output Module
Origin: United States (US)
HS Code: 85389091
Dimensions: 16 cm x 16 cm x 12 cm
Weight: 0.8 kg
Key Features
- Output Capacity: 40 Triple Modular Redundant (TMR) output points per module.
- Diagnostics: Comprehensive, automatic diagnostics and self-test, including stuck on and stuck off failure detection.
- Line Monitoring: Automatic line monitoring detects open and short circuit failures in field wiring and load devices.
- Isolation Barrier: 2500 V impulse withstand opto/galvanic isolation barrier.
- Over-current Protection: Automatic per-channel over-current protection, eliminating the need for external fuses.
- SOE Reporting: On-board Sequence of Events (SOE) reporting with 1 ms resolution.
- Hot-Replacement: Module can be hot-replaced on-line using dedicated Companion Slot or SmartSlot configurations.

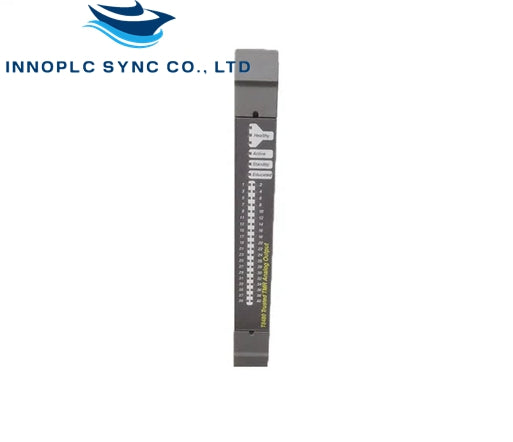

- LED Indicators: Front panel LEDs for output status and module health.
- Certification: TüV Certified IEC 61508 SIL 3.
- Power Groups: Outputs are powered in isolated groups of eight, known as Power Groups (PG).
Functional Architecture
-
Field Termination Unit (FTU)
- Connects three Field Interface Units (FIUs) to a single field interface.
- Provides Group Fail Safe Switches, signal conditioning, and EMI/RFI filtering.
-
Field Interface Unit (FIU)
- Contains circuits for interfacing with field I/O signals.
- Manages output switch structures and monitors external I/O supply voltage.
-
Host Interface Unit (HIU)
- Interfaces with the Inter-Module Bus (IMB) and manages power distribution.
- Contains three independent slices (A, B, and C) for fault containment and high-speed communications.
Operational Features
- The T8480 module supports fault tolerance through its TMR architecture, ensuring reliable operation even in the event of component failures.
- On-board diagnostics continuously monitor the health of the module, enhancing system reliability.
- The module's design allows for real-time data processing and local diagnostics, contributing to efficient system performance.
Application Considerations
- Usage: Ideal for applications requiring high reliability and fault tolerance, particularly in critical control systems.
- Hazardous Areas: Not approved for direct connection to hazardous areas; must be used with Intrinsic Safety Barrier devices.
The ICS Triplex T8480 module is designed to meet the rigorous demands of modern industrial control applications, ensuring safety and operational integrity through advanced technology and robust architecture.
