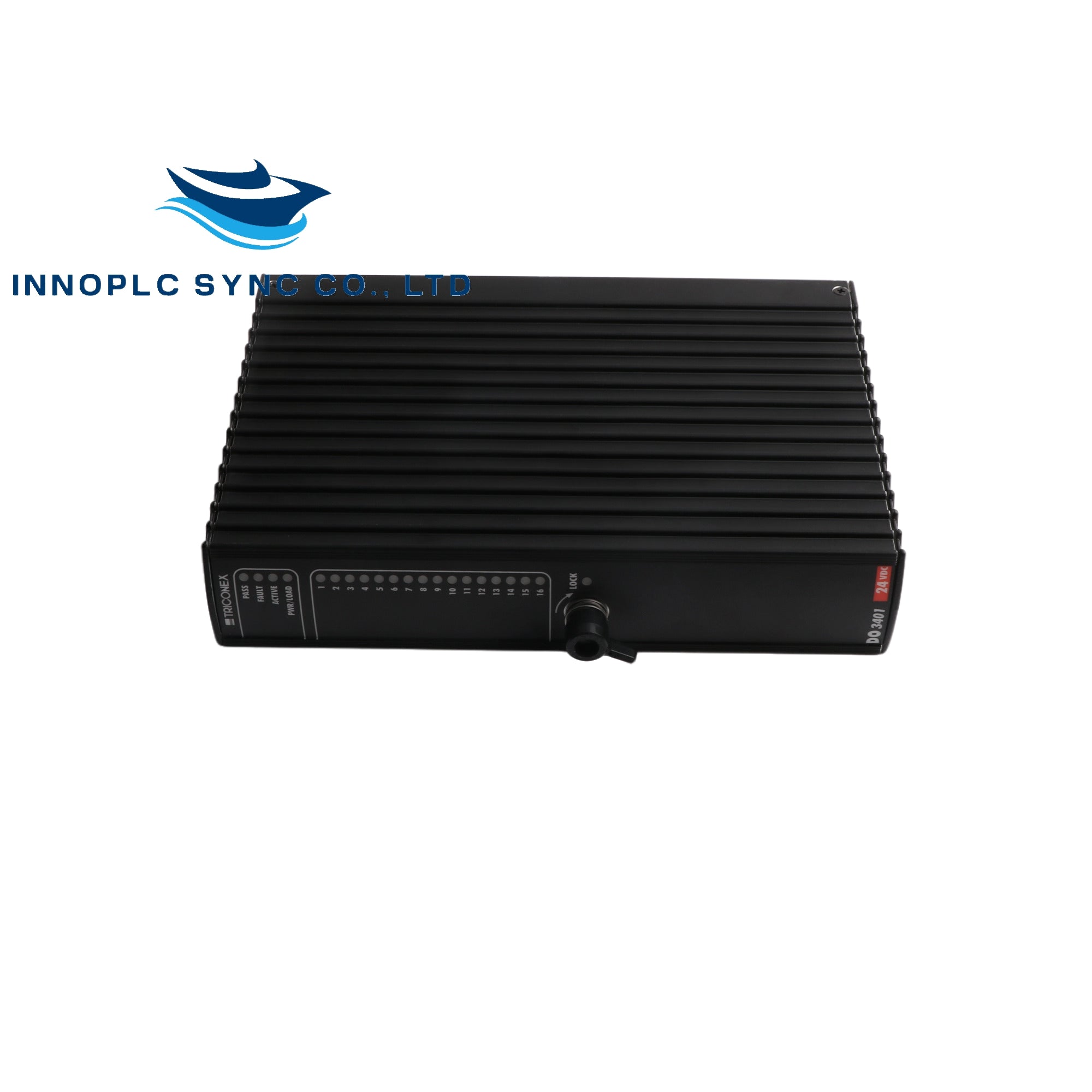

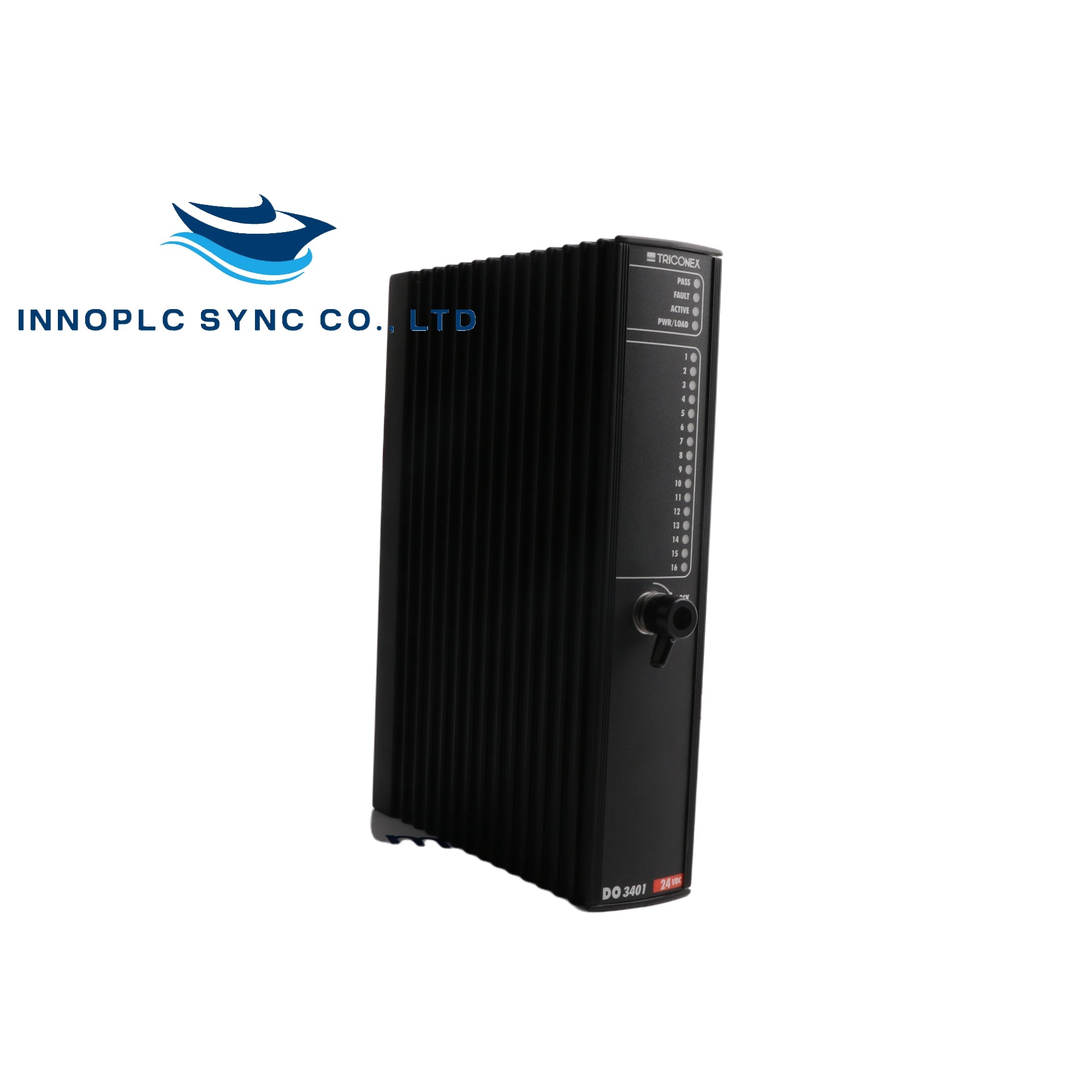

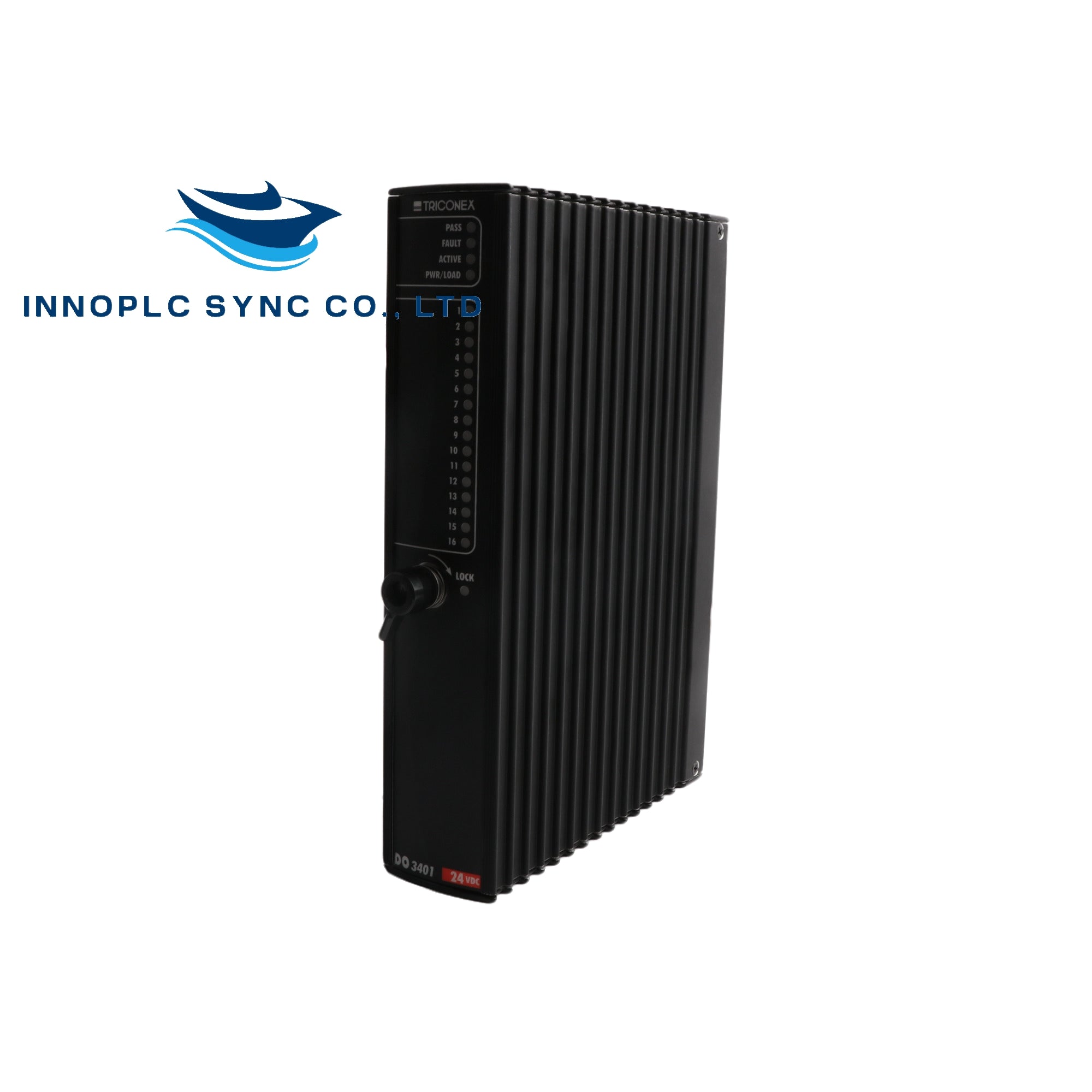

Triconex|DO3401|Digital Output Module
SKU: DO3401

  • Manufacturer: Triconex

  • Product No.: DO3401

  • Condition：In stock

  • Product Type: Digital Output Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • Dimensions: 16cm * 16cm * 12cm
  • Weight: 0.8kg
  • TMR Digital Output Modules:
    • Functionality: Receives output signals from the main processors on each of three channels.
    • Voting Mechanism: Each set of three signals is voted by special quadruplicated output circuitry on the module, producing one voted output signal that is passed to the field termination.
    • Redundancy: Quadruplicated voter circuitry provides multiple redundancy for all critical signal paths, ensuring safety and maximum availability.
    • Self-Verification: Each TMR digital output module includes a voltage-loopback circuit to verify the operation of each output switch independently of the presence of a load and to detect latent faults.
    • Alarms:
      • LOAD/FUSE Alarm Indicator: Activated if the detected field voltage does not match the commanded state of the output point.
      • Fault Indicator: Activated if any diagnostic on any channel fails, indicating a channel fault but not a module failure.
    • Diagnostics: Ongoing diagnostics are performed on each channel and circuit. Any failure activates the Fault indicator and the chassis alarm signal.
    • Hot-Spare Capability: Supports hot-spare capability.
    • External Termination Panel (ETP): Requires a separate ETP with a cable interface to the Tricon backplane.
    • Installation: Mechanically keyed to prevent improper installation in a configured chassis.
    • Field Power: Designed to source current to field devices, requiring field power to be wired to each output point on the field termination.
