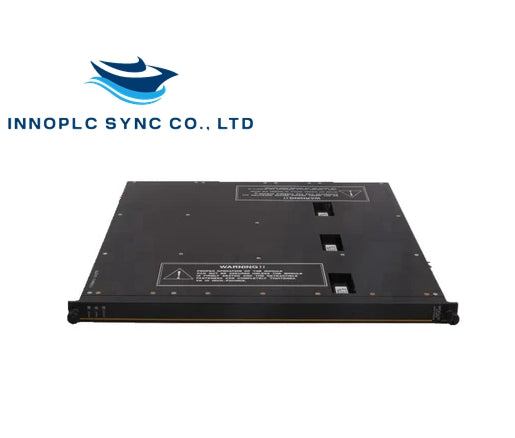

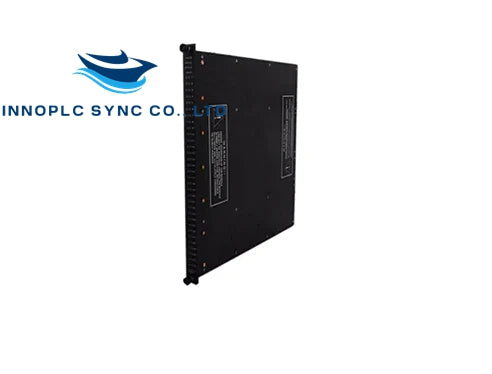

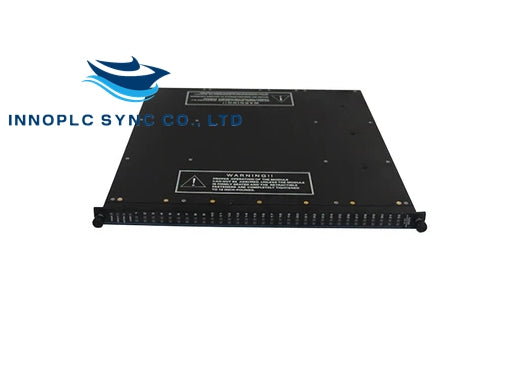

Triconex | 3503E | Digital Input Module
Specifications
| Feature | Details |
|---|---|
| Manufacturer | Invensys Triconex |
| Model | TMR Digital Input Module |
| Ordering Information | 3503E |
| Catalog | Tricon Systems |
| Description | Invensys Triconex 3503E TMR Digital Input Module |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm x 16cm x 12cm |
| Weight | 0.8kg |
TMR Digital Input Modules
Each TMR digital input (DI) module has three isolated input channels that independently process all data input to the module. A microprocessor on each channel scans each input point, compiles data, and transmits it to the main processors upon demand. Input data is voted at the main processors just prior to processing to ensure the highest integrity. All critical signal paths are 100 percent triplicated for guaranteed safety and maximum availability.
Signal Conditioning and Diagnostics
Each channel conditions signals independently and provides optical isolation between the field and the Tricon. All TMR digital input modules sustain complete, ongoing diagnostics for each channel. Failure of any diagnostic on any channel activates the module Fault indicator, which in turn activates the chassis alarm signal. The module Fault indicator points to a channel fault, not a module failure, and the module is guaranteed to operate properly in the presence of a single fault.
Stuck-ON Detection and Hot-Spare Capability
Models 3502E, 3503E, and 3505E can self-test to detect stuck-ON conditions where the circuitry cannot tell whether a point has gone to the OFF state. To test for stuck-ON inputs, a switch within the input circuitry is closed to allow a zero input (OFF) to be read by the optical isolation circuitry.
All TMR digital input modules support hot-spare capability and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed to prevent improper installation in a configured chassis.
