TK-3E | Bently Nevada | Electric Driven

SKU: TK-3E

Manufacturer: BENTLY NEVADA
Product No.: TK-3E
Condition：In stock
Product Type: Electric Driven
Product Origin: USA
Payment:T/T, Western Union
Weight: 5220g
Shipping port: Xiamen
Warranty: 12 months

Overview

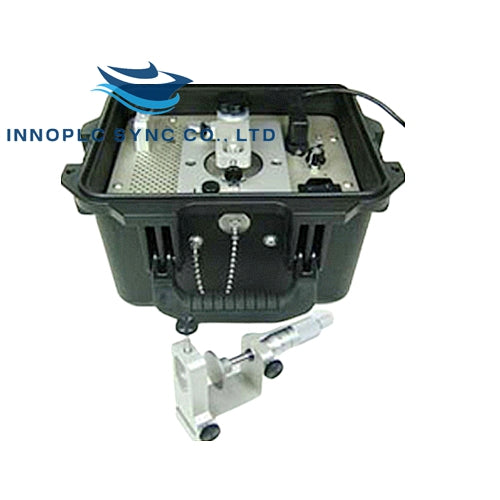

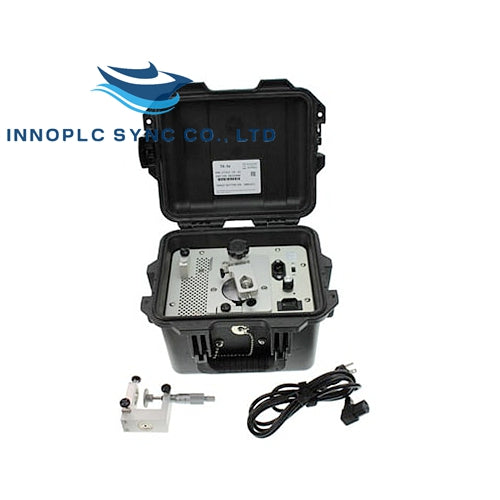

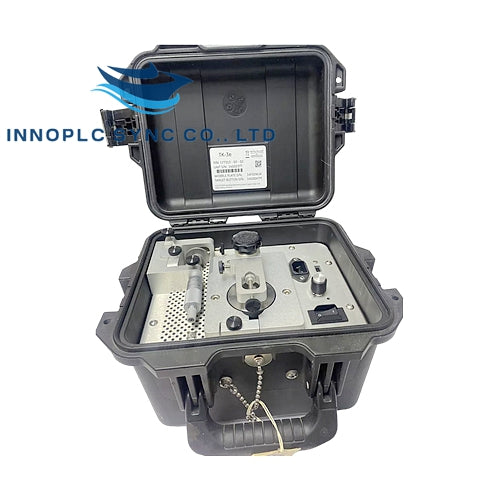

TK-3E by Bently Nevada is an electric-driven vibration system designed for precise monitoring and control, with both electric and air-driven capabilities.

Power Requirements

Electric: 95-125 Vac, 50/60 Hz, 1A minimum
Electric: 190-250 Vac, 50/60 Hz, 1A minimum
Air: 90 psi (6.2 bar) maximum

Wobulator Range

Vibration Amplitude Range: 50 μm to 254 μm (2 to 10 mils) peak-to-peak
Maximum Speed:
- Electric: 0 to 5000 cpm ± 1000 cpm
- Air: 0 to 5000 cpm ± 1000 cpm

Spindle Micrometer Range

Range: 0 – 25.4 mm (0 – 1000 mils)

Target

Button and Wobble Plate: AISI 4140 Alloy Steel

Dimensions and Weight

Height: 195 mm (7.68 inches)
Width: 299 mm (11.8 inches)
Depth: 248 mm (9.76 inches)
Weight: 5.22 kg (11.5 lb)

Environmental Conditions

Operational Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature Range: -18 °C to 65 °C (0 °F to 150 °F)
Humidity: 95% Non-Condensing
Exposure: Designed to meet IP54 for dust and water exposure (closed)
