SNB10D-425/CU2T| Yokogawa|Safety Node Unit

SKU: SNB10D-425/CU2T

Manufacturer: Yokogawa
Product No.: SNB10D-425/CU2T
Condition：In stock
Product Type: Safety Node Unit
Product Origin: Japan
Payment:T/T, Western Union
Weight: 2300g
Shipping port: Xiamen
Warranty: 12 months

Description

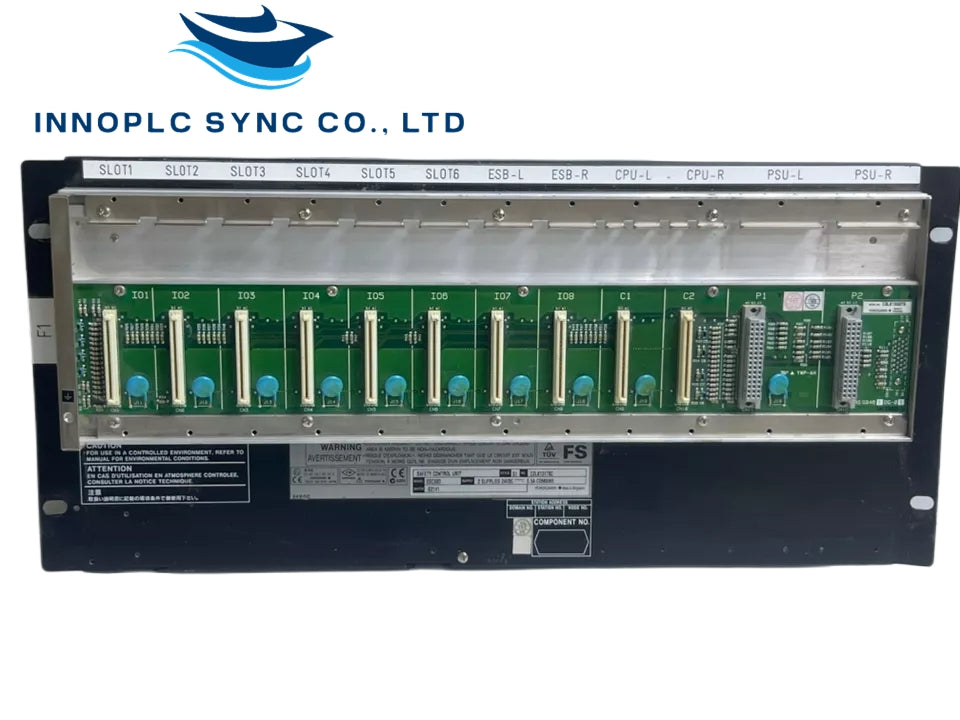

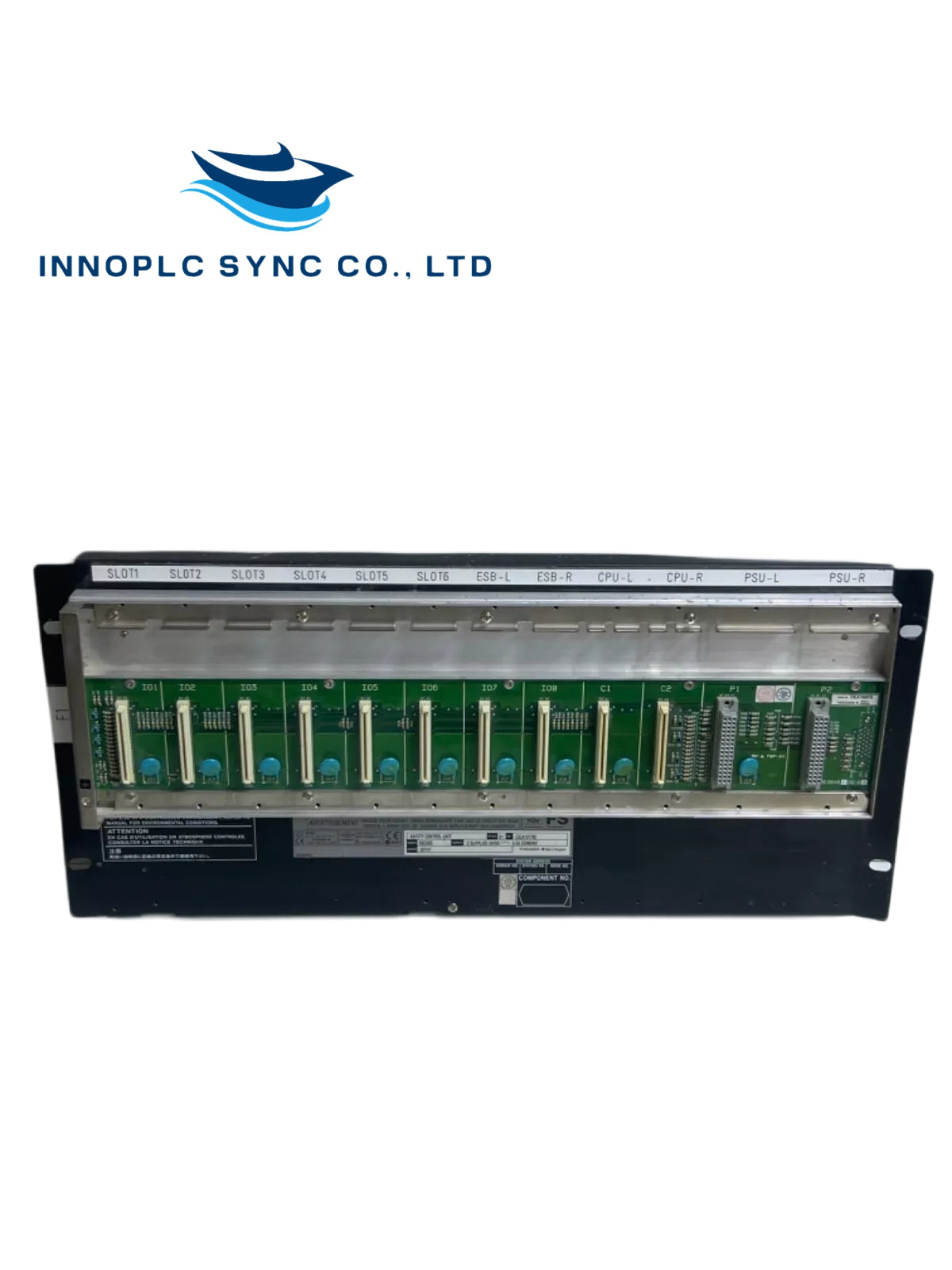

The SNB10D-425/CU2T is a safety node unit (rack-mountable type) designed for use in Yokogawa's ProSafe-RS safety instrumented systems. It serves as an interface to transmit analog input signals and contact signals from the field to the safety control unit via an ESB bus and supplies power to I/O modules.

Features

High Reliability: Ensures stable and continuous operation in safety-critical applications.
Interface Function: Transmits analog input and contact signals from the field to the safety control unit.
Power Supply: Supplies power to I/O modules.
Compact Design: Fits easily into existing control systems.
Wide Operating Temperature Range: Suitable for various environmental conditions.
Easy Installation: Mounts easily on a DIN rail.

Technical Specifications

Part Number: SNB10D-425/CU2T
Connectable Safety Node Units:
- Up to 13 units with S2SC70S/S2SC70D/SSC60S/SSC60D safety control units using SEC402 ESB bus coupler module.
- Up to 9 units with safety control units using SEC401 ESB bus coupler module.
Power Supply Voltage:
- 100 to 120 V AC, 50/60 Hz
- 220 to 240 V AC, 50/60 Hz
- 24 V DC
Power Consumption:
- 100 to 120 V AC: 200 VA
- 220 to 240 V AC: 230 VA
- 24 V DC: 5.5 A
Weight: Approx. 5.9 kg
Mounting Method: Rack mounting with four M5 screws, insulation bushes included.
Operating Temperature: -10°C to +55°C
Storage Temperature: -40°C to +85°C
Humidity: 5% to 95% RH (non-condensing)
Dimensions: Height: 482.6 mm, Width: 37.75 mm, Depth: 205 mm
Conformity Standards: Refer to "ProSafe-RS Standards Compliant Models" (GS 32P01B60-01EN)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
