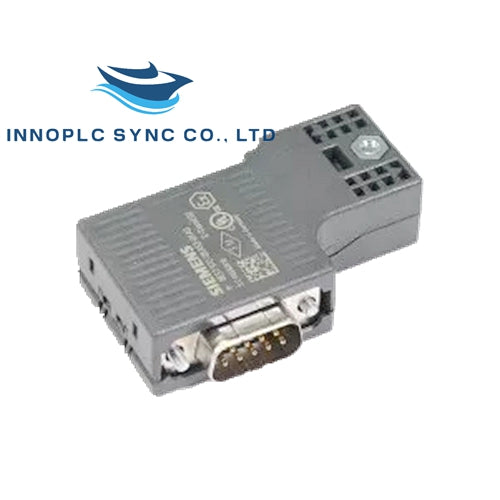

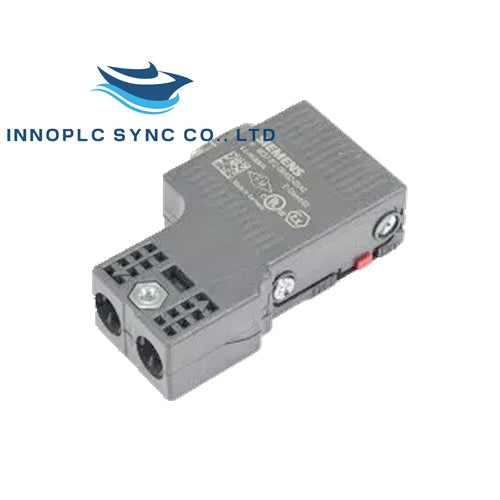

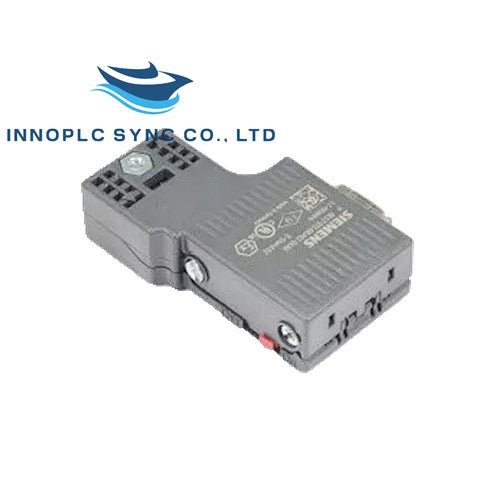

Siemens | 6ES7972-0BA52-0XA0 | PROFIBUS Connector

SKU: 6ES7972-0BA52-0XA0

Manufacturer: Siemens
Product No.: 6ES7972-0BA52-0XA0
Condition：In stock
Product Type: PROFIBUS Connector
Product Origin: Germany
Payment:T/T, Western Union
Weight: 36g
Shipping port: Xiamen
Warranty: 12 months

Overview

Model: 6ES7972-0BA52-0XA0
Product: PROFIBUS Connector, RS 485, Fast Connect, 90° cable outlet, without programming port
Application: Connecting PROFIBUS stations to the bus cable

Dimensions

Width: 15.8 mm
Height: 59 mm
Depth: 35.6 mm
Weight: 36 g

Electrical Connection

PROFIBUS Cables: 2 integrated insulation displacement terminals
Network Components: 1 x 9-pin sub D connector
FastConnect: Yes

Transfer Rate

Range: 9.6 kbit/s to 12 Mbit/s

Mechanical Features

Terminating Resistor: Integrated and connectable via slide switch
Material: Plastic
Locking Mechanism: Screwed joint

Environmental Conditions

Operating Temp: -25 to +60°C
Storage Temp: -40 to +70°C
Transport Temp: -40 to +70°C
Protection Class: IP20

Certifications & Standards

RoHS Conformity: Yes
UL Approval: Yes
IEC 81346-2: Yes
