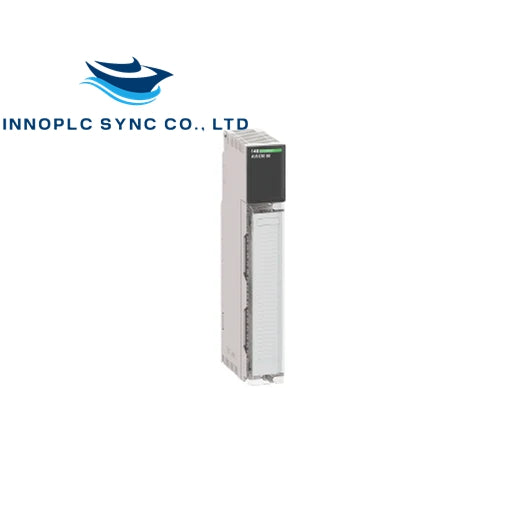

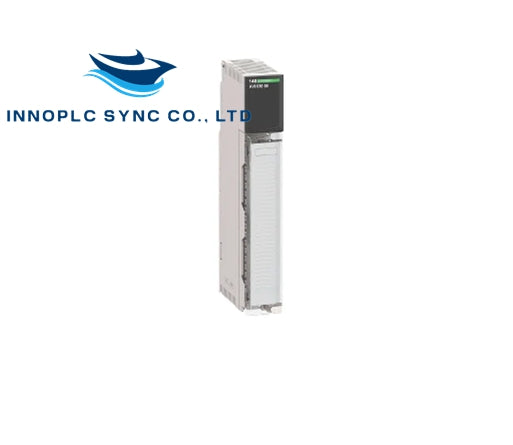

Schneider Electric|140ARI03010|Analog Input Module

SKU: 140ARI03010
  • Manufacturer: SCHNEIDER

  • Product No.: 140ARI03010

  • Condition:In stock

  • Product Type: Analog Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

    DESCRIPTION

    • Type: Analog Input Module
    • Series: Modicon Quantum
    • Application: Industrial Automation and Control Systems

    Features:

    • Number of Inputs: 8
    • Input Types: Supports temperature probes such as Pt 100, Pt 200, Pt 500, Pt 1000, Ni 100, Ni 200, Ni 500, Ni 1000
    • Input Resolution: 13 bits
    • Input Impedance: ≥ 10 MΩ
    • Local Signaling:
      • Bus Communication Status: 1 LED (Green)
      • External Fault: 1 LED (Red)
      • Channel Status: 8 LEDs (Green/Red)

    Specifications:

    • Temperature Measurement Range:
      • Pt 100, Pt 200, Pt 500, Pt 1000: -200 to 850 °C
      • Ni 100, Ni 200, Ni 500, Ni 1000: -60 to 180 °C
    • Accuracy:
      • Absolute Accuracy Error: 0.1 °C
      • Linearity Error: ± 0.01% Full Scale
      • Accuracy Drift According to Temperature: ± 0.5 °C at 25 °C, ± 0.9 °C at 0 to 60 °C
    • Isolation:
      • Between Channels and Bus: 1780 V AC, 47…63 Hz, 60 s; 2500 V DC, 60 s
      • Between Channels: 300 Vrms AC
    • Update Time:
      • 1200 ms for 3 Wires
      • 640 ms for 2 Wires/4 Wires
    • Fault Detection: Broken Wire, Overtracking Scale
    • Power Dissipation: 1 W
    • Bus Current Requirement: 200 mA
    • Operating Temperature: 0…60 °C
    • Storage Temperature: -40…85 °C
    • Relative Humidity: 95% without Condensation
    • Operating Altitude: ≤ 5000 m
    • Protection Class: IP20 conforming to EN 61131-2 and IEC 60527
    • Vibration Resistance:
      • 3.5 mm Constant Amplitude (0.5…8.4 Hz) conforming to EN 61131-2
      • 1 gn Constant Acceleration (8.4…150 Hz) conforming to EN 61131-2
    • Dimensions: 120 mm x 80 mm x 70 mm
    • Weight: 0.3 kg
    Order and Warranty Information

    Terms of Purchase and Returns

    Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

    We gladly accept bulk orders, with a minimum order quantity of just one unit.

    Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

    We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

    All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

    We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
