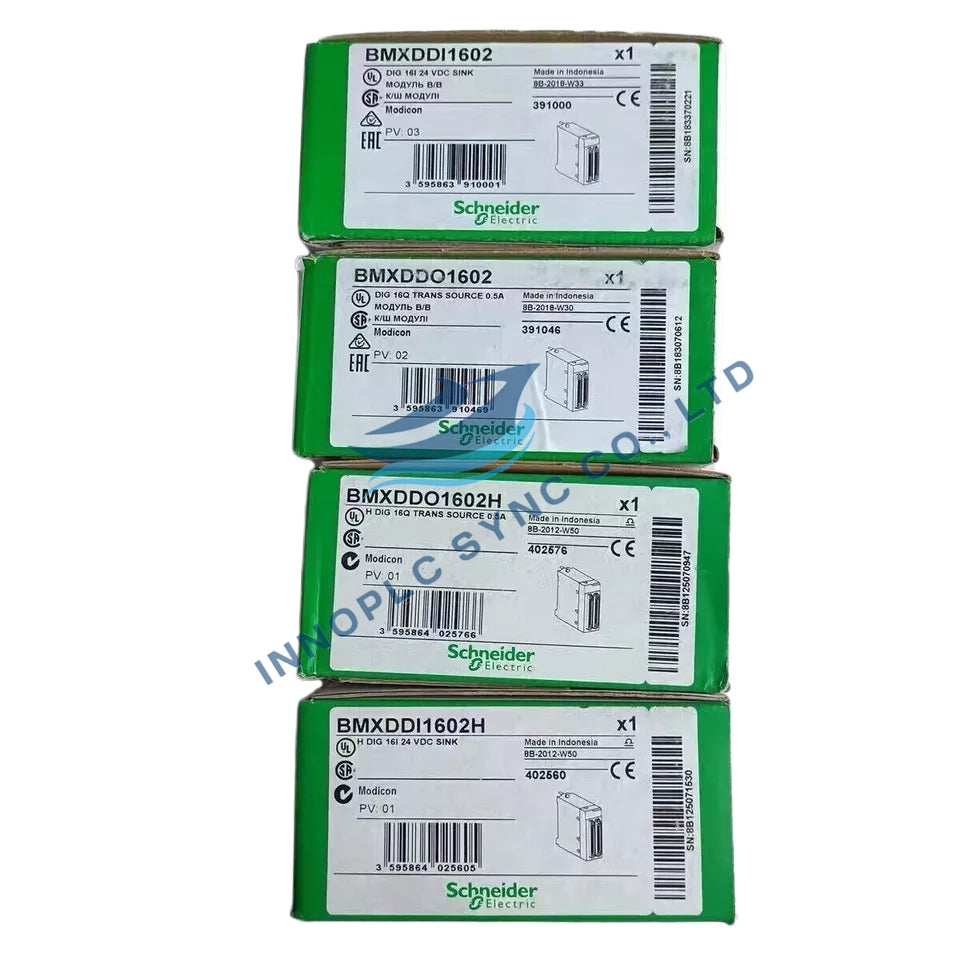

SCHNEIDER|BMXDDI1602H|Ruggedized Discrete Input Module
SKU: BMXDDI1602H

  • Manufacturer: SCHNEIDER

  • Product No.: BMXDDI1602H

  • Condition：In stock

  • Product Type: Ruggedized Discrete Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 70g

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

  • The Schneider Electric BMXDDI1602H is a ruggedized discrete input module for the Modicon X80 platform, designed to handle 16 digital inputs in harsh industrial environments.

Features

  • High-density input processing.
  • Robust design for extreme conditions.
  • Compatible with Modicon X80 systems.

Technical Specifications

  • Input Channels: 16 discrete inputs.
  • Input Voltage: 24 V DC nominal.
  • Voltage Range: 19 to 30 V DC.
  • Input Current: 3.5 mA typical at 24 V DC.
  • Response Time: 4 ms typical for on/off transitions.
  • Power Dissipation: 3.2 W maximum.
  • Operating Temperature: -25 to 70°C.
  • Storage Temperature: -40 to 85°C.
  • Humidity: 5 to 95% non-condensing.
  • Altitude: Up to 4000 m.
  • Shock Resistance: 30 gn for 11 ms.
  • Vibration Resistance: 3 gn at 5 to 150 Hz.
  • Isolation Voltage: 1500 V DC between channels and ground.
  • Weight: 0.14 kg.
  • Dimensions: Width 32 mm, Height 100 mm, Depth 86 mm.
Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

Check now

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
Check now

Product comparison

SCHNEIDER|BMXDDI1602H|Ruggedized Discrete Input Module
Current product Current
SCHNEIDER

SCHNEIDER|BMXDDI1602H|Ruggedized Discrete Input Module

Options
In stock
Descriptions

Description

  • The Schneider Electric BMXDDI1602H is a ruggedized discrete input module for the Modicon X80 platform, designed to handle 16 digital inputs in harsh industrial environments.

Features

  • High-density input processing.
  • Robust design for extreme conditions.
  • Compatible with Modicon X80 systems.

Technical Specifications

  • Input Channels: 16 discrete inputs.
  • Input Voltage: 24 V DC nominal.
  • Voltage Range: 19 to 30 V DC.
  • Input Current: 3.5 mA typical at 24 V DC.
  • Response Time: 4 ms typical for on/off transitions.
  • Power Dissipation: 3.2 W maximum.
  • Operating Temperature: -25 to 70°C.
  • Storage Temperature: -40 to 85°C.
  • Humidity: 5 to 95% non-condensing.
  • Altitude: Up to 4000 m.
  • Shock Resistance: 30 gn for 11 ms.
  • Vibration Resistance: 3 gn at 5 to 150 Hz.
  • Isolation Voltage: 1500 V DC between channels and ground.
  • Weight: 0.14 kg.
  • Dimensions: Width 32 mm, Height 100 mm, Depth 86 mm.
