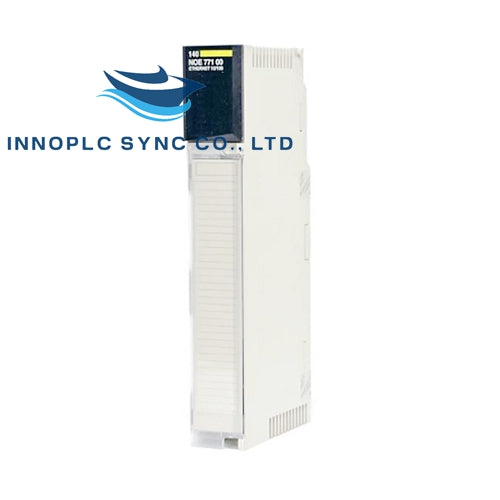

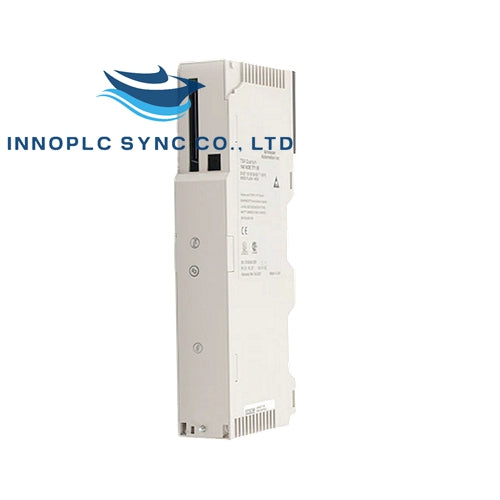

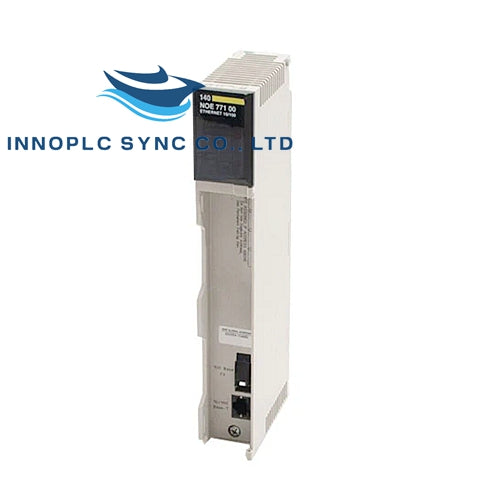

SCHNEIDER | 140NOE77100 | Ethernet Network TCP/IP Module

SKU: 140NOE77100

Manufacturer: SCHNEIDER
Product No.: 140NOE77100
Condition：In stock
Product Type: Ethernet Network TCP/IP Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 345g
Shipping port: Xiamen
Warranty: 12 months

Overview

The 140NOE77100 is an Ethernet Network TCP/IP Module designed for the Modicon Quantum automation platform. This module provides reliable communication capabilities, including data editing and diagnostics through a web server interface.

Technical Specifications

Manufacturer: Schneider Electric
Product Number: 140NOE77100
Product Type: Ethernet Network TCP/IP Module

Main Features:

Concept: Transparent Ready
Web Server: Class B20
Web Services:
- Data Editor (via PC terminal)
- Diagnostics via predefined web pages
- Rack viewer

Communication Capabilities:

Communication Service: I/O scanning, Modbus TCP messaging
Communication Protocol: Ethernet Modbus TCP/IP
Physical Interface:
- MT/RJ 100BASE-FX fiber optic
- RJ45 10BASE-T/100BASE-TX twisted pair
Transmission Rate: 10/100 Mbit/s

Redundancy:

Architecture: Hot standby redundant architecture

Power and Signaling:

Supply: Via the power supply of the rack
Local Signaling:
- 1 LED for 10 Mbps or 100 Mbps data rate
- 1 LED for collision detection
- 1 LED for download mode
- 1 LED for Ethernet module fault
- 1 LED for Ethernet network status
- 1 LED for full-duplex mode
- 1 LED for module readiness
- 1 LED for network activity
- 1 LED for rack operational status
- 1 LED for transmission/reception activity
Current Consumption: 750 mA at 5 V DC
Module Format: Standard
Product Weight: 0.76 lb (0.345 kg)

Environmental Standards:

IP Protection Degree: IP20
Product Certifications: CUL, UL 508
Standards: CSA C22.2 No 142, FM Class 1 Division 2

Durability Features:

Resistance to Electrostatic Discharge: 4 kV contact, 8 kV on air (IEC 801-2)
Resistance to Electromagnetic Fields: 9.14 V/yd (10 V/m) 80...1000 MHz (IEC 801-3)

Operating Conditions:

Ambient Air Temperature for Operation: 32...140 °F (0...60 °C)
Ambient Air Temperature for Storage: -40...185 °F (-40...85 °C)
Relative Humidity: 95% without condensation
Operating Altitude: ≤ 14,763.78 ft (4500 m)
