SC25V-ALP25-120| Yokogawa|Digital Indicating Controller
SKU: UT35A-100-10-00

  • Manufacturer: Yokogawa

  • Product No.: UT35A-100-10-00

  • Condition：In stock

  • Product Type: Digital Indicating Controller

  • Product Origin: Japan

  • Payment:T/T, Western Union

  • Weight: 2300g

  • Shipping port: Xiamen

  • Warranty: 12 months

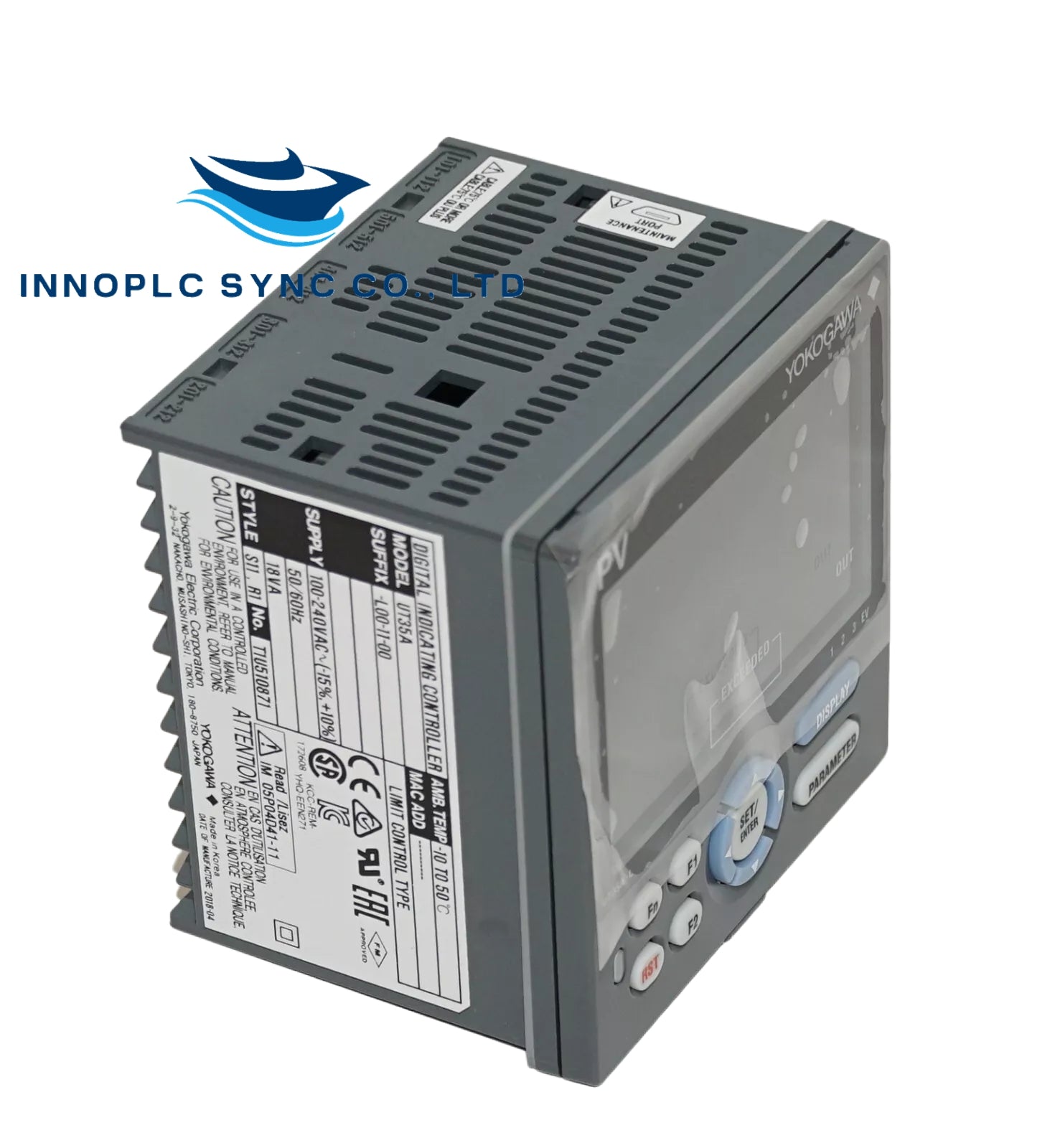

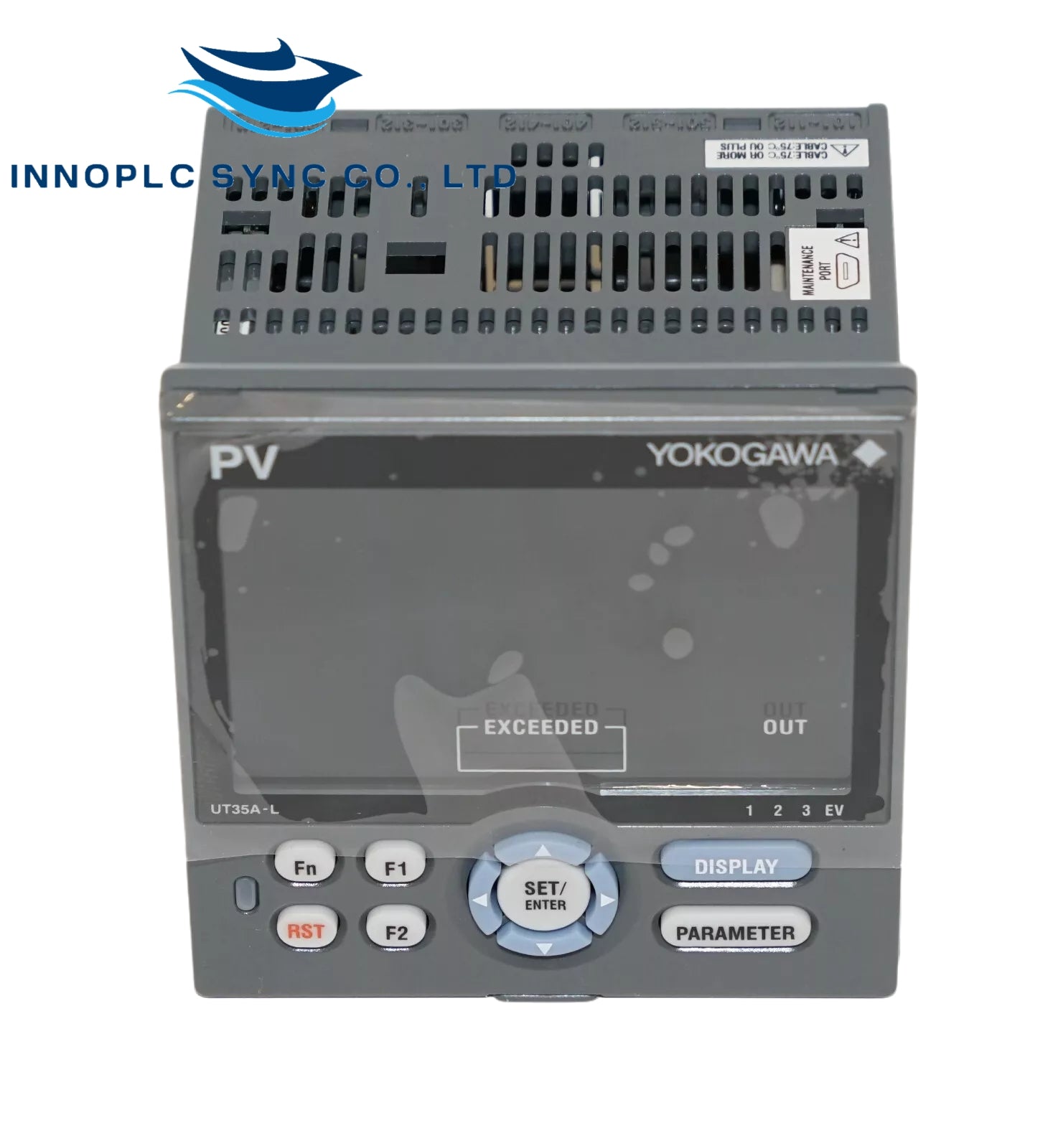

The Yokogawa UT35A-100-10-00 Digital Indicating Controller is a versatile device designed for process control and monitoring in various industrial applications. It provides both analog and retransmission output capabilities, offering flexible options for controlling and monitoring processes.

Analog Output Specifications

  • Number of Points:

    • 1 point for heating-side output
    • 1 point for cooling-side output (shared with transmission output)

  • Output Functions:

    • Current Output:
      • Range: 4-20 mA DC or 0-20 mA DC
      • Load Resistance: 600 Ω or less
      • Accuracy: ±0.1% of span (except for 1 mA or less, which is ±5% of span)
    • Voltage Pulse Output:
      • Purpose: Used for time proportional output
      • ON Voltage: 12 V or more with a load resistance of 600 Ω or more
      • OFF Voltage: 0.1 V DC or less
      • Time Resolution: 10 ms or 0.1% of output value, whichever is larger

Retransmission Output Specifications

  • Number of Points:

    • 1 point (shared with 15 V DC loop power supply)
    • Additional points available when analog control output is not used

  • Output Function:

    • Current Output:
      • Range: 4-20 mA DC or 0-20 mA DC
      • Load Resistance: 600 Ω or less
      • Accuracy: ±0.1% of span (except for 1 mA or less, which is ±5% of span)

Summary:

The Yokogawa UT35A-100-10-00 Digital Indicating Controller is a robust and flexible device designed for industrial process control and monitoring. It offers both analog and retransmission output capabilities, making it suitable for a wide range of applications. The controller supports multiple output types, including current and voltage pulse outputs, and provides high accuracy and reliability in harsh industrial environments.
