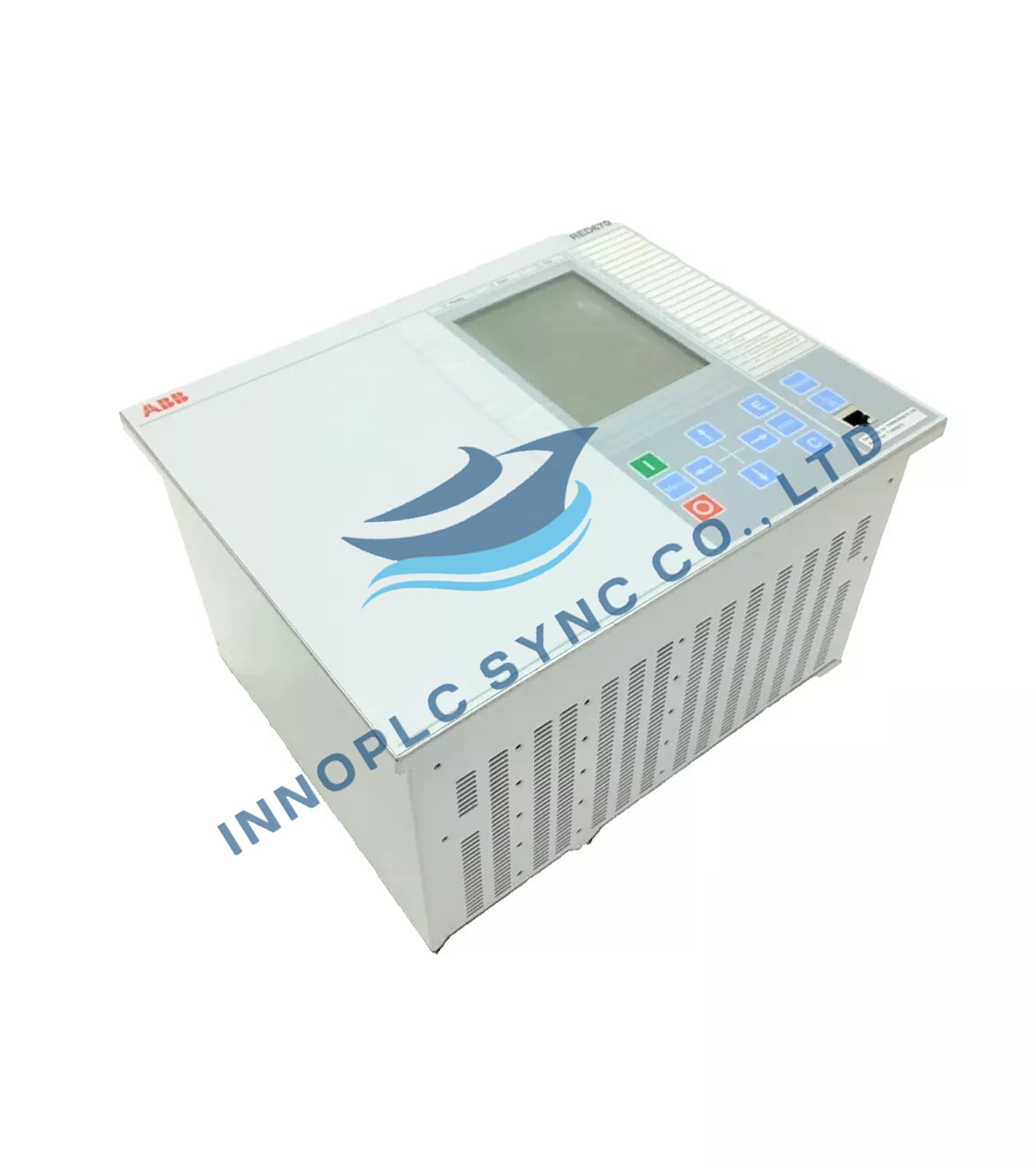

REL670| ABB |Multifunctional Protection Relay

SKU: REL670

Manufacturer: ABB
Product No.: REL670
Condition：In stock
Product Type: Multifunctional Protection Relay
Product Origin: Sweden
Payment:T/T, Western Union
Weight: 1230g
Shipping port: Xiamen
Warranty: 12 months

Description

The ABB REL670 is a multifunctional protection relay designed for comprehensive protection of power system components such as transformers, generators, motors, feeders, buses, and shunt capacitors. It offers advanced protection, control, and monitoring capabilities in a compact and reliable package.

Features

Comprehensive Protection: Covers a wide range of applications including differential, overcurrent, earth fault, distance, and transformer differential protection.
High Reliability: Ensures dependable operation in harsh industrial environments.
Flexible Configuration: Supports multiple communication protocols and can be easily configured via front panel or PC software.
Advanced Monitoring: Provides real-time data logging and event recording for detailed system analysis.
Compact Design: Space-saving form factor suitable for various installation requirements.

Technical Specifications

Voltage Rating: 57.74 V to 400 V AC/DC
Current Rating: 1A or 5A (selectable)
Power Supply: 24 V to 250 V AC/DC
Operating Temperature: -25°C to +70°C
Storage Temperature: -40°C to +85°C
Humidity: 5% to 95% non-condensing
Vibration Resistance: Meets IEC 60068-2-6
Shock Resistance: Meets IEC 60068-2-27
EMC Compliance: Meets IEC 61000-4 standards
Communication Interfaces: Ethernet (IEEE 802.3), RS485, Profibus DP, Modbus RTU
Digital Inputs: 16 (optional expansion up to 64)
Digital Outputs: 16 (optional expansion up to 64)
Analog Inputs: 8 (optional expansion up to 32)
Analog Outputs: 2 (0-20mA, 4-20mA, 0-5V, 0-10V)
Memory: 32 MB RAM, 32 MB Flash
Dimensions: 250 mm (W) x 100 mm (H) x 100 mm (D)
Weight: 2.5 kg
Protection Functions:
- Overcurrent (OC)
- Earth Fault (EF)
- Differential (DIFF)
- Distance (DIST)
- Transformer Differential (TDIFF)
- Instantaneous Overcurrent (IOC)
- Definite Time Overcurrent (DTOC)
- Inverse Time Overcurrent (ITOC)
- Earth Fault Directional (EFD)
- Voltage Restraint Overcurrent (VROC)
- Negative Sequence (NS)
- Zero Sequence (ZS)
- Frequency (FREQ)
- Power Swing Blocking (PSB)
- Synchrocheck (SYNC)
Accuracy Class: 5P, 10P for current transformers; 0.2, 0.5 for voltage transformers
Response Time: < 2 ms for instantaneous functions, < 10 ms for time-overcurrent functions
Certifications: CE, UL, cUL, IEC 61850
