REF620 HBFJAEAGABC6BDA11G| ABB | Feeder Protection And Control

SKU: REF620 HBFJAEAGABC6BDA11G

Manufacturer: ABB
Product No.: REF620 HBFJAEAGABC6BDA11G
Condition：In stock
Product Type: Feeder Protection And Control
Product Origin: USA
Payment:T/T, Western Union
Weight: 3300g
Shipping port: Xiamen
Warranty: 12 months

Description

The REF620 HBFJAEAGABC6BDA11G is an intelligent electronic device (IED) designed for comprehensive feeder protection, control, and monitoring in power distribution systems. It supports various network configurations and offers advanced protection and communication features.

Features

Compliance: IEC 61850 standard for communication and interoperability.
Protection Functions: Overcurrent, earth fault, arc protection.
Control Capabilities: Control of circuit breakers, disconnectors, and earthing switches.
Communication Options: Advanced communication protocols and modules.

Technical Specifications

Rated Voltage: 24 V DC, 48 V DC, 110 V DC, 220 V DC, 110 V AC, 230 V AC.
Rated Frequency: 50 Hz / 60 Hz.
Rated Current: 1 A or 5 A.
Analog Inputs: 16 (8 configurable as analog or digital inputs).
Digital Inputs: 24.
Digital Outputs: 16 (12 relay outputs, 4 transistor outputs).
Communication Protocols: IEC 61850, Modbus, IEC 60870-5-103, DNP3.
Ethernet Modules:
- 100Base-TX (3 x RJ-45)
- 100Base-TX and -FX (2 x RJ-45 + 1 x LC)
- 100Base-TX and -FX (1 x RJ-45 + 2 x LC)
Serial Communication: Optional RS-485/RS-232 modules.
Language Support: English, optional Chinese.

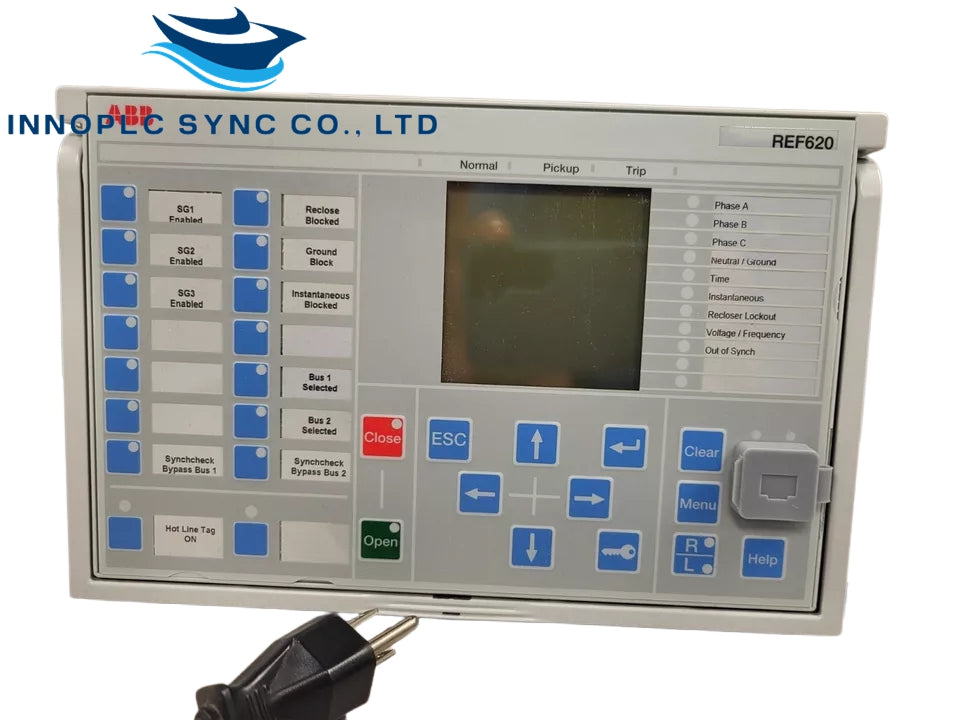

Display: Large LCD with single-line diagram.
Performance Class: IEC 61850-5 P1 message type "Trip" (transfer time < 10 ms).
Operating Temperature: -25°C to +70°C.
Storage Temperature: -40°C to +85°C.
Relative Humidity: 5% to 95% (non-condensing).
Vibration Resistance: 2 g (20 Hz to 500 Hz).
Shock Resistance: 15 g (11 ms).
EMC Compliance: EN 61000-4-x series.
Mounting: DIN rail, panel mount, or cabinet mount.
Dimensions: 145 mm (W) x 120 mm (H) x 100 mm (D).
Weight: 1.5 kg.
