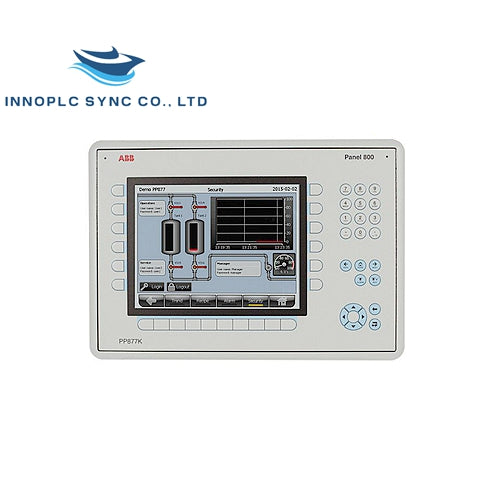

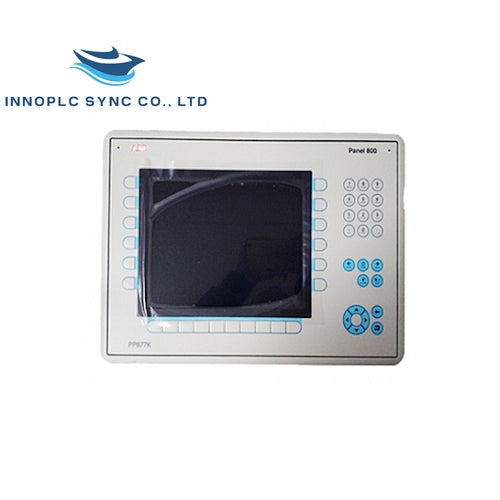

PP877K | ABB | Compact Product Suite Panel

SKU: PP877K

Manufacturer: ABB
Product No.: PP877K
Condition：In stock
Product Type: Compact Product Suite Panel
Product Origin: USA
Payment:T/T, Western Union
Weight: 3800g
Shipping port: Xiamen
Warranty: 12 months

Technical Data for PP877K

Specification	Details
Front panel (W x H x D)	410 x 286 x 83 mm
Cutout dimensions (W x H)	394 x 270 mm
Mounting depth	76 mm (176 mm including clearance)
Independent installation	VESA 75 × 75
Note	The maximum screw length for VESA installation is 4 mm. Using screws longer than this may cause damage.
Front panel seal	IP 65
Rear panel seal	IP 20
Keyboard material	Membrane switch keyboard with metal domes; Coating: Autotex F150 with print on reverse side; 1 million operations.
Back material	Powder-coated aluminum
Frame material	Powder-coated aluminum
Weight	3.8 kg
Serial port (COM1)	RS232; 9-pin D-sub connection with RTS/CTS, chassis-mounted female with standard locking screws 4-40 UNC
Serial port (COM2)	RS422/RS485; 9-pin D-sub connection with RTS/CTS, chassis-mounted female with standard locking screws 4-40 UNC
Serial port (COM3)	RS232; 9-pin D-sub connection with RTS/CTS, chassis-mounted female with standard locking screws 4-40 UNC
Serial port (COM4)	RS422/RS485; 9-pin D-sub connection with RTS/CTS, chassis-mounted female with standard locking screws 4-40 UNC
Ethernet	1 × 10/100 Base-T (shielded RJ45)
USB	1 × USB Host 2.0, max output current 200 mA
Processor	400 MHz ARM9
External storage media	1 × SD card (optional); compatible with standard SD format up to 2 GB storage capacity
Flash memory (application memory)	128 MB SSD (NAND Flash)
Memory (RAM)	128 MB (DDR2)
LED	1 × Blue/Red software programmable
Real-time clock	Yes (on-chip)
Battery	BR 2032 type lithium battery, soldered
Rated voltage	9.6 W
Fuse	Internal DC fuse, 2.0 AT, 5 x 20 mm
Power supply	+24 V DC (18 to 32 V DC)
CE Compliance	The power supply must conform to IEC 60950 and IEC 61558-2-4
UL and cUL Compliance	The power supply must conform to class II power supply requirements
Display	TFT-LCD with LED backlight; 800 × 480 / 640 × 480 pixels, 64K colors
Screen brightness	450 cd/m²
Screen viewing angle	Horizontal: 160°; Vertical: 140°
Backlight lifetime	50,000 hours
Active area of display (W x H)	211.2 x 158.4 mm
Operating temperature	-10 °C to +60 °C
Storage temperature	-20 °C to +70 °C
Relative humidity during operation	<85% non-condensing
CE approvals	This equipment fully complies with the following standards or technical specifications: EMC Directive 2004/108/EC, EMC Directive 2004/108/EC + A1:2011, Low Voltage Directive 2006/95/EC, Emission: EN 61000-6-4:2007, Immunity: EN 61000-6-2:2005
DNV Certification	Yes
UL Certification	Yes, for PP877K panel marked with UL label

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
