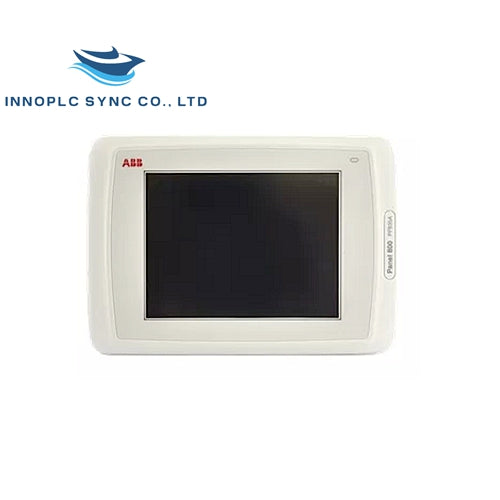

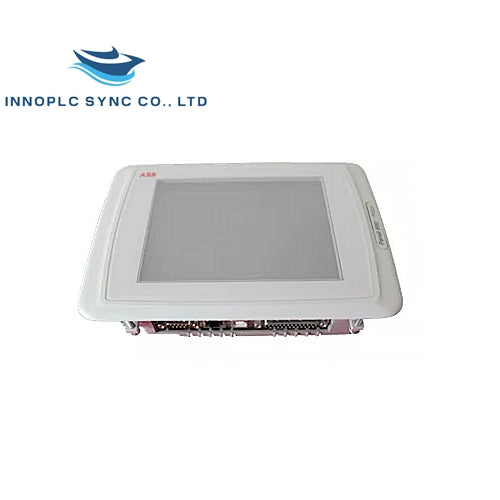

PP865A | ABB | Panel
SKU: PP865A

  • Manufacturer: ABB

  • Product No.: PP865A

  • Condition：In stock

  • Product Type: Panel

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 3700g

  • Shipping port: Xiamen

  • Warranty: 12 months

Technical Data for PP865A

Specification Details
Front panel (W x H x D) 398 x 304 x 6 mm
Mounting depth 60 mm (160 mm including clearance)
Front panel seal IP 66
Rear panel seal IP 20
Keyboard material / Front panel Touch screen: Polyester on glass, 1 million finger touch operations; Overlay: Autotex F157/F207
Reverse side material Powder-coated aluminum
Weight 3.7 kg
Serial port (RS422/RS485) 25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC
Serial port (RS232C) 9-pin D-sub contact, male with standard locking screws 4-40 UNC
Ethernet Shielded RJ 45
USB Host Type A (USB 1.1), max output current 500 mA
USB Device Type B (USB 1.1)
CF-slot Compact flash, type I and II
Flash memory for application 12 MB (including fonts)
Real time clock ±20 PPM + error due to ambient temperature and supply voltage; Total maximum error: 1 min/month at 25 °C; Temperature coefficient: -0.034±0.006 ppm/°C²
Real time clock battery CR2450 (UL and cUL: Sanyo or Panasonic); Minimum lifetime: 3 years; Rechargeable battery
Power consumption at rated voltage Normal: 1.2 A; Maximum: 1.7 A
Display TFT-LCD, 1024 x 768 pixels, 64K colors
CCFL backlight lifetime >35,000 hours at +25 °C
Active area of display (W x H) 304.1 x 228.1 mm
Fuse Internal DC fuse, 3.15 AT, 5 x 20 mm
Power supply +24V DC (20 - 30V DC); 3-pin jack connection block
CE Compliance The power supply must conform to IEC 60950 and IEC 61558-2-4
UL and cUL Compliance The power supply must conform to requirements for class II power supplies
Ambient temperature Vertical installation: 0 ° to +50 °C; Horizontal installation: 0 ° to +40 °C
Storage temperature -20 °C to +70 °C
Relative humidity 5 - 85 % non-condensed
CE approvals Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity
UL, cUL approvals UL 1604 Class I, Div 2 / UL 508 / UL 50 4x indoor use only
DNV Yes
NEMA 4x indoor use only
