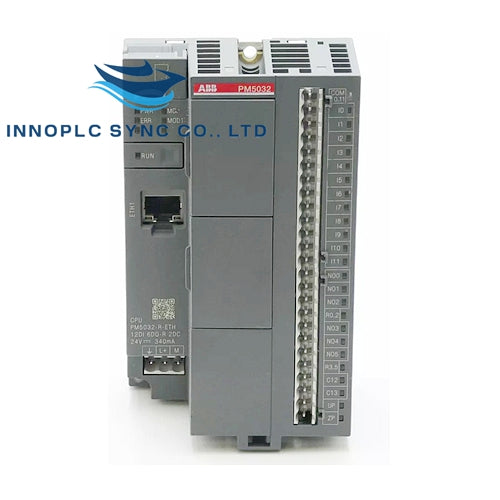

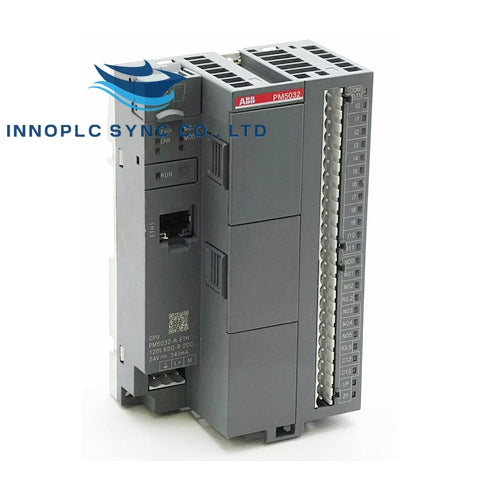

PM5032-R-ETH | ABB | Processor Module

SKU: PM5032-R-ETH

Manufacturer: ABB
Product No.: PM5032-R-ETH
Condition：In stock
Product Type: Processor Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 266g
Shipping port: Xiamen
Warranty: 12 months

Overview

Product ID: 1SAP123500R0172
ABB Type Designation: PM5032-R-ETH
Catalog Description: Processor module, 2MB memory, 12 DI 24V DC, 6 DO-Relay, 2 DC 24V DC, Ethernet interface, 2 option slots

Ordering Information

Invoice Description: Processor module with 2MB memory, 12 DI, 6 DO-Relay, 2 DC 24V DC, Ethernet interface, 2 option slots
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit of Measure: piece

Dimensions

Product Net Weight: 0.266 kg
Product Net Depth / Length: 74 mm
Product Net Height: 135 mm
Product Net Width: 82 mm

Technical Specifications

Memory Size: 5032 kB
Memory Type: RAM (User Data)
Controller Processing Time: 0.00002 ms
Digital Inputs: 12
Digital Outputs: 6
Configurable I/Os: 2
Input Voltage Type: DC
Rated Voltage (Ur): 24 V DC
Supply Voltage: 20.4 – 28.8 V DC

Additional Information

Product Main Type: PM5032
Product Name: Distributed Automation PLCs

Environmental Conditions

WEEE B2C / B2B: Business To Business
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
