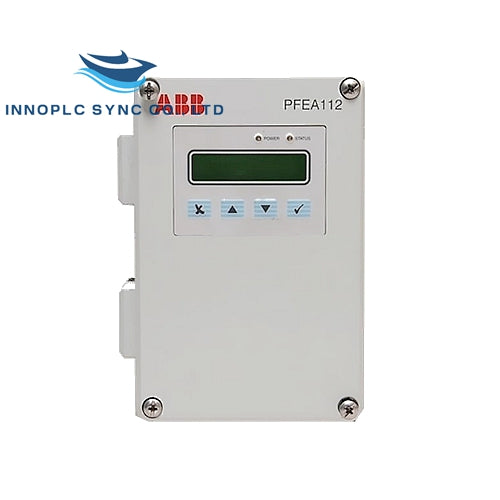

PFEA 112 | PFEA112 | ABB | Tension Electronics

SKU: PFEA 112

Manufacturer: ABB
Product No.: PFEA 112
Condition：In stock
Product Type: Tension Electronics
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Technical Specifications for PFEA112

Parameter	Specification
Power Supply
IP20 Voltage	DC 24 V (18 - 36 V)
Power Requirement	7.5 W
IP65 Main Voltage	DC 24 V (18 - 36 V), 100 (-15%) - 240 (+10%) V AC
Frequency	45 - 65 Hz
Number of Load Cells	2
Load Cell Excitation
Current	0.5 A rms, 330 Hz
Max. Load	2 load cells plus 5 Ω cable resistance
Inputs
Digital Inputs (Remote Zero or Gain Scheduling)	-
Analog Inputs	-
Outputs
Analog Outputs (Voltage or Current)	-
- 5 - +11V (max. load 5 mA)	1
- 0 - 21 mA (max. load 550 Ω)	1
Selectable Filter	Step response (0 to 90 %) can be set for each output: 15, 30, 75, 250, 750, 1500 ms
Scaling Function for Analog Outputs	Yes
Digital Outputs (Status OK and/or Level Detectors)	-
Self Diagnostics, Status OK
LED (Green/Red)	Yes
Alarm on Digital Output	-
Alarm via PROFIBUS	Yes
Alarm via PROFINET	-
Multi Language Interactive Display	Yes
Selectable Tension Units on the Display	N, kN, kg and lbs., N/m, kN/m, kg/m, pli
Maximum Load Memory	Yes
Zero Offset Memory	Yes
Communication
PROFIBUS DP	GSD file ABB_0716.GSD
PROFINET RT	GSDML-V2.42-ABB-PFEA122-20230330.xml
Environmental Tolerance
Electrical Environment
Electrical Interference Environment	As per EMC Directive 2014/30/EU
Electrical Safety	As per Low Voltage Directive 2014/35/EU, As per UL508 Industrial control equipment - uL508 approval available for PFEA111, PFEA113 and PFEA112 IP20
Ambient Temperature	+5 - +55°C
Degree of Protection	IEC 529 Protection class IP20 or IP65
