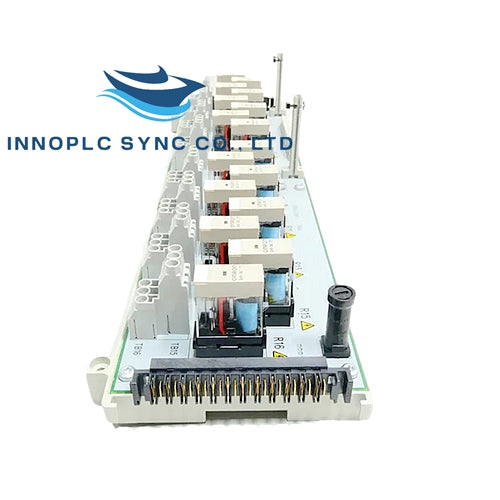

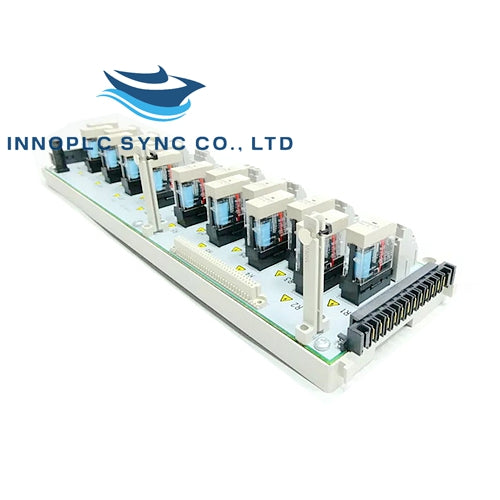

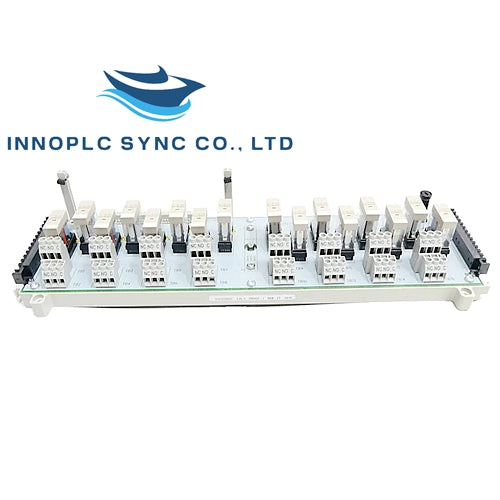

Ovation | 1C31223G01 | Relay Output Base Module

SKU: 1C31223G01

Manufacturer: Emerson
Product No.: 1C31223G01
Condition：In stock
Product Type: Relay Output Base Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months

Overview

The 1C31223G01 is a Relay Output Base Module by Emerson, designed for low-power applications. It serves as a reliable base for G2R relay panels, ensuring efficient control and distribution.

Features

Multiple Channels: Provides 16 relay outputs.
Low Power Consumption: Optimized for energy efficiency.
High Reliability: Ensures consistent performance in industrial environments.

Technical Specifications

Output Characteristics
- Number of Channels: 16
- Relay Type: G2R electromechanical relays with 1 Form C contact
- Operate Time: 15 milliseconds (excluding bounce)
- Release Time: 10 milliseconds (excluding bounce)
- Dielectric Isolation: 2200V AC/DC between relay contacts and logic
Power Supply
- Auxiliary Power Supply: 42V minimum to 55V maximum
- Module Power Consumption: 4.56W typical, 4.75W maximum
Environmental Conditions
- Operating Temperature Range: 0°C to 60°C (32°F to 140°F)
- Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
- Humidity: 5% to 95% non-condensing
- Ingress Protection: IP20
Physical Dimensions and Weight
- Length: 41.9 cm (16.5 inches)
- Width: 12.7 cm (5.0 inches)
- Height: 6.3 cm (2.5 inches)
- Weight: 2.45 lbs (1.1 kg)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
