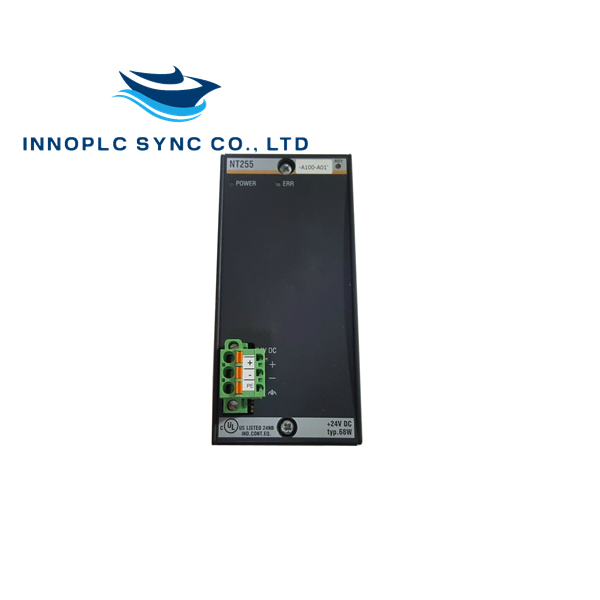

NT255 | Bachmann Power Supply Module

SKU: NT255

Manufacturer: Bachmann
Product No.: NT255
Condition：In stock
Product Type: Power Supply Module
Product Origin: Austria
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

Overview

The power supply module is specifically designed for industrial automation systems, providing reliable and efficient power to CPUs and backplane-supplied modules.

Technical Specifications

Power Supply:

Supply Voltage: 18 to 34 VDC
Output Power: 45 W (55 W peak)
Buffer Time: 18 ms
Monitoring: Supply voltage monitoring, power-fail signal for processor module

Input:

Voltage Range: 18 to 34 VDC
Input Voltage Peak: +40 V (t < 1 s/min)
Power Consumption: Max. 68 W
Reverse Polarity Protection: Electronic
Starting Current Limitation: Max. 8 A after 5 ms
Fuse: SMD wire fuse 7 A for device defects
Input Voltage Monitoring: Yes

Output:

Output Power: 45 W (55 W peak)
Output Voltage/Current: +5 V/6 A (8 A peak), +15 V/0.5 A, -15 V/0.5 A
Power-Fail Bypass: 18 ms; power-fail message after 3 ms

Monitoring:

State Indication: Power-fail on processor
State Display LEDs: Power, Error, Ready
Galvanic Isolation: 500 V (input/system), 100 V (input/ground)

Approvals/Certificates:

General: CE, UL/cUL, CCC
Marine: GL/DNV, LR, ABS, BV

Environmental Conditions:

Operating Temperature: -30 to +60 °C
Relative Humidity (Operation): 5 to 95% (without condensation), 5 to 95% (with condensation)
Storage Temperature: -40 to +85 °C
Relative Humidity (Storage): 5 to 95% (without condensation), 5 to 95% (with condensation)

Order Codes

NT255 00013251-00: Power supply 45W (55W); 24V; 5V 6A; ±15V 0.5A
NT255 CC 00016158-00: Like NT255; Cold Climate

This power supply module is essential for maintaining stable and efficient operation in industrial automation environments.

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
