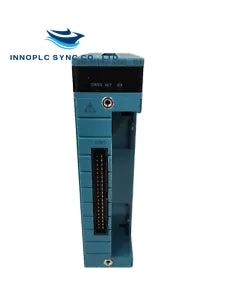

NFDV161-P00 |Yokogawa |Digital Input Module

SKU: NFDV161-P00

Manufacturer: Yokogawa
Product No.: NFDV161-P00
Condition：In stock
Product Type: Digital Input Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

The Yokogawa NFDV161-P00 Digital Input Module is designed for industrial automation, offering robust performance with a high input channel count. It is ideal for diverse process control tasks, providing reliable and precise input for monitoring and control systems.

Technical Specifications:

Number of Input Channels: 64
Rated Input Voltage: 24 V DC
Input ON Voltage: 20 to 26.4 V DC
Input OFF Voltage: 5.0 V DC or less
Input Current (at Rated Voltage): 2.5 mA ±20% per channel
Instantaneous Allowable Maximum Input Voltage: 30.0 V DC
Withstanding Voltage:
- Between input signal and system: 2000 V AC for 1 minute
- Between commons: 500 V AC for 1 minute (common minus side every 16 channels)

Functions:

Status Input: Detects ON/OFF status
Push Button Input: Counts the push button edge
ON/OFF Status Detection: Detects the state of input signals
Push Button Edge Counting: Counts the edges of push button inputs

Performance:

Input Response Time: 8 ms or less (for status input)
Minimum ON Detection Time: 20 ms (for push button input)
Maximum ON/OFF Cycle: 25 Hz (for push button input)
Maximum Current Consumption: 550 mA (5 V DC)

Additional Specifications:

Weight: 0.3 kg
External Connection: MIL connector cable

Summary: The Yokogawa NFDV161-P00 Digital Input Module is a robust and reliable solution for industrial automation, providing 64 isolated input channels for precise and efficient process control. Its features, such as galvanic isolation and compatibility with Yokogawa STARDOM controllers, make it an excellent choice for a wide range of applications.

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
