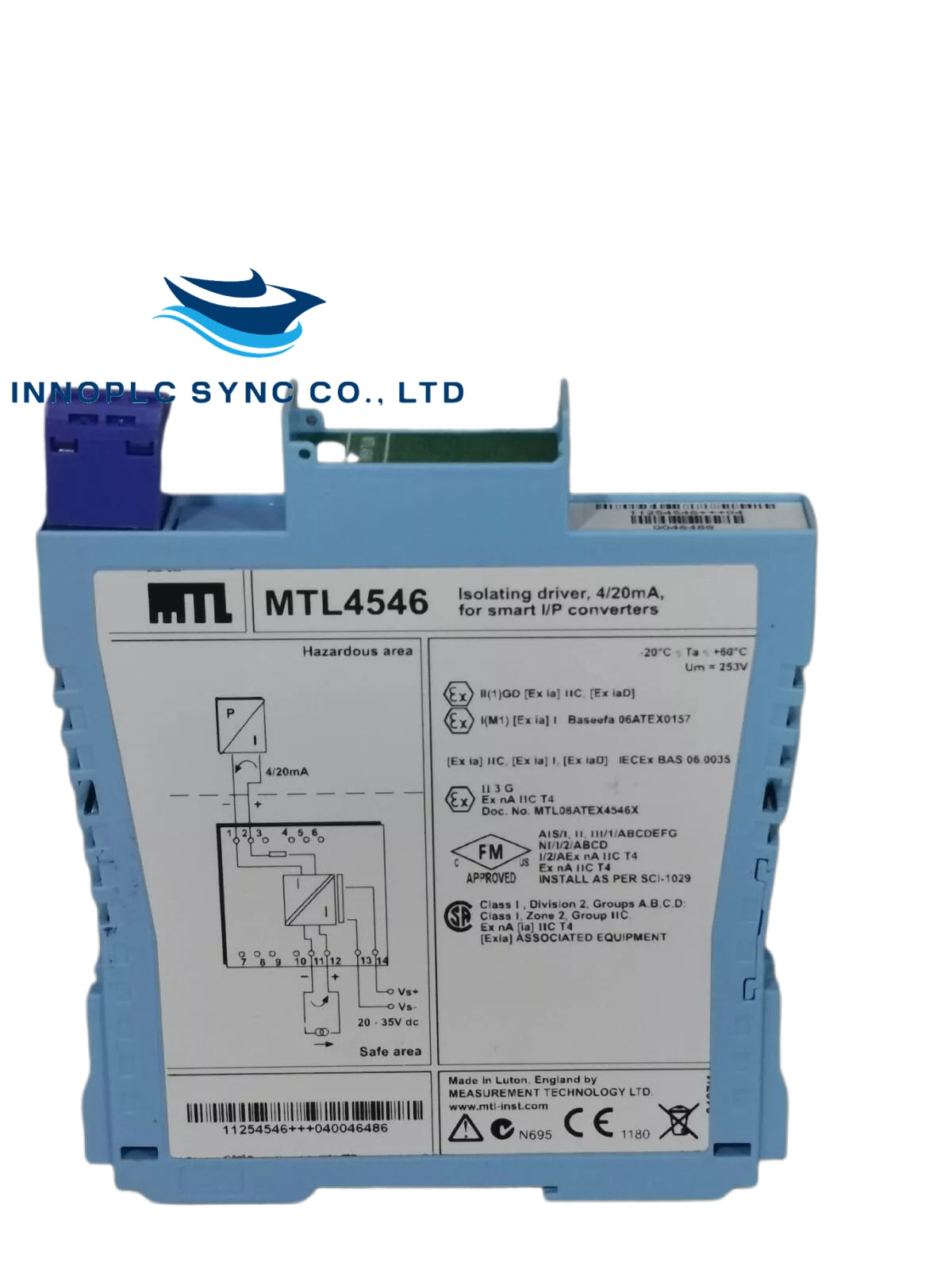

MTL Instruments | MTL4546 | Current/Pressure Converter Module

SKU: MTL4546

Manufacturer: MTL
Product No.: MTL4546
Condition：In stock
Product Type: Current/Pressure Converter Module
Product Origin: Britain
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

The MTLx546 accepts a 4/20mA floating signal from a safe-area controller to drive a current/pressure converter (or any other load up to 800Ω) in a hazardous area. For HART valve positioners, the module also permits bi-directional transmission of digital communication signals. Process controllers with a readback facility can detect open or short circuits in the field wiring; if these occur, the current taken into the terminals drops to a preset level. The MTL4546C and the MTLx546Y are very similar to the MTLx546 except that they provide open circuit detection only (i.e. no short-circuit detection).

Location of I/P converter

Zone 0, IIC, T4–6 hazardous area if suitably certified
Div. 1, Group A, hazardous location

Working range 4 to 20mA

Digital signal bandwidth 500Hz to 10kHz

Maximum load resistance 800Ω (16V at 20mA)

Minimum load resistance 90Ω (short-circuit detection at < 50Ω)

Output resistance：1MΩ

Under/over range capability

Under range = 1mA
Over range = 24mA (load < 520Ω)

Input and output circuit ripple < 40μA peak-to-peak

Transfer accuracy at 20°C Better than 20μA

Temperature drift < 1.0μA/°C
