KJ4001X1-BE1 | Emerson | 8 Wide I/O Carrier with Shield Bar

SKU: KJ4001X1-BE1

Manufacturer: Emerson
Product No.: KJ4001X1-BE1
Condition：In stock
Product Type: I/O Carrier with Shield Bar
Product Origin: USA
Payment:T/T, Western Union
Weight: 390g
Shipping port: Xiamen
Warranty: 12 months

Overview

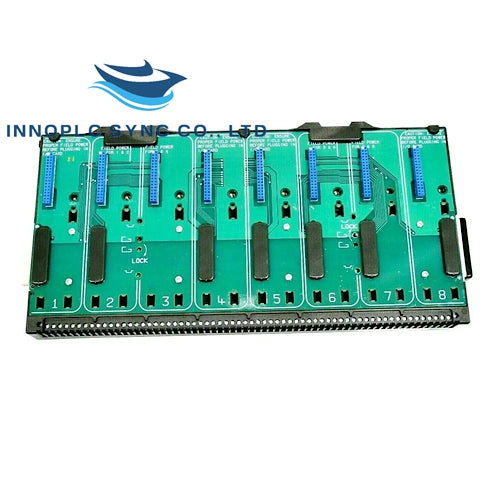

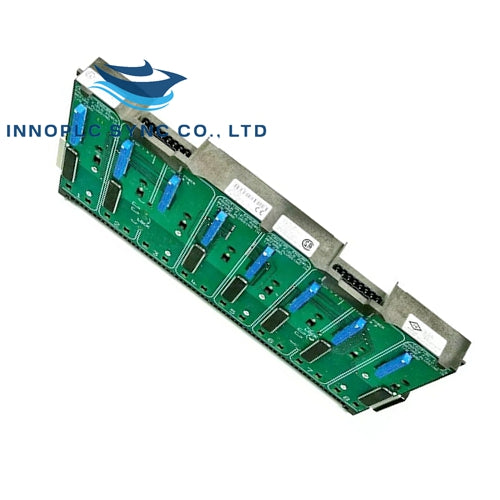

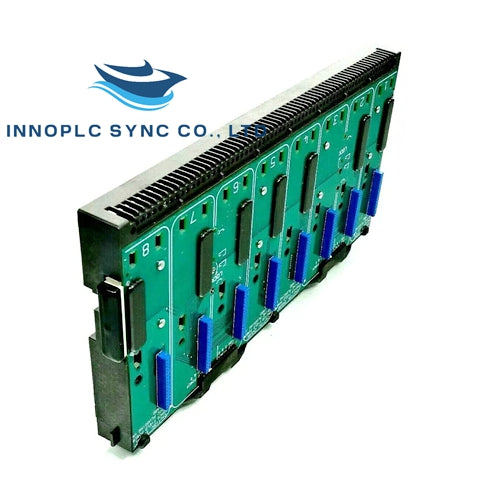

The KJ4001X1-BE1 is an 8 Wide I/O Carrier with Shield Bar by Emerson, designed for robust connectivity and power management in industrial automation.

Technical Specifications

Power Specifications:
- Local Bus Circuit: 12.6 VDC at 8 A
- Field Circuit Power: 30 VDC at 6.5 A
Environmental Specifications:
- Ambient Temperature: -40 to 70 °C
- Shock: 10g ½ Sinewave for 11 msec
- Vibration: 1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz
- Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
- Relative Humidity: 5 to 95% Non-Condensing, IP 20 Rating

Installation and Safety

Removal and Insertion:
- This unit cannot be removed or inserted with system power energized.
- Bussed field power must not exceed 30 VDC.
- Remove power before connecting or disconnecting devices.
- Use a module cover (KJ4001X1-FA1) for unoccupied locations.
- Do not unplug the product unless the system is de-energized or the area is safe.
- The combination of I/O carriers and LocalBus Extenders must not exceed 6.5 meters.

Maintenance and Adjustment

User Serviceable Parts: None
Calibration: Not required
