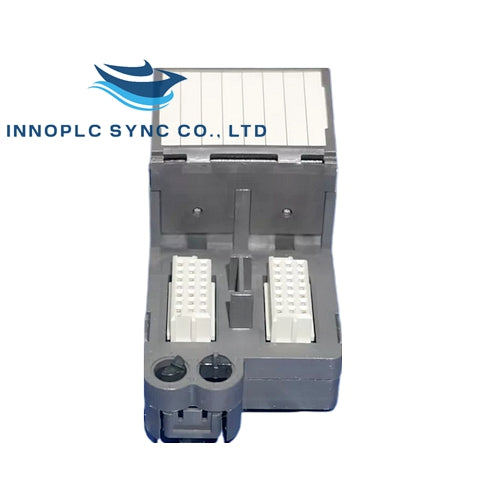

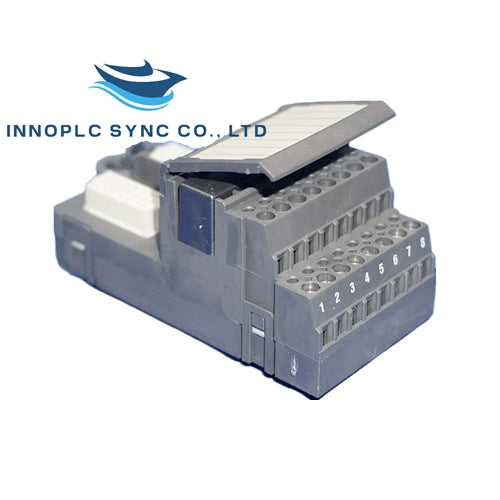

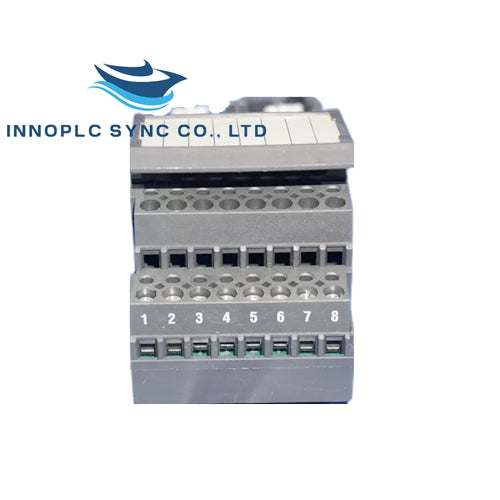

KJ3242X1-EA1 | Emerson | H1 Terminal Block

SKU: KJ3242X1-EA1

Manufacturer: Emerson
Product No.: KJ3242X1-EA1
Condition：In stock
Product Type: Terminal Block
Product Origin: USA
Payment:T/T, Western Union
Weight: 390g
Shipping port: Xiamen
Warranty: 12 months

Overview

The KJ3242X1-EA1 is an H1 Terminal Block by Emerson, designed for reliable connectivity in industrial automation applications.

Features

Input Power Rating: Operates at 35 VDC @ 500 mA for effective power management.

Technical Specifications

Power Specifications:
- Input Power Rating: 35 VDC @ 500 mA
Environmental Specifications:
- Ambient Temperature: -40 °C to +70 °C
- Shock: 10 g half-sine wave for 11 ms
- Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
- Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
- Relative Humidity: 5 to 95% non-condensing

Installation and Safety

Removal and Insertion: This unit cannot be removed or inserted with system power energized.

Maintenance and Adjustment

User Serviceable Parts: None
Calibration: Not required
