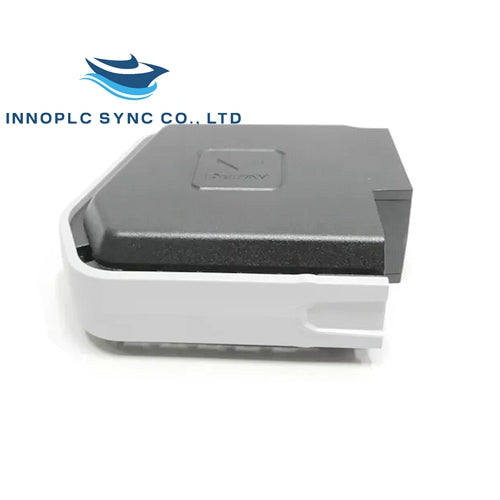

KJ3208X1-BK1 | Emerson | DO 8-Channel 24 VDC Isolated Card

SKU: KJ3208X1-BK1

Manufacturer: Emerson
Product No.: KJ3208X1-BK1
Condition：In stock
Product Type: Isolated Card
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Overview

The KJ3208X1-BK1 is an 8-Channel 24 VDC Isolated Digital Output (DO) Card from Emerson, designed to provide reliable digital output capabilities with isolation to prevent interference and ensure robust system performance.

Power Specifications

Local Bus Power:
- 12 VDC at 150 mA
- 60 VDC at 1 A/Channel

Environmental Specifications

Ambient Temperature: -40°C to +70°C
Shock Resistance: 10g ½ sine wave for 11 ms
Vibration:
- 1 mm peak-to-peak from 2 to 13.2 Hz
- 0.7g from 13.2 to 150 Hz
Airborne Contaminants: ISA-S71.04-1985 Airborne Contaminants Class G3
Relative Humidity: 5 to 95% Non-Condensing
Terminal Block Key Position: B5

Removal and Insertion

Field power supplied to this device, either at the field terminal or through the bussed field power, must be removed before removing or connecting the device.
This unit cannot be removed or inserted with system power energized.
Non-sparking field circuits must be de-energized before removal and insertion, including the fused terminal block.
A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation. The terminal block must have the keys set for the I/O card with which it is used.

Maintenance and Adjustment

This unit contains no user-serviceable parts and should not be disassembled.
Calibration is not required.

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
