KJ3202X1-BA1 | Emerson Ovation | DO 8-Channel 24 VDC High-Side

SKU: KJ3202X1-BA1

Manufacturer: Emerson
Product No.: KJ3202X1-BA1
Condition：In stock
Product Type: DO 8-Channel 24 VDC High-Side
Product Origin: USA
Payment:T/T, Western Union
Weight: 550g
Shipping port: Xiamen
Warranty: 12 months

Overview

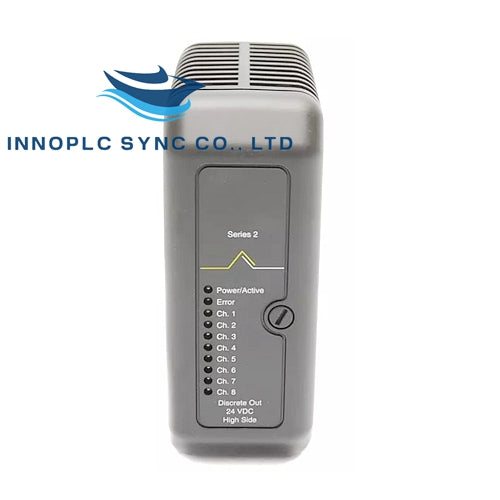

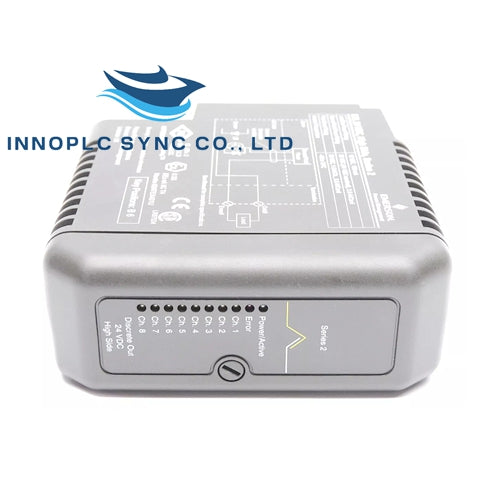

The KJ3202X1-BA1 is an 8-channel digital output module designed by Emerson for the Ovation system. It provides high-side switching for 24 VDC applications, making it suitable for various industrial automation tasks.

Features

High-Side Switching: Effectively controls loads with high-side outputs.
Multiple Channels: Supports 8 channels for versatile applications.
Robust Design: Built to withstand harsh environmental conditions.

Technical Specifications

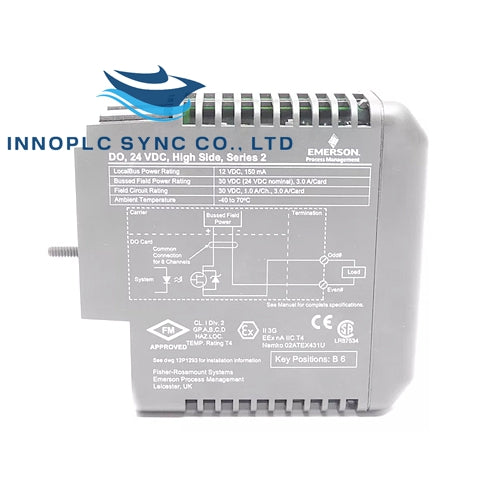

Power Specifications

Local Bus Power: 12 VDC at 150 mA
Bussed Field Power: 30 VDC at 3 A
Field Circuit: 30 VDC at 1 A/channel, 3 A/card

Environmental Specifications

Ambient Temperature: -40°C to +70°C
Shock Resistance: 10 g ½ sine wave for 11 ms
Vibration Resistance:
- 1 mm peak-to-peak from 2 to 13.2 Hz
- 0.7 g from 13.2 to 150 Hz
Airborne Contaminants: Class G3 (ISA-S71.04 –1985)
Relative Humidity: 5% to 95% Non-Condensing
Terminal Block Key Position: B6

Removal and Insertion

The unit cannot be removed or inserted with system power energized unless the area is confirmed non-hazardous. Only one unit may be handled at a time.
Non-sparking field circuits must be de-energized before removal or insertion, including the fused terminal block.
A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation. Ensure terminal block keys are set to match the I/O card.

Maintenance and Adjustment

The unit contains no user-serviceable parts and should not be disassembled.
Calibration is not required.

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
