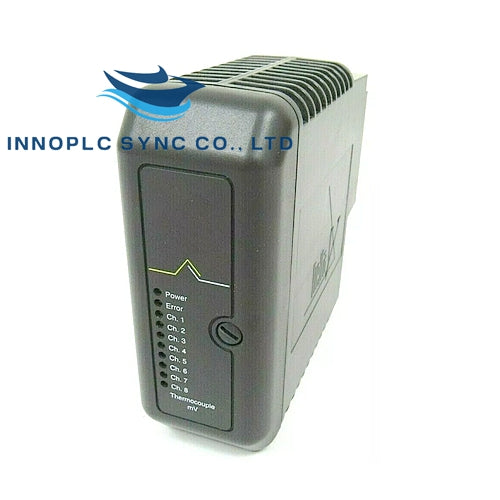

KJ3002X1-BG2 | Emerson Ovation | Thermocouple MV Card
SKU: KJ3002X1-BG2

  • Manufacturer: Emerson

  • Product No.: KJ3002X1-BG2

  • Condition：In stock

  • Product Type: Thermocouple MV Card

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 450g

  • Shipping port: Xiamen

  • Warranty: 12 months

Power Specifications

  • LocalBus Power Rating: 12 VDC at 350 mA
  • Field Circuit Rating: 5.5 VDC at 0.6 mA/channel

Environmental Specifications

  • Ambient Temperature: 0 to 60°C
  • Shock: 10 g (½ Sinewave for 11 msec)
  • Vibration:
    • 1 mm Peak to Peak from 5 to 16 Hz
    • 0.5 g from 16 to 150 Hz
  • Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
  • Relative Humidity: 5 to 95% Non-Condensing
  • IP Rating: IP 20
  • Terminal Block Key Position: B2

Removal and Insertion

  • Field power supplied to this device, either at the field terminal or as bussed field power through the carrier, must be removed before removing or connecting the device.

  • This unit may be removed or inserted while system power is energized under the following conditions:

    • Only one unit at a time may be removed with system power energized.
    • When used with KJ1501X1-BC1 System Dual DC/DC Power Supply operating on 24 VDC or 12 VDC input power. The primary circuit wiring inductance for input power must be less than 23 µH, or a certified supply with an open circuit voltage (Ui) of 12.6 VDC and an Lo of less than 23 µH (including wire inductance).

  • A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation is complete. The terminal block must have the keys set for the I/O card with which it is to be used.

  • A terminal block fuse may NOT be removed with field power energized for non-sparking circuits.

Maintenance and Adjustment

  • This unit contains no user serviceable parts and should not be disassembled for any reason.
  • Calibration is not required.
