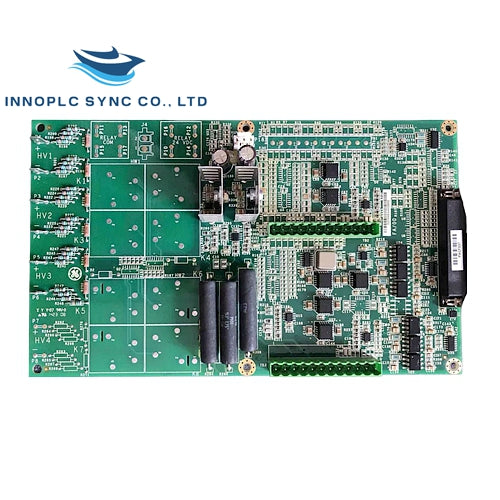

IS210AEAAH3BKE | GE Fanuc | Analog Input Module

SKU: IS210AEAAH3BKE
  • Manufacturer: GE Fanuc

  • Product No.: IS210AEAAH3BKE

  • Condition:In stock

  • Product Type: Analog Input Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 1800g

  • Shipping port: Xiamen

  • Warranty: 12 months

Overview

IS210AEAAH3BKE is a high-performance analog input module for the GE Fanuc Mark VIe control system, designed for precise data acquisition in industrial processes.


Key Details

  • Manufacturer: GE Fanuc
  • Product Type: Analog Input Module
  • Input Voltage Range: 0-10V DC
  • Current Range: 4-20mA
  • Resolution: 16-bit ADC
  • Sampling Rate: 100 samples per second
  • Isolation Voltage: 2500V RMS

Power and Environmental

  • Power Consumption: 3 W
  • Noise Rejection: 60 dB at 50/60 Hz
  • Operating Temperature: -20°C to 65°C
  • Storage Temperature: -40°C to 85°C
  • Humidity: 5% to 95% non-condensing

Physical Specifications

  • Dimensions: 6.75" x 11.00" (216 mm x 279 mm)
  • Weight: 4 lbs (1.8 kg)

Communication and Diagnostics

  • Ports: Analog Input terminals, Ethernet port
  • Diagnostic: Continuous self-check with fault indication
Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
