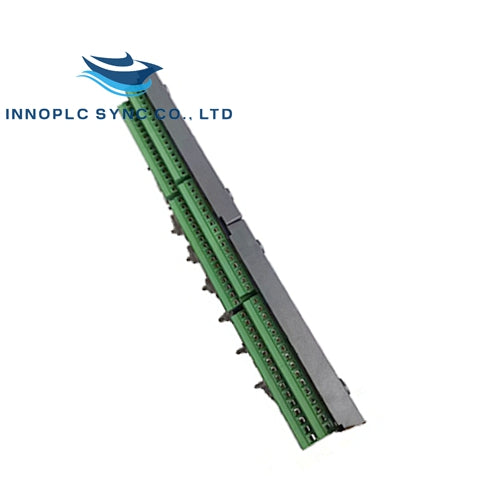

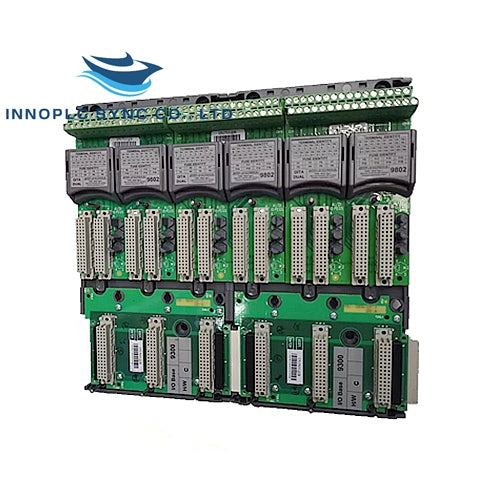

ICS Triplex | T9802 | Digital Input Termination Assembly

SKU: T9802

Manufacturer: ICS Triplex
Product No.: T9802
Condition：In stock
Product Type: Digital Input Termination Assembly
Product Origin: USA
Payment:T/T, Western Union
Weight: 1256g
Shipping port: Xiamen
Warranty: 12 months

Overview

The ICS Triplex T9802 is a versatile digital input termination assembly designed to provide reliable and efficient signal termination for various digital input applications. It supports up to 16 digital input channels and is compatible with T9401/2 input modules.

Features

Dual Input Configuration: Accepts dual input signals.
Fuse Protection: Incorporates 50mA fuses for each input channel.
High Input Impedance: Minimizes loading on input devices.
High Isolation Voltage: Protects against voltage surges and transients.

Technical Specifications

Field Connections: 16 channels
Conductor Cross-Section: Maximum 1.31 mm² (16 AWG)
Stripping Length: 6 mm (¼ in.)
Input Channel Fuses: 50mA, 125V, Type T
Channel Load: 5.125 ± 0.2% kΩ
Input Measurement Voltage Resolution: 5 mV, 13-bit
Channel Isolation: ±1.5 kVdc maximum withstanding for 1 minute
Maximum Field Loop Power Dissipation: 0.2 W per field loop (0.68 BTU/hr)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
