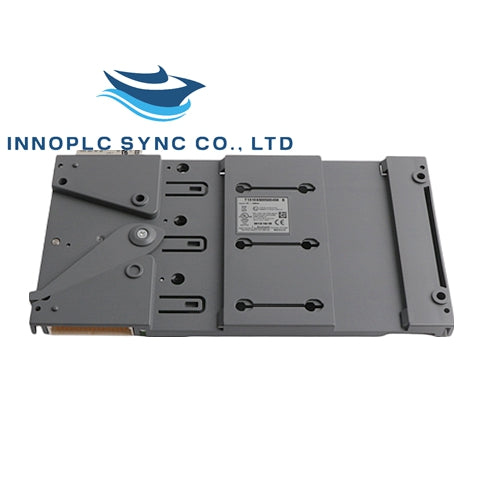

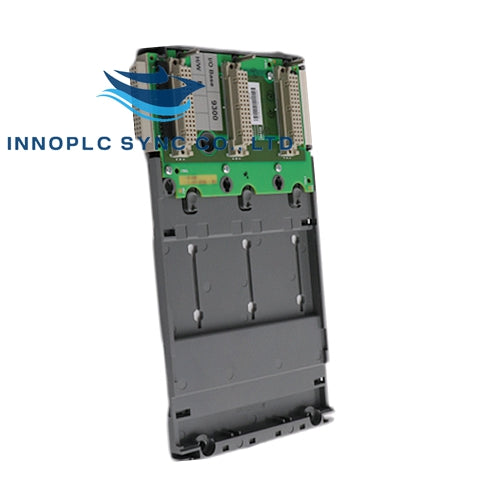

ICS Triplex | T9300 | I/O Backplane

SKU: T9300

Manufacturer: ICS Triplex
Product No.: T9300
Condition：In stock
Product Type: I/O Backplane
Product Origin: USA
Payment:T/T, Western Union
Weight: 133g
Shipping port: Xiamen
Warranty: 12 months

Overview

The ICS Triplex T9300 is an I/O Backplane designed for robust and efficient connectivity in industrial automation systems. It connects seamlessly to the T9100 processor base unit and other T9300 I/O base units to extend system capabilities.

Features

High Connectivity: Direct plug and socket connection for efficient setup.
Expansion Capability: Supports connection with T9310 expansion cable for additional rows of I/O base units.
Secure Installation: Top and bottom clips ensure stable placement.

Technical Specifications

Electrical Specifications

Voltage Range: 18-32 VDC
Maximum Current: 9.6A (400 mA per slot)
Power Consumption: Optimized for low power usage

Connectivity Details

Bus Connection: I/O Bus 1 connects to the right side of T9100 and other T9300 units
Expansion Cable: T9310 connects I/O base units to processor base unit and other rows

Mechanical Specifications

Mounting: Secured by top and bottom clips into slots on each unit
Material: Industrial-grade for durability

Dimensions and Weight

Weight: 133 g (5 oz)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
