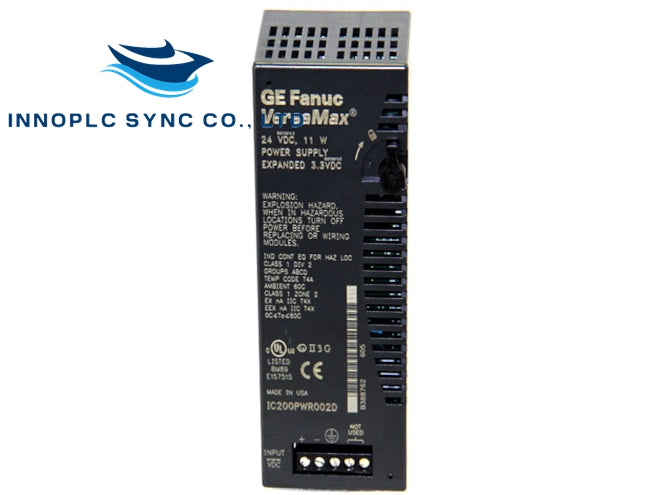

IC200PWR002 | GE VersaMax Power Supply Module
Description
IC200PWR002 Technical Specifications
Product Overview:
The IC200PWR002 is a Power Supply Module that is part of the VersaMax product family, currently under Emerson Automation and formerly produced by GE Intelligent Platforms. This module provides 24 VDC expanded power supply with multiple output voltages.
General Information
- Brand: GE Fanuc
- Series: VersaMax
- Manufacturer: GE Fanuc (Former); Emerson Automation (Current)
- Part Number: IC200PWR002
- Lifecycle Status: Active
- Product Description: Supplemental Power Supply Operation
Electrical Specifications
- Input Voltage (Nominal): 24 VDC
- Input Voltage Range: 18-30 VDC
- Input Power: 11 W
- Total Output Current: 1.5 A Maximum
- Output Voltages: 5 VDC and 3.3 VDC
- Output Current at 5 VDC: 1.5 A Maximum (minus 3.3 VDC current used)
- Output Current at 3.3 VDC: 1.0 A Maximum
- Total Output Current: 1.5 A Maximum
- 3.3V Output Current: 0.25 A Maximum
Performance Specifications
- Holdup Time: 10 ms
- Inrush Current: 20 A at 24 VDC; 25 A at 30 VDC
- Protection Features: Short circuit, overload, reverse polarity
- Isolated Power: No
Compatibility
- Compatible Modules: VersaMax CPU, NIU, I/O Modules
Physical Dimensions
- Size: 49 mm (1.93 in) x 133.4 mm (5.25 in) x 39 mm (1.54 in)
