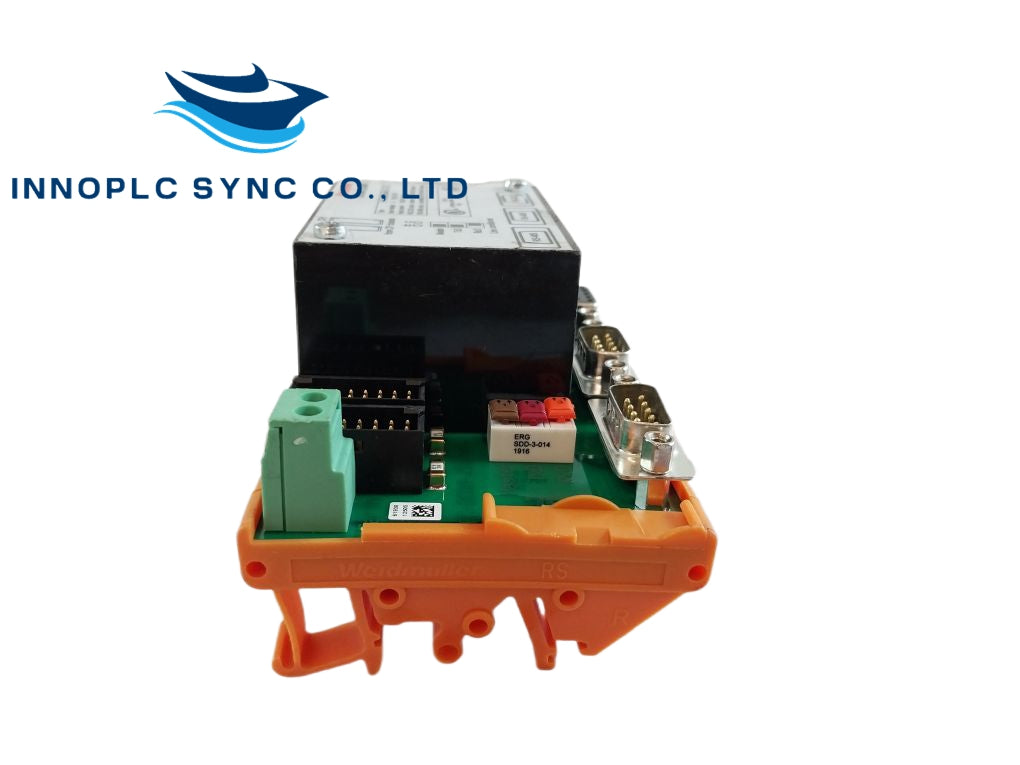

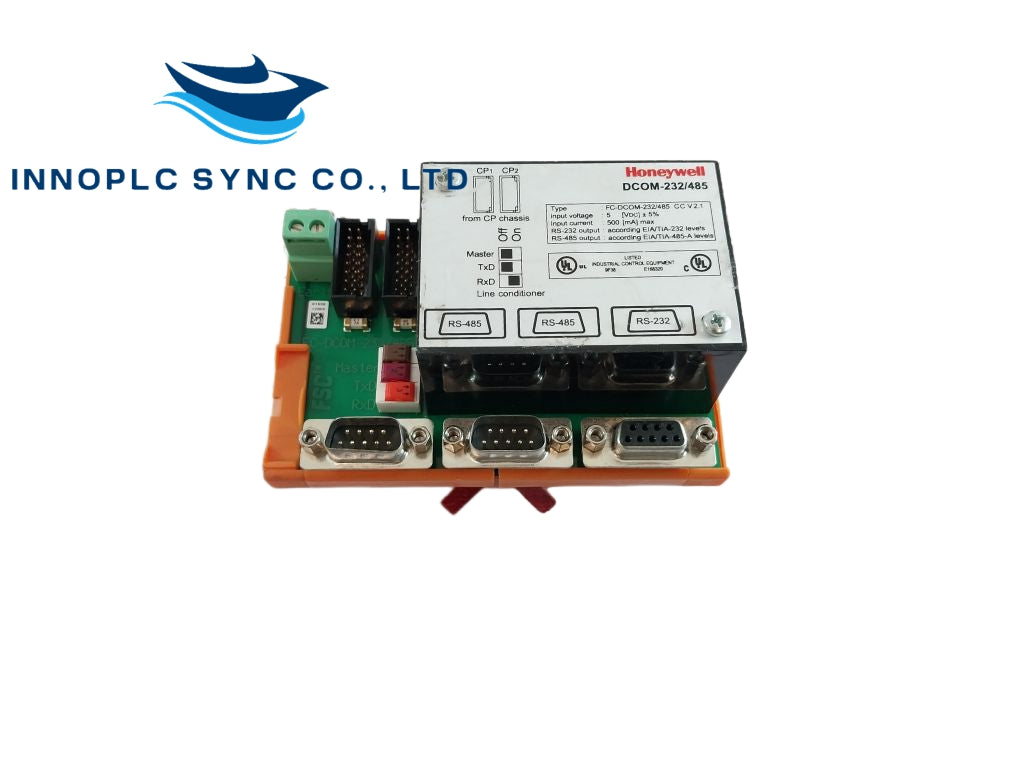

Honeywell | FC-DCOM-232/485 | Safety Manager Communication Interface

SKU: FC-DCOM-232/485

Manufacturer: Honeywell
Product No.: FC-DCOM-232/485
Condition：In stock
Product Type: RS422/485 Communication Interface
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

General Information

Type Numbers:

FS-DCOM-232/485
FC-DCOM-232/485
FC-DCOM-485

Approvals

CE
TUV
UL
FM (pending for FC-DCOM-485)

Physical Specifications

Module Dimensions:
- 110 × 70 × 61 mm (L × W × H)
- 4.33 × 2.76 × 2.40 in (L × W × H)
Terminal Dimensions:
- 6 × 57 × 47 mm (L × W × H)
- 0.24 × 2.24 × 1.85 in (L × W × H)
DIN EN Rails: TS32 / TS35 × 7.5
Used Rail Length: 117 mm (4.6 in)

Power Specifications

Input Voltage: 5 V DC ±5%
Input Current: Max 500 mA (supplied by the Control Processor(s))

Output Specifications

For FS-DCOM-232/485 and FC-DCOM-232/485:

RS232 Output: According to EIA/TIA-232 levels
RS232 Baud Rate: 0-250 kBaud
RS485/422 Output: According to EIA/TIA-485-A levels
RS485/422 Baud Rate: 0-2 MBaud (transparent, FM0, FM1, or Manchester coded)

For FC-DCOM-485:

RS485/422 Output: According to EIA/TIA-485-A levels
RS485/422 Baud Rate: 0-2 MBaud (transparent, Manchester, FM0, FM1)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
