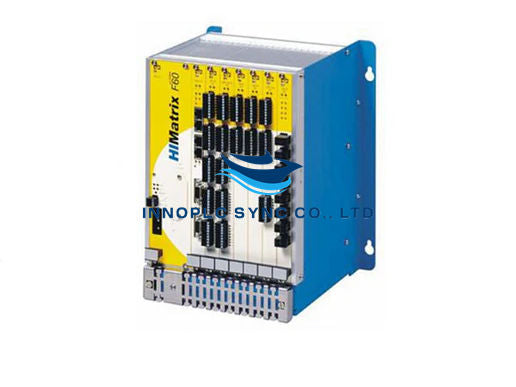

HIMA | HIMatrix | F60 AI 8 01 | Safety-Related Controller

SKU: F60 AI 801

Manufacturer: HIMA
Product No.: F60 AI 801
Condition：In stock
Product Type: Safety-Related Controller
Product Origin: Germany
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Product Description

Environmental Requirements:

Protection Class: Class III in accordance with IEC/EN 61131-2
Ambient Temperature: 0...+60 °C
Storage Temperature: -40...+85 °C
Pollution Degree: Degree II in accordance with IEC/EN 61131-2
Altitude: < 2000 m
Housing: IP20 standard
Supply Voltage: 24 VDC

Product Data:

Operating Voltage: 24 VDC, -15...+20 %, ripple ≤ 15 %, from a power supply unit with safe insulation in accordance with IEC 61131-2
Operating Data:
- 24 VDC / 380 mA
- 3.3 VDC / 150 mA
Ambient Temperature: 0...+60 °C
Storage Temperature: -40...+85 °C
Space Requirement: 6 RU, 4 HP
Weight: 240 g

Analog Inputs:

Number of Inputs: 8 unipolar or 4 bipolar (galvanically separated)
Nominal Range:
- 0...±10 V or
- 0...+20 mA (with shunt)
Operating Range:
- 0...±10.25 V or
- 0...+20.5 mA (with shunt)
Input Resistance: 1 MΩ
Digital Resolution: 12-bit
Source Resistance Input of the Input Signal: ≤ 500 Ω
Measurement Accuracy:
- At 25 °C, max. ±0.1 % of final value
- Metrological accuracy on full temperature, max. ±0.5 % of final value
Temperature Coefficient, max.: ±0.011 %/K of final value
Safety-Related Accuracy, max.: ±1 % of final value
Measured Value Refresh: Once per F60 cycle
Sampling Time: Approximately 45 µs per channel

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
