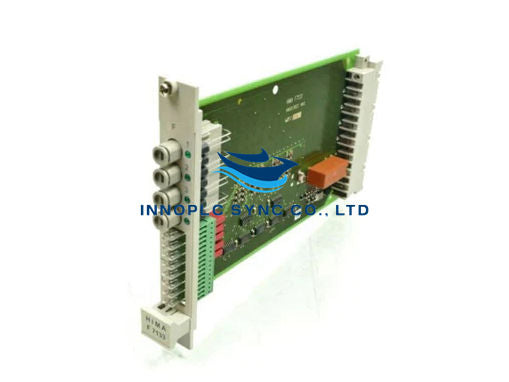

HIMA | F7133 | 4-fold Power Distribution
SKU: F7133

  • Manufacturer: HIMA

  • Product No.: F7133

  • Condition：In stock

  • Product Type: 4-fold Power Distribution

  • Product Origin: Germany

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Product Description

Key Specifications:

  • Fuses: Max. 4 A slow blow
  • Switching Time: Approximately 100 ms (relay)
  • Loadability of the Relay Contacts: 30 V/4 A (continuous load)
  • Residual Voltage in Case of Fuse Tripped: 0 V
  • Residual Current in Case of Fuse Tripped: 0 mA
  • Residual Voltage in Case of Missing Supply: Max. 3 V
  • Residual Current in Case of Missing Supply: < 1 mA
  • Space Requirement: 4 TE
  • Operating Data: 24 V DC: 60 mA

Module Functionality and Connection Details:

  • Fuse Protection: The module features 4 miniature fuses for line protection, each associated with an LED for status indication.

  • Fuse Monitoring: Fuses are monitored through an evaluation logic, and the state of each circuit is indicated by the corresponding LED.

  • Connection Points:

    • Front Side Contacts: Pins 1, 2, 3, 4, and L- connect L+ or EL+ and L- to supply the IO modules and sensor contacts.
    • Rear Terminals: Contacts d6, d10, d14, d18 serve as rear terminals for 24 V supply of one IO slot each.

  • Relay Operation: If all fuses are in order, the relay contact d22/z24 is closed. In case of an unequipped or faulty fuse, the relay will be de-energized.

  • LED Indication of Faults:

    • Supply Voltage for Path: LED on
    • Fuse in Order: LED off
    • Faulty/Missing Fuse: LED is flashing

Dimensions:

  • Size: 21*13*3cm
  • Weight: 0.2kg
