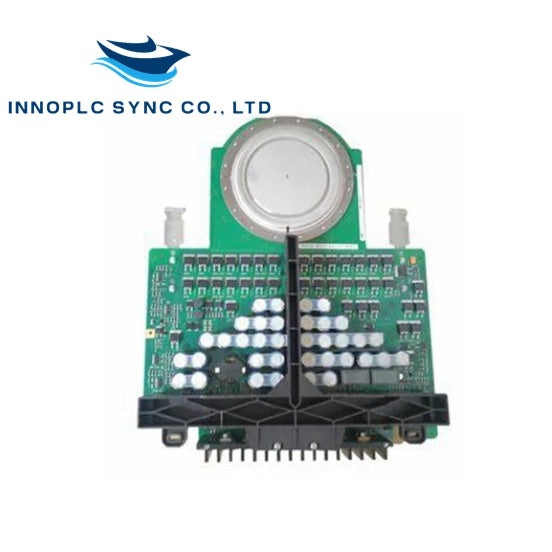

GV C750 BE101 3BHE009681R0101 | ABB | IGBT/IGCT Module

SKU: GV C750 BE101 3BHE009681R0101

Manufacturer: ABB
Product No.: GV C750 BE101 3BHE009681R0101
Condition：In stock
Product Type: IGBT/IGCT Module
Product Origin: Sweden
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

DESCRIPTION

Type Designation:
NMG 0450CC04

Application:

Diesel/Gas Engine Industrial Application

Series Industrial Application

Electrical and Mechanical Ratings:

Rated Power Factor: 0.8

Insulation Class: H

Temperature Rise: H

Ambient Temperature: 40°C

Altitude Over Sea Level: ≤ 1000 m

Cooling/Protection: IC0A1/IP23

Mounting Arrangement and Physical Characteristics:

Weight:

IM 2105: 4365 kg

IM 1001: 4395 kg

Inertia:

IM 2105: 47.6 kgm²

IM 1001: 44.6 kgm²

Direction of Rotation: CW (Facing Drive End)

Maximum Overspeed: 2250 rpm

Winding Details:

Winding Pitch: Two Thirds (2/3)

Stator Winding Resistance: 0.0008 Ω per phase at 20°C (series star connection)

Rotor Winding Resistance: 1.108 Ω at 20°C

Ex. Stator Winding Resistance: 22.873 Ω at 20°C

Ex. Rotor Winding Resistance: 0.03148 Ω at 20°C

Total Harmonic Distortion (THD):

THD < 3.5% at no load operation or rated linear balanced load

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
