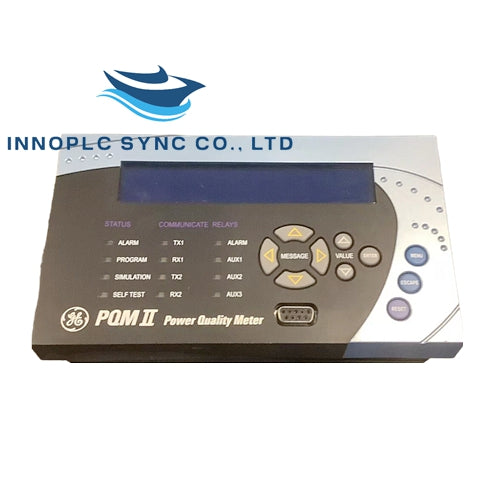

General Electric | PQMII-C-A | Power Quality Meter

SKU: PQMII-C-A

Manufacturer: GE Fanuc
Product No.: PQMII-C-A
Condition：In stock
Product Type: Power Quality Meter
Product Origin: USA
Payment:T/T, Western Union
Weight: 2500g
Shipping port: Xiamen
Warranty: 12 months

Overview

The General Electric PQMII-C-A Power Quality Meter offers comprehensive measurement capabilities for electrical parameters. It provides precise real-time monitoring and supports a wide range of inputs and outputs, ideal for industrial environments.

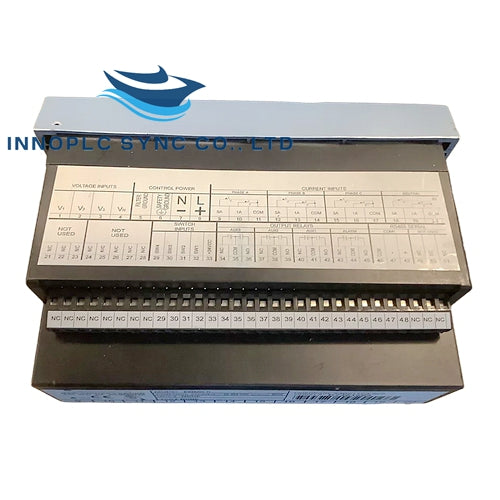

Input/Output Specifications

Current Inputs

Conversion: True RMS, 64 samples/cycle
CT Input: 1 A and 5 A secondary
Burden: 0.2 VA
Overload: 20 × CT for 1 sec; 100 × CT for 0.2 sec
Range: 1 to 150% of CT primary
Frequency: Up to 32nd harmonic
Accuracy: ±0.2% of full scale at <1.20 x CT

Voltage Inputs

Conversion: True RMS, 64 samples/cycle
VT Ratio: 1:1 to 3500:1
Input Range: 40 to 600 V AC
Accuracy: ±0.2% of full scale
Frequency: Up to 32nd harmonic

Switch Inputs

Type: Dry contacts
Resistance: 1000 Ω max ON resistance
Output: 24 V DC at 2 mA (pulsed)
Duration: Minimum 100 ms

Analog Outputs

0–1 mA: Max load: 2400 Ω, accuracy ±1%
4–20 mA: Max load: 600 Ω, accuracy ±1%

Pulse Outputs

Parameters: kWh, kVAh, kvarh, etc.
Pulse Width: 100 to 2000 ms
Accuracy: ±10 ms

Pulse Inputs

Max Inputs: 4
Min Pulse Width: 150 ms

Trace Memory Trigger

Input: 2 data cycles (current, voltage)
Time Delay: 0 to 30 cycles
Trigger Level Pickup Accuracy:
- Overcurrent: ±2%
- Overvoltage: ±2%
- Undervoltage: ±3%

Sampling Modes

Metered Values: 64 samples per cycle, all inputs
Trace Memory: 16 samples per cycle, continuous
Harmonic Spectrum: 256 samples per cycle, 1 input at a time
Voltage Disturbance Recorder: 8 samples per half-cycle, 0.5 to 1 minute duration

Output Relays

Make/Carry: 5 A continuous, 30 A for 0.1 sec
Break: 5 A at 30 V DC, 0.5 A at 125 V DC

Measured Values Accuracy

Voltage: ±0.2% of full scale
Current: ±0.2% of full scale
Real Power (kW): ±0.4%
Reactive Power (kvar): ±0.4%
Power Factor: ±1%
Frequency: ±0.02 Hz

Measured Values Range

Voltage: 20 to 100% of VT
Current: 1 to 150% of CT
kW/kVA: 0 to ±999,999.99
kWh/kVAh: 232 kWh, 232 kVAh

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
