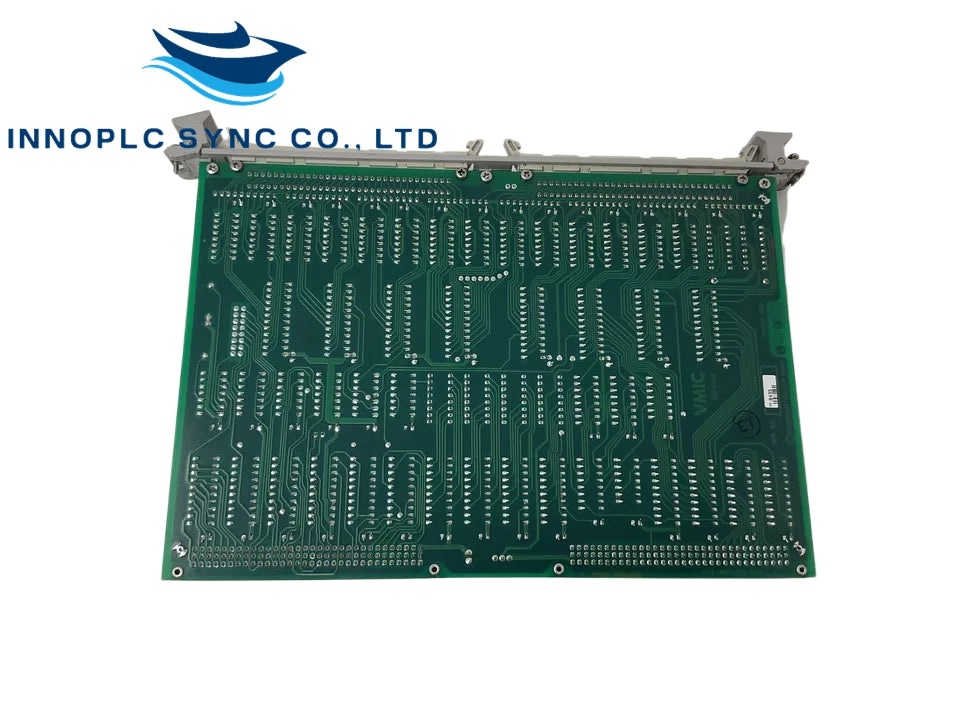

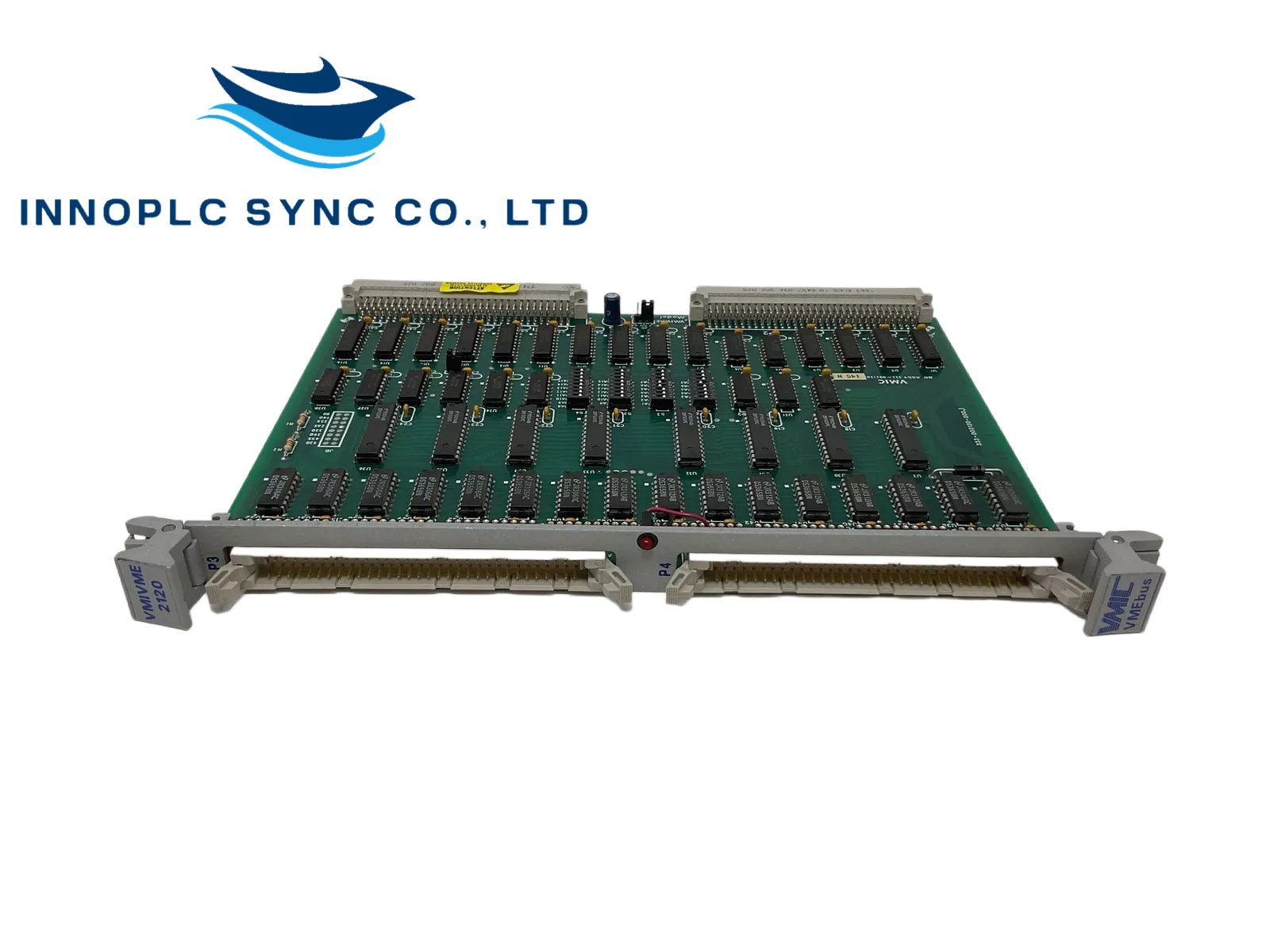

GE | VMIVME-2120-215000| DIN Rail Transition Module

SKU: VMIVME-2120-215000

Manufacturer: GE Fanuc
Product No.: VMIVME-2120-215000
Condition：In stock
Product Type: DIN Rail Transition Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2720g
Shipping port: Xiamen
Warranty: 12 months

VMIACC-BT10 Specifications

Overview

The VMIVME-2120 is aDIN Rail Transition Module designed for Euro-DIN C 64-Pin, C 96-Pin, and C/2 32-Pin Connectors. It interconnects GE's I/O boards with field wiring, providing a high-density solution that reduces cabinet space.

Features

DIN Rail Mount: 15 mm or 35 mm
Interconnects: GE's I/O boards with field wiring
Terminal Blocks: Easy-to-use lift clamp design
High-Density Design: Reduces cabinet space
Wire Acceptance: 24 to 12 AWG
Standard DIN Rails: Fits standard DIN rails
Compliance: IEC 664/IEC 664A/DIN VDE; DIN VDE 0160 (line parts)

Electrical Data

Maximum Current: 1 A per terminal
Maximum Voltage: 125 VAC

Terminal Block Materials

Clamp: Steel, galvanized, and chromated
Wire Protection: CuZn, brass, prenickel, and 5 μm tin-plated
Screw: Steel, galvanized, and chromated

Physical/Environmental Specifications

Dimensions:
- Height: 3.03 in.
- Width: 6.65 in. (C 96), 5.321 in. (C 64 and C/2 32)
- Depth: 2.73 in. (mounted)
Screw: M3
Maximum Wire Diameter:
- Solid Wire: 0.2 to 4 mm² (12 to 22 AWG)
- Fine Stranded Wire: 0.2 to 2.5 mm² (12 to 24 AWG)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
