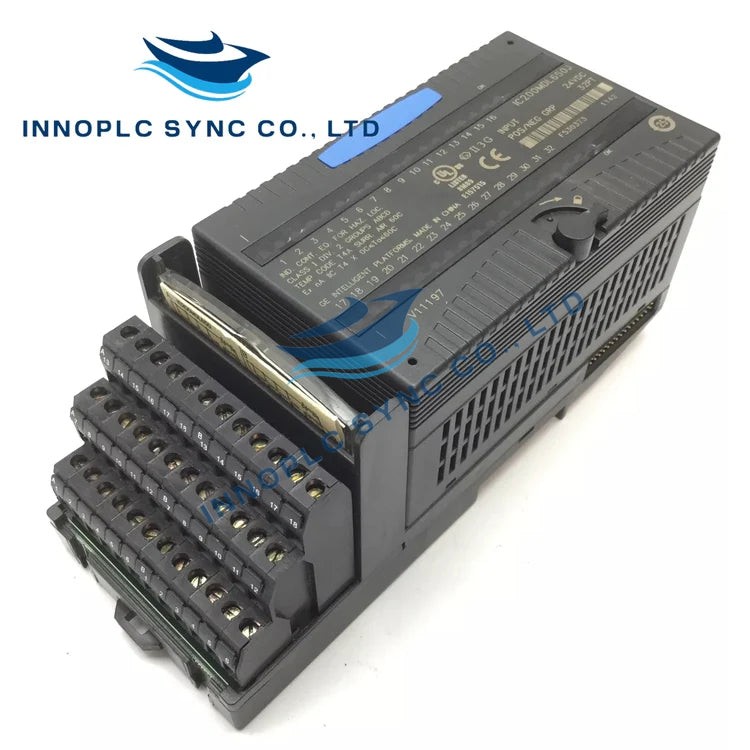

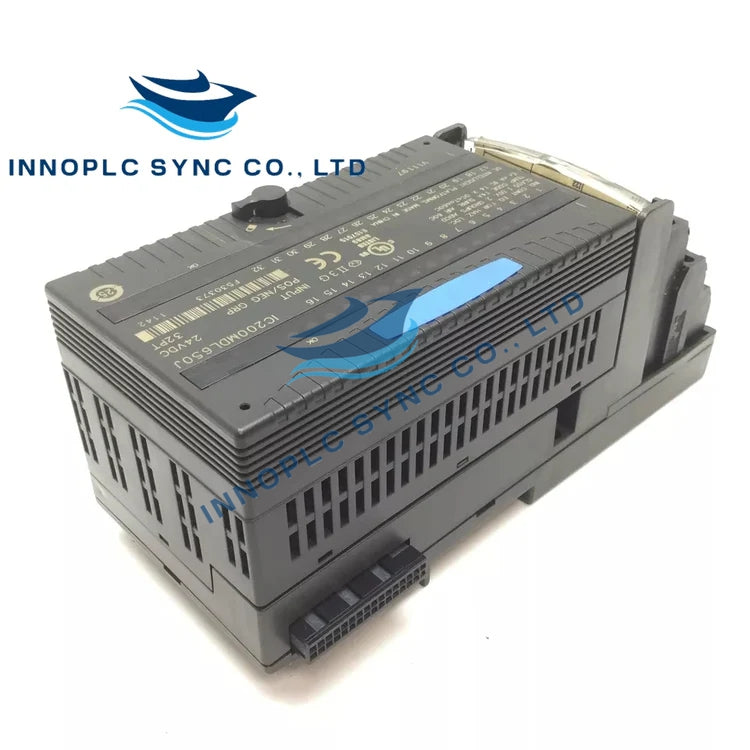

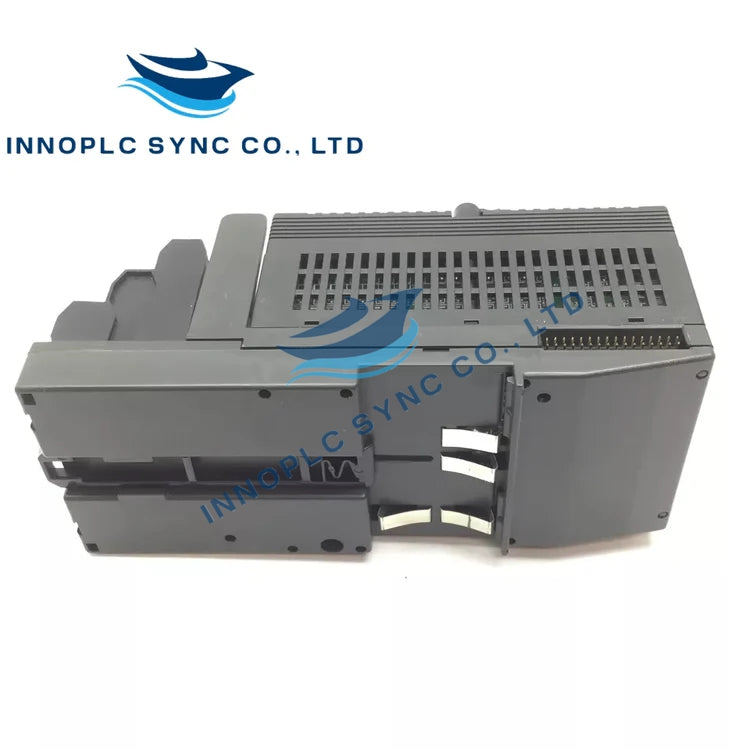

GE | IC200MDL750| 32-Point Discrete Output Module

SKU: IC200MDL750

Manufacturer: GE Fanuc
Product No.: IC200MDL750
Condition：In stock
Product Type: 32-Point Discrete Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

The GE IC200MDL750 module is a powerful and reliable output module for GE Series One PLC systems. It can activate or deactivate up to 32 external devices, making it ideal for controlling lights, motors, valves, and other digital outputs in industrial automation setups.

Features

Powerful and Reliable: VersaMax controllers provide robust operation.
Modular and High-Density: VersaMax I/O is versatile, compact, and affordable, with a scalable architecture and ease of use.
Media Redundancy and Hot Swap Capability: Increase system uptime.
Cost-Effective: Designed to minimize costs while offering a wide range of I/O expansion modules and communication options.

Technical Specifications

Points: 32
Number of Channels: Thirty-Two (32)
Current per Point: 0.5 Amperes
Output Voltage Range: +10.2 to +30VDC
Number of Input Groups: Two (2)
Backplane Current: 90 milliamperes
Output Voltage, Nominal: 12 / 24VDC
Number of Channels per Group: Sixteen (16)
Environment: Class I Division 2
Output Current per Channel, Min.: 0.5 Amperes
Output Signal, Nominal: 12/24 VDC
Temperature: 0-30 degrees Celsius
Inrush Current, Max: 2 Amperes
Output Signal, Range: 10.2-30 VDC
Mounting: DIN Rail
Response Time, ON Transition: 0.2 ms
Load Current per Point: 0.5 A per point
Weight: 0.90 Kgs
Response Time, OFF Transition: 1.0 ms
Inrush Current: 2.0 A inrush maximum for 100 ms
LED Indicators: Individual channel LED indicators; OK LED; FLD PWR LED
External Power Supply: 10.2-30 VDC, 12/24 VDC nominal
Internal Fuses: None
Current Draw: 90 mA, maximum
Dimensions: 110 mm (4.3 in) x 66.8 mm (2.63 in) x 50 mm (1.956 in)
Isolation: 250VAC continuous; 1500VAC for 1 minute

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
