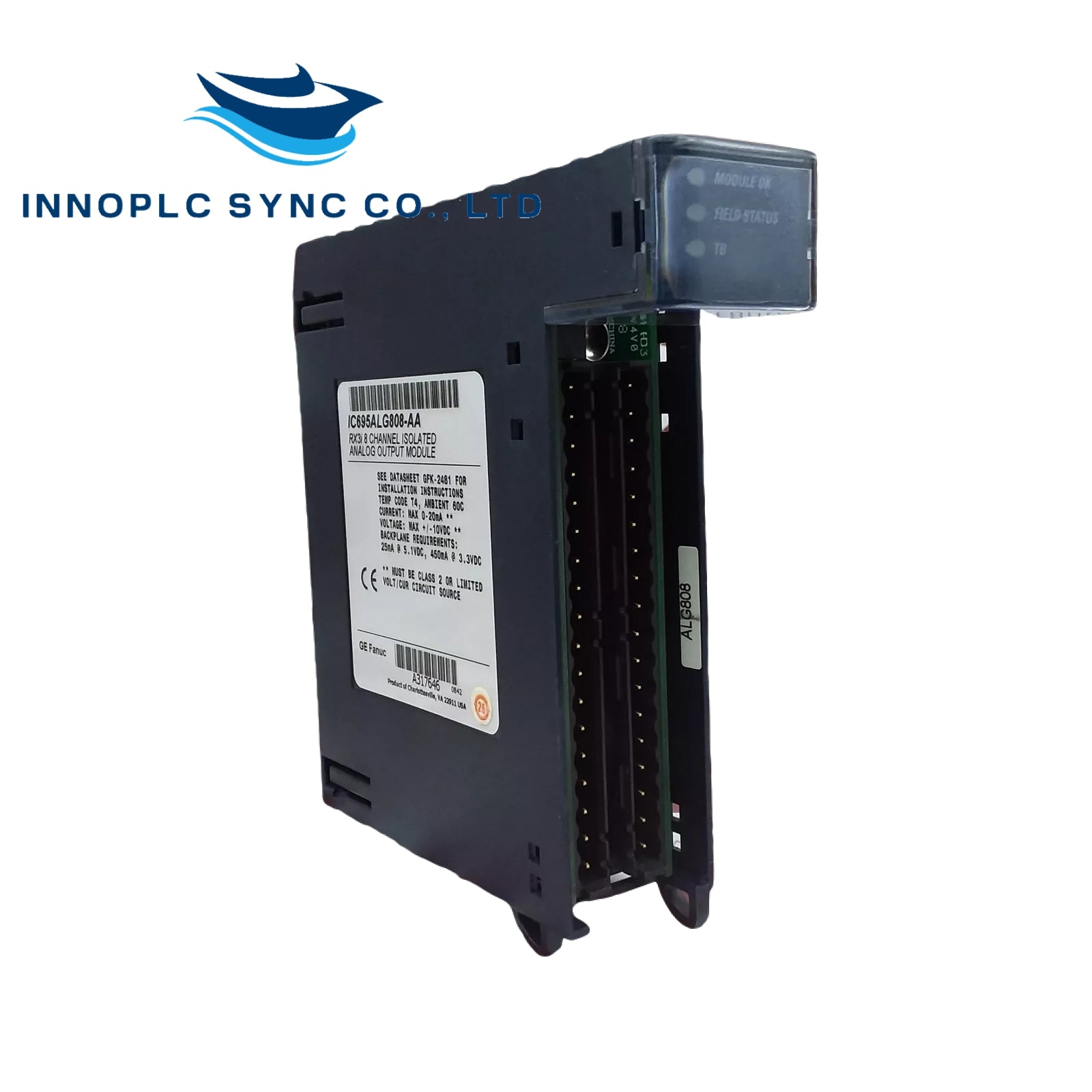

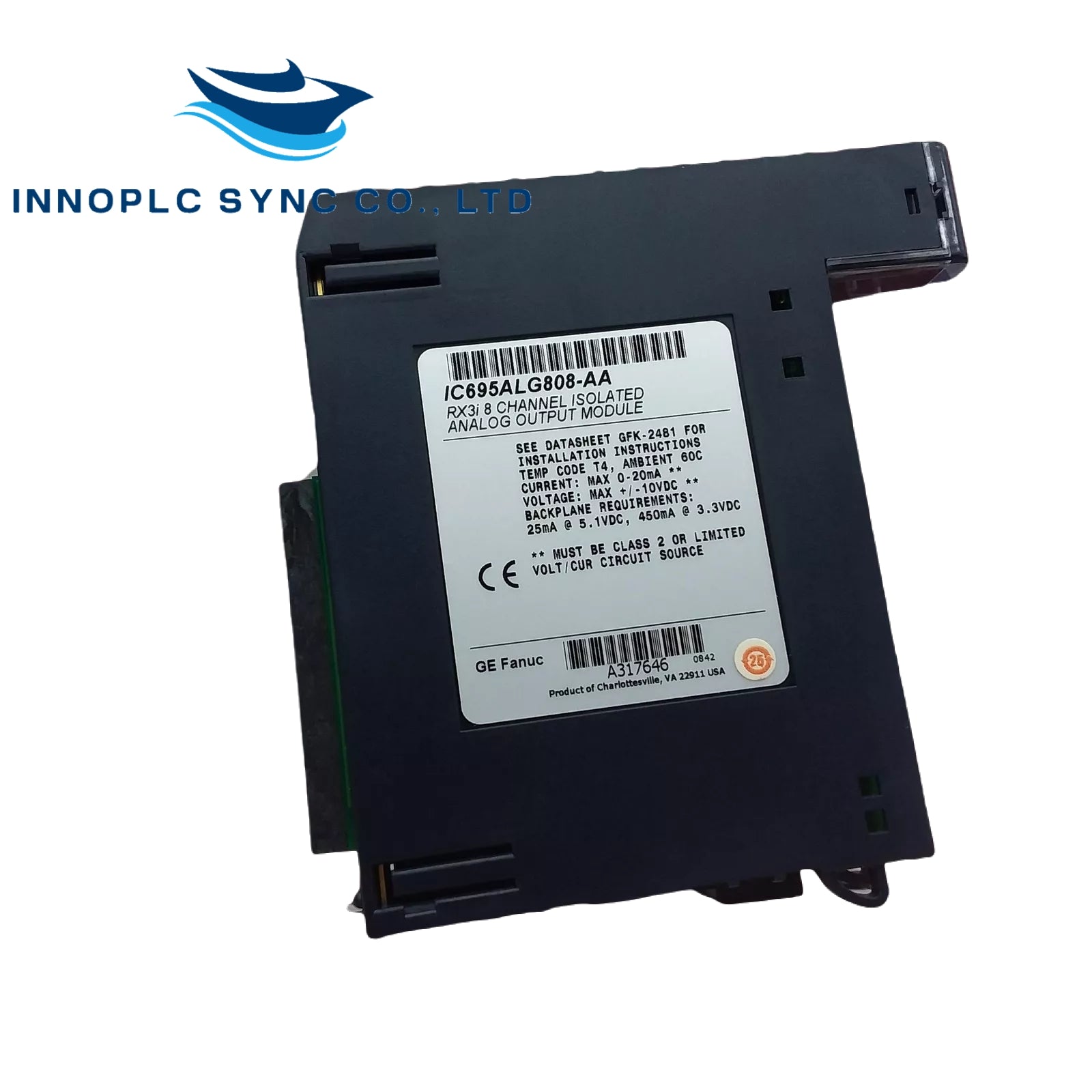

GE Fanuc | PACSystems RX3i | IC695ALG808 | Analog Output Module

SKU: IC695ALG808

Manufacturer: GE Fanuc
Product No.: IC695ALG808
Condition：In stock
Product Type: Analog I/O Modules (Output)
Product Origin: USA
Payment:T/T, Western Union
Weight: 2720g
Shipping port: Xiamen
Warranty: 12 months

Module Type: Analog Output with Channel-to-Channel Isolation
Number of Slots Module Occupies on Backplane: 1
Range:
- Current: 0 to 20 mA, 4 to 20 mA
- Voltage: ±10 V, 0 to 10 V
Number of Channels: 8
Resolution:
- ±10 V: 15.9 bits minimum
- 0 to 10 V: 14.9 bits minimum
- 0 to 20 mA: 15.9 bits minimum
- 4 to 20 mA: 15.6 bits minimum
Maximum Output Load:
- Current: 1350 ohm maximum resistance, 10 µH max inductance
- Voltage: 2 kΩ minimum resistance, 1 µF max capacitance
Internal Power Used: 450 mA @ 3.3 V Maximum

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
