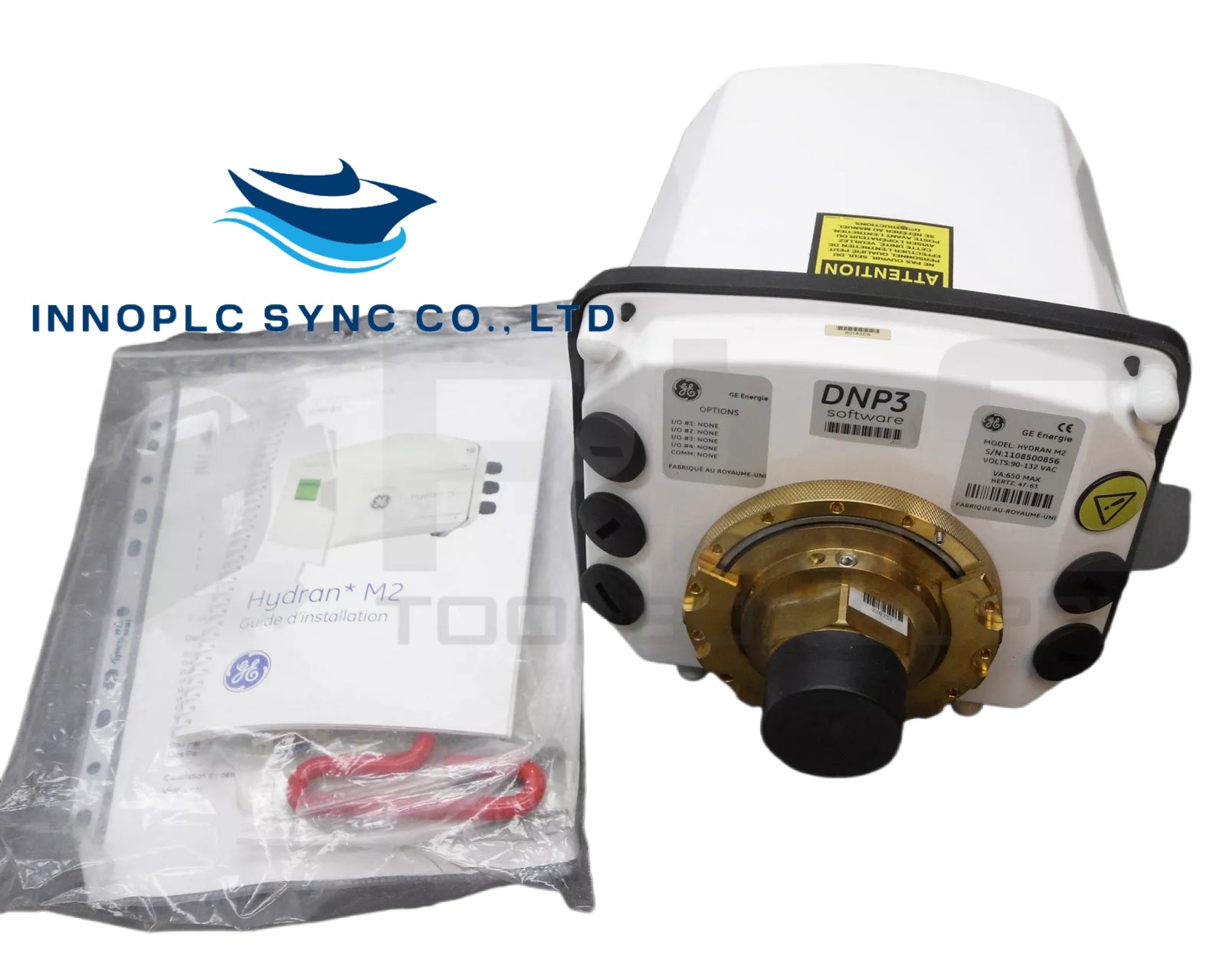

GE Fanuc Multilin | HYDRAN M2|Transformer Models

SKU: HYDRAN M2

Manufacturer: GE Fanuc
Product No.: HYDRAN M2
Condition：In stock
Product Type: Transformer Models
Product Origin: USA
Payment:T/T, Western Union
Weight: 2500g
Shipping port: Xiamen
Warranty: 12 months

Transformer Models

Model: GEA-12934(E)
Standards: IEEE standards, field experience
Outputs:
- Winding hot spot temperature
- Moisture level in paper
- Moisture bubbling temperature
- Insulation ageing
- Overloading capacity
- Cooling efficiency
- OLTC temperature differential

Sensors

Gas Sensor:
- Type: Fuel cell
- Range: 0-2000 ppm (H₂ equivalent)
- Accuracy: ± 10% of reading ± 25 ppm
- Repeatability: ± 5% of reading or ± 5 ppm
- Sensitivity:
  - H₂: 100%
  - CO: 15 ± 4%
  - C₂H₂: 8 ± 2%
  - C₂H₄: 1.5 ± 0.5%
- Response Time: 10 minutes (90% of step change)
Moisture Sensor:
- Type: Thin film capacitive
- Range: 0-100% RH
- Accuracy: ± 2% RH
- Repeatability: ± 2% RH

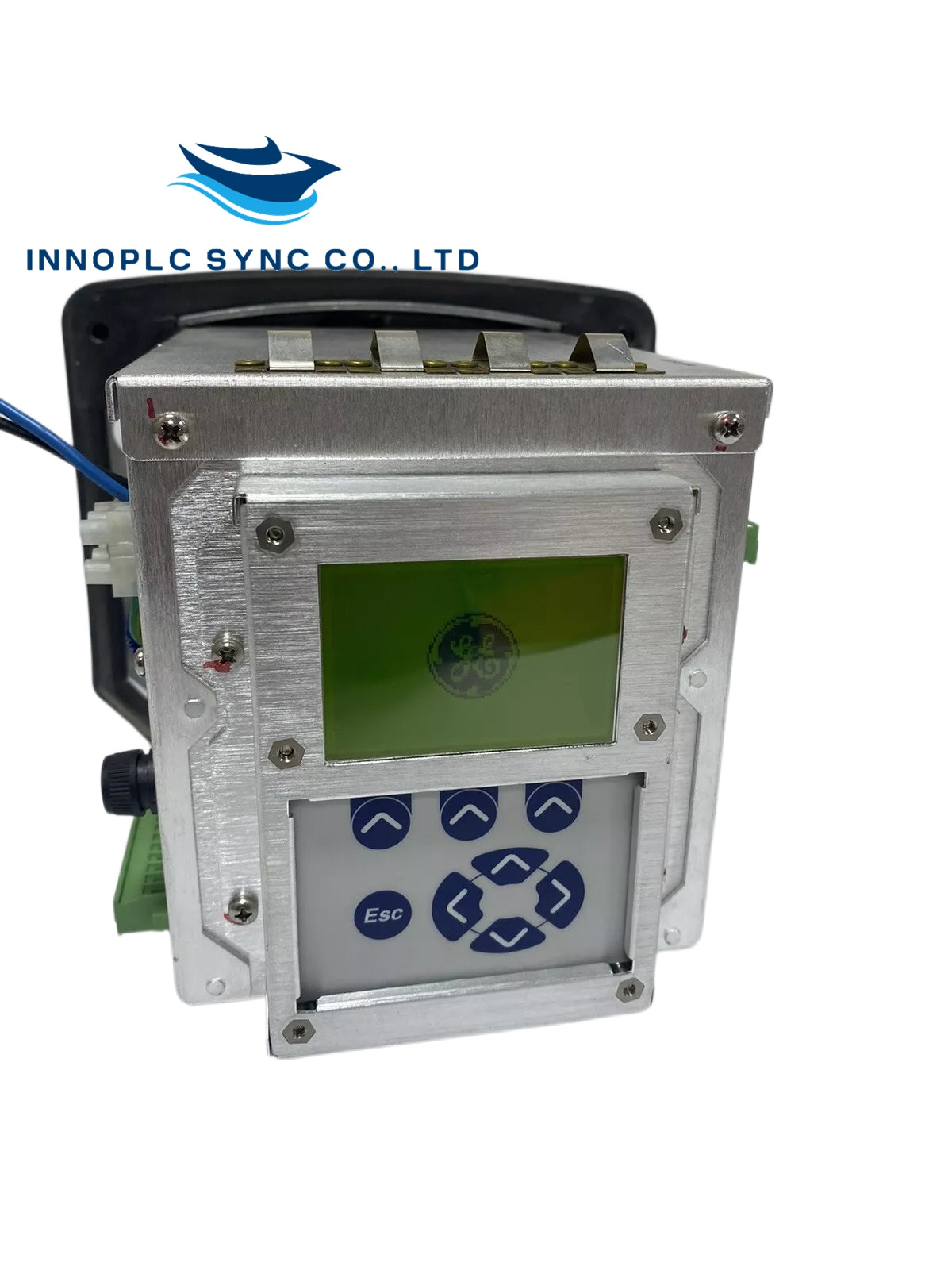

Display

Type: Backlit LCD, 128 x 64 pixels
Control: Keypad for setup and alarm acknowledgment

Digital Communications

Ports: RS-232 (DB-9), RS-485 (terminal block), isolated to 2000Vac RMS
Protocols: Hydran, Modbus, DNP 3.0

Alarms

Types: 5 alarms (Gas and Moisture Alert, Gas and Moisture Alarm, Service Alarm)
Relays: 5 dry contact relays (SPDT), 3A@250Vac, 3A@30Vdc

Environment

Temperature: -40°C to +55°C
Humidity: 0-95% RH, non-condensing
Oil Temperature: -40°C to +105°C
Oil Pressure: 0-700KPa
Enclosure Rating: NEMA Type 4X, IP66

Power Requirements

Supply: 90–132 Vac or 180–264 Vac, 47–63 Hz, 475VA max

Mechanical

Dimensions: 315mm x 219mm x 196mm
Mounting: 1.5” NPT male thread, optional adapters for 1” or 2” female NPT
Weight: Installed: 7.5Kg, Shipping: 9.0Kg

Options

Heat Sink Adapter: For ambient temp > 40°C or oil temp > 90°C
Valve Adapters: 1” to 1.5”, 2” to 1.5”
Additional Cards: Up to 4 cards for analogue/digital inputs/outputs
Communication: PSTN modem, Ethernet (RJ-45 or ST)
Sensors: Oil temperature, split core load CT, ambient temperature
Display Repeater: H201Ci-1
